Description
Uncompromised Power Protection for Enterprise & Critical Systems

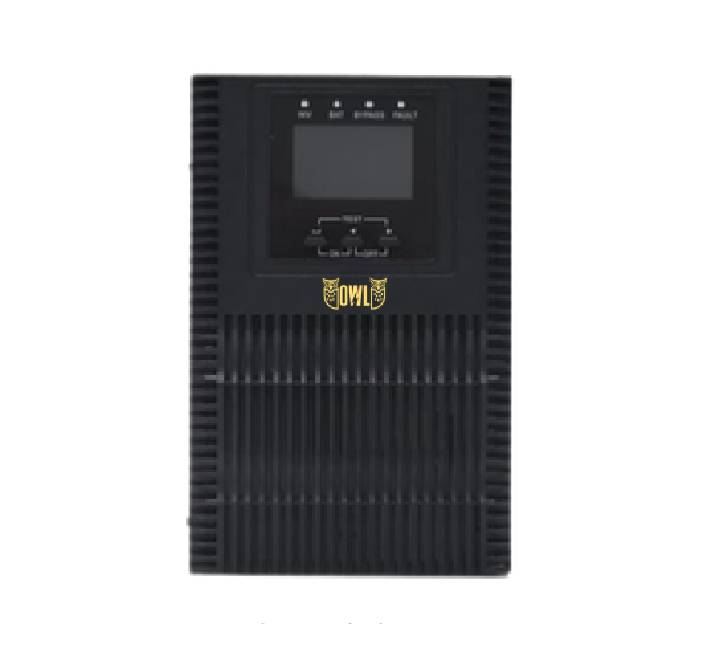

The OWL T2K Tower Type High-Frequency Online UPS (2000VA / 2kVA) delivers industrial-grade power protection through advanced true double-conversion technology. Engineered specifically for mission-critical setups—including server rooms, sensitive medical machinery, network closets, and high-end workstations—this high-frequency online UPS completely isolates your equipment from utility grid fluctuations, power surges, sags, and unexpected blackouts with zero transfer time.
Key Features
- True Double-Conversion Topology: Continuously converts incoming AC power into clean DC power, then synthesizes it back into flawless AC power, shielding sensitive electronics from all utility line noise.
- Zero Transfer Time (0ms): Features an instantaneous switchover from utility grid power to internal battery reserve, preventing server reboots, data loss, or hardware interruptions.
- Smart LCD Display Interface: Real-time tracking dashboard displays vital system metrics including load percentage, battery capacity runtime, input/output voltage levels, and operational fault alerts.
- High-Frequency Pure Sine Wave: Outputs a perfect, smooth wave pattern that guarantees total operational compatibility with active PFC power supplies and sensitive linear loads.
- Intelligent Battery Management: Utilizes an optimized, multi-stage charging algorithm that significantly extends internal battery lifespan while shortening recharge intervals.
- True online double-conversion technology
Output power factor is 1, kVA/kW
High efficiency, AC to AC 95%
Auto fan speed adjustment
Wide input voltage range, 110Vac to 300Vac
Emergency power off function (EPO)
Generator compatible
LCD display & LED indicator
Battery cold start
ECO mode operation for energy saving (ECO)
Digital charging design, Adjustable from 1-4A
Smart RS232/USB port with monitoring software (optional)
Intelligent slot, support optional SNMP / RS485 / AS401 card
DSP (Digital Signal Processing) technology guarantees high performance
Advanced PFC (Power Factor Correction) technology, input PF>99%
-
Input
RatedVoltage: 208/220/230/240Vac,L+N+PE
VoltageRange: 110~300Vac
FrequencyRange: 50/60±6Hz
PowerFactor: ≥0.99
THDi: ≤4%(linear load);≤5%(non-linear load)
-
Output
RatedVoltage: 208/220/230/240Vac,L+N+PE
Voltage Regulation: ±1%
Frequency: 50/60Hz±0.1%
-
Efficiency
Line Mode: 95.5%
Battery Mode: 91.5%
-
Battery
Type: Sealed lead acid maintenance free
NominalVoltage: 48/72VDC
BatteryNumber: 9Ah*4pcs
ChargeCurrent: 1A(1-4A)
Charging Mode: Two/Three-period charging -
Physical
Dimensions(W*D*H)mm: 145*412*224
Weight(kg): 16.3
Technical Specifications
| Specification Category | Product Details |
|---|---|
| Model & Series | OWL T2K (Tower Type High-Frequency Series) |
| Power Capacity | 2000VA / 1600W (2kVA) |
| UPS Topology | True Online Double-Conversion (High Frequency) |
| Input Voltage Range | 110V – 300V AC (Wide input tolerance matrix) |
| Output Waveform | Pure Sine Wave Output |
| Transfer Time | 0 ms (Mains Mode to Battery Mode) |
| Input/Output Frequency | 50Hz / 60Hz (Auto-sensing adaptation) |
| Battery Specifications | Internal Valve Regulated Lead-Acid (VRLA), Maintenance-Free Sealed Batteries |
| Protection Architecture | Lightning & Surge Suppression, Short Circuit, Overload, Battery Overcharge Protection |
| Communication Ports | Smart RS232 / USB Slot (Supports monitoring software automation) |
| Cooling System | Smart Intelligent Forced-Air Fan Cooling |
