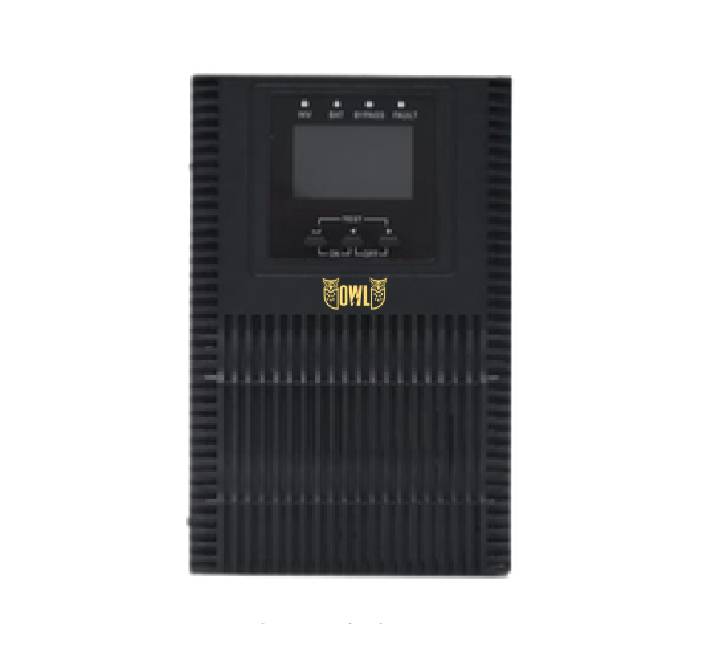

OWL T1K Tower-Type High Frequency Online UPS

OWL T1K Tower-Type High Frequency Online UPS – Absolute Power Protection for Critical Infrastructure

The OWL T1K Tower-Type High Frequency Online UPS (1kVA / 900W) is a professional-grade, double-conversion backup power solution engineered to counter severe grid fluctuations, voltage spikes, brownouts, and sudden blackouts. Unlike standard offline or line-interactive backup systems, this true online UPS feeds power through a continuous double-conversion loop, guaranteeing a flawless, zero-millisecond transfer time to battery power.

Designed in a space-saving tower form factor, the OWL T1K Standard Model comes fully equipped with built-in internal batteries (Standard Type), making it an immediate, reliable out-of-the-box system to preserve the uptime of high-end business servers, delicate networking hardware, medical apparatus, and mission-critical office workstations.

Key Features & Highlights

• True Online Double-Conversion Technology: Fully isolates your sensitive devices from utility raw power anomalies, delivering a clean, stable pure sine wave output constantly.
• Zero-Millisecond (0ms) Transfer Time: Instantaneous switching from mains utility grid to battery backup means your critical servers and PCs will never experience data loss, voltage drops, or sudden reboots.
• 1000VA / 900W Robust Capacity: Provides a high 0.9 output power factor, ensuring more usable wattage capacity to handle modern enterprise-grade computers, network switches, and security rigs.
• Standard Model with Built-In Battery: Features internal pre-installed, maintenance-free sealed lead-acid (VRLA) batteries for instant, hassle-free plug-and-play operation.
• Intelligent High-Frequency Charging: Advanced micro-processing controls maximize utility energy efficiency while maintaining battery health and accelerating standard recharge cycles.
• Comprehensive LCD Status Panel: Smart front-facing digital display allows real-time viewing of input/output load levels, current battery runtime capacity, voltage levels, and environmental error alerts.
• True online double-conversion technology

• Output power factor is 1, kVA/kW

• High efficiency, AC to AC 95%

• Auto fan speed adjustment

• Wide input voltage range, 110Vac to 300Vac

• Emergency power off function (EPO)

• Generator compatible

• LCD display & LED indicator

• Battery cold start

• ECO mode operation for energy saving (ECO)

• Digital charging design, Adjustable from 1-4A

• Smart RS232/USB port with monitoring software (optional)

• Intelligent slot, support optional SNMP / RS485 / AS401 card

• DSP (Digital Signal Processing) technology guarantees high performance

• Advanced PFC (Power Factor Correction) technology, input PF>99%
• Input
  RatedVoltage: 208/220/230/240Vac,L+N+PE
  VoltageRange: 110~300Vac
  FrequencyRange: 50/60±6Hz
  PowerFactor: ≥0.99
  THDi: ≤4%(linear load);≤5%(non-linear load)

• Output
  RatedVoltage: 208/220/230/240Vac,L+N+PE
  Voltage Regulation: ±1%
  Frequency: 50/60Hz±0.1%

• Efficiency
  Line Mode: 94.5%
  Battery Mode: 88.5%

• Battery
  Type: Sealed lead acid maintenance free
  NominalVoltage: 24/36VDC
  BatteryNumber: 9Ah*2pcs
  ChargeCurrent: 1A
  Charging Mode: Two/Three-period charging


Technical Specifications
