Description

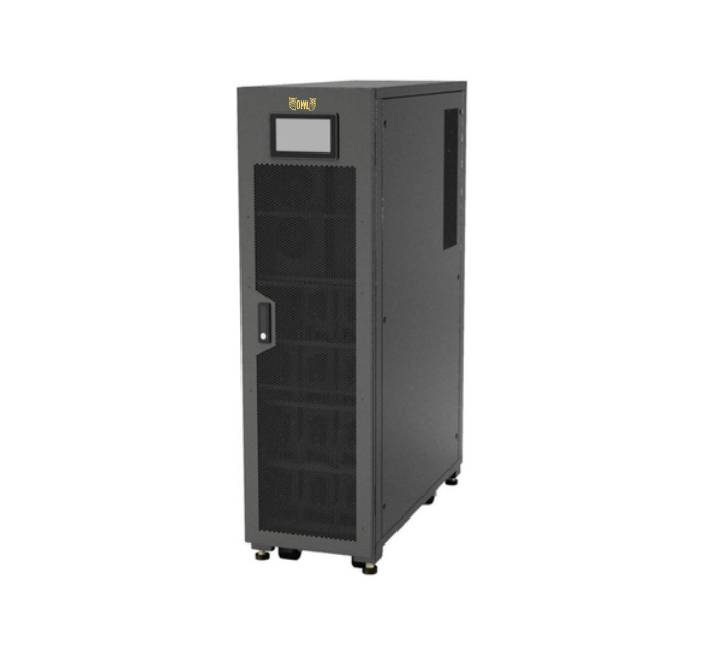

Ensure maximum availability and enterprise-grade power stability for high-demand data centers, medical facilities, and large-scale industrial applications with the OWL HU3340 Tower Type High-Frequency Online UPS (3-Phase, 40kVA). Engineered with true double-conversion online technology, this heavy-duty system completely isolates your sensitive equipment from utility power disturbances, delivering clean, continuous, and perfectly regulated pure sine-wave output.
Key Features
- True Double-Conversion Topology: Continuously converts incoming AC power to DC and back to AC, ensuring zero transfer time and total immunity to grid fluctuations.
- High-Capacity 3-Phase Power: Designed to handle heavy 3-phase input and output distributions with superior load balancing and efficiency.
- High Output Power Factor: Delivers exceptional active power delivery to support modern, high-density IT hardware loads seamlessly.
- Intelligent Battery Management: Advanced charging controls monitor battery health actively to extend overall operational life and prevent degradation.
- Comprehensive LCD Control Interface: Provides instant visual tracking of load percentages, input/output metrics, and fault alerts.
- Advanced Remote Management: Built with intelligent expansion slots to accommodate network management cards for automated monitoring and shutdown protocols.
Technical Specifications
| Feature | Specification |
|---|---|
| Product Model | OWL HU3340 |
| Capacity | 40 kVA / 40 kW |
| Phase Configuration | 3-Phase In / 3-Phase Out (3Ph/3Ph) |
| Topology Type | High-Frequency Online Double-Conversion |
| Input Voltage Range | 380V / 400V / 415V AC (Nominal) |
| Output Voltage | 380V / 400V / 415V AC (Configurable) |
| Waveform | Pure Sine Wave |
| Form Factor | Tower Type (Floor-standing heavy-duty cabinet) |
| User Interface | Multi-function LCD Status Panel |
