Description

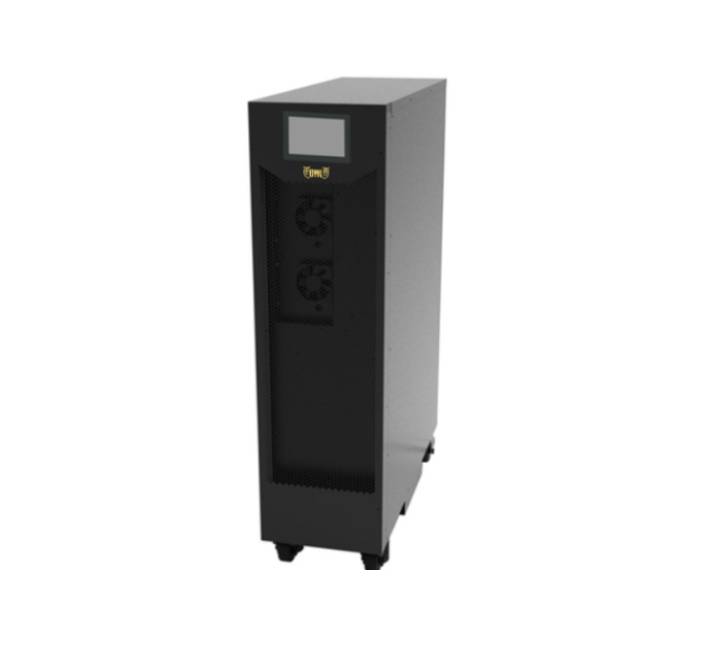

Safeguard your mission-critical infrastructure, servers, and industrial equipment against power disruptions with the OWL HU3320 Tower Type High-Frequency Online UPS (3-Phase, 20kVA). Built with advanced true double-conversion online technology, this heavy-duty power system delivers clean, continuous, and regulated sine-wave power, eliminating surges, sags, and frequency shifts completely.
Key Features
- True Double-Conversion Topology: Isolates connected loads entirely from raw utility power anomalies, ensuring zero transfer time during outages.
- High-Frequency 3-Phase Power: Provides robust, balanced 3-phase input and output capacity designed for heavy commercial and IT environments.
- High Output Power Factor: Delivers maximum active power capacity to support modern high-density server configurations efficiently.
- Intelligent Battery Management: Optimizes battery performance, extends lifecycle, and provides predictive charging controls.
- Comprehensive LCD Display Panel: Real-time monitoring of system status, load levels, battery capacity, and operational parameters at a glance.
- Advanced Communications: Includes intelligent slot options and communication ports for remote network monitoring and automated shutdown management.
Technical Specifications
| Feature | Specification |
|---|---|
| Product Model | OWL HU3320 |
| Capacity | 20 kVA / 20 kW |
| Phase Configuration | 3-Phase In / 3-Phase Out (3Ph/3Ph) |
| Topology Type | High-Frequency Online Double-Conversion |
| Input Voltage Range | 380V / 400V / 415V AC (Nominal) |
| Output Voltage | 380V / 400V / 415V AC (Configurable) |
| Waveform Type | Pure Sine Wave |
| Form Factor | Tower Type (Floor-standing) |
| Display & Interface | LCD Status Panel with Control Keys |
