Description
Ensure high-speed, reliable data transmission across your network infrastructure with the Nikomax NMF-PC2M3C2-LCU-LCU-005 Fiber Optic Cord (5M). Built for enterprise environments, data centers, and telecommunication networks, this OM3 multimode duplex patch cord delivers exceptional performance and low insertion loss.
Key Features
- High-Speed OM3 Performance: 50/125 Multimode fiber class optimized for high-bandwidth data applications and short-to-medium-range connections.
- Precision LC/UPC Connectors: Terminated on both ends with reliable Duplex LC/UPC connectors featuring clear polarity identification.
- Safe LSZH Outer Jacket: Low Smoke Zero Halogen (LSZH) jacket material ensures minimal smoke emission and zero toxic halogens in case of fire.
- Low Signal Loss: Designed for superior optical integrity with insertion loss ≤ 0.3 dB and return loss ≥ 50 dB.
- Versatile Application: Ideal for linking network switches, patch panels, and active fiber optic equipment segments.
-

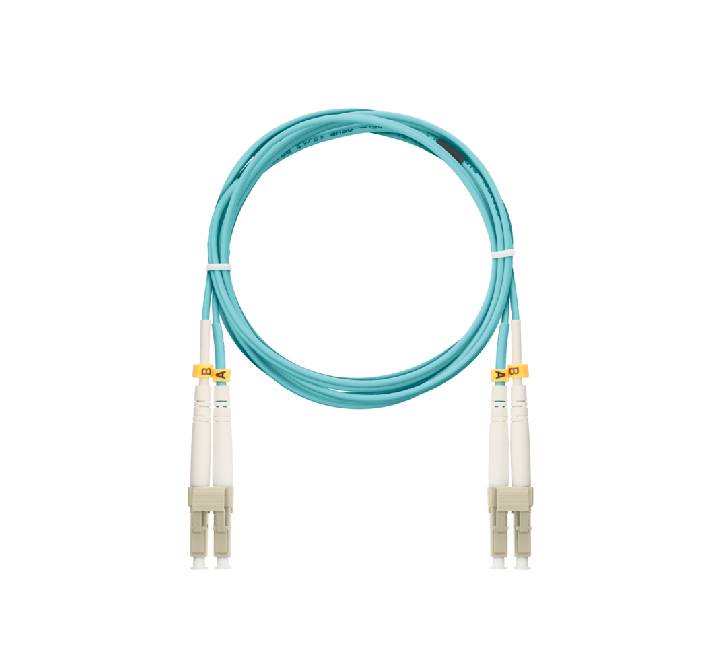

Optical Fiber Patch Cord, 50/125 Multi Mode OM3, LC/UPC-LC/UPC, LSZH, duplex, aqua, 5M
Technical Specifications
| Brand | Nikomax |
| Part Number (P/N) | NMF-PC2M3C2-LCU-LCU-005 |
| Cable Type | Fiber Optic Patch Cord (Duplex) |
| Fiber Type | Multimode 50/125 µm (MM) |
| Fiber Class | OM3 |
| Connector Type | LC/UPC to LC/UPC |
| Cable Length | 5 Meters (5M) |
| Outer Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Outer Diameter | 2.0 mm |
| Operating Temperature | -5°C to +65°C |
