Description

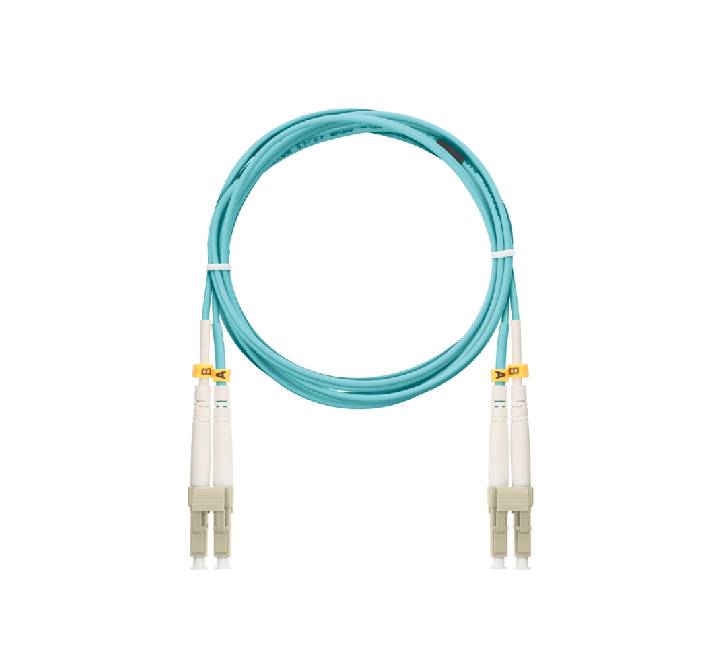

Establish clean, short-range connections within your server racks with the Nikomax NMF-PC2M3C2-LCU-LCU-001 Fiber Optic Cord (1M). Designed for high-speed data centers, enterprise networks, and telecommunication rooms, this 1-meter OM3 multimode duplex patch cord offers exceptional bandwidth capacity and minimal signal attenuation.
Key Features
- Short-Reach Efficiency: 1-meter length is optimal for clean, tangle-free patching between adjacent switches, routers, and patch panels.
- High-Speed OM3 Performance: 50/125 Multimode fiber engineered for high-bandwidth networks and high-capacity data transmissions.
- Precision LC/UPC Connectors: Equipped with reliable Duplex LC/UPC connectors on both ends with distinct polarity markers.
- Safe LSZH Outer Jacket: Low Smoke Zero Halogen (LSZH) jacket minimizes toxic gas emission and smoke density during accidental fires.
- Low Insertion Loss: Built to maintain superior signal integrity with insertion loss ≤ 0.3 dB and return loss ≥ 50 dB.
Technical Specifications
| Brand | Nikomax |
| Part Number (P/N) | NMF-PC2M3C2-LCU-LCU-001 |
| Cable Type | Fiber Optic Patch Cord (Duplex) |
| Fiber Type | Multimode 50/125 µm (MM) |
| Fiber Class | OM3 |
| Connector Type | LC/UPC to LC/UPC |
| Cable Length | 1 Meter (1M) |
| Outer Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 50 dB |
| Outer Diameter | 2.0 mm |
| Operating Temperature | -5°C to +65°C |
