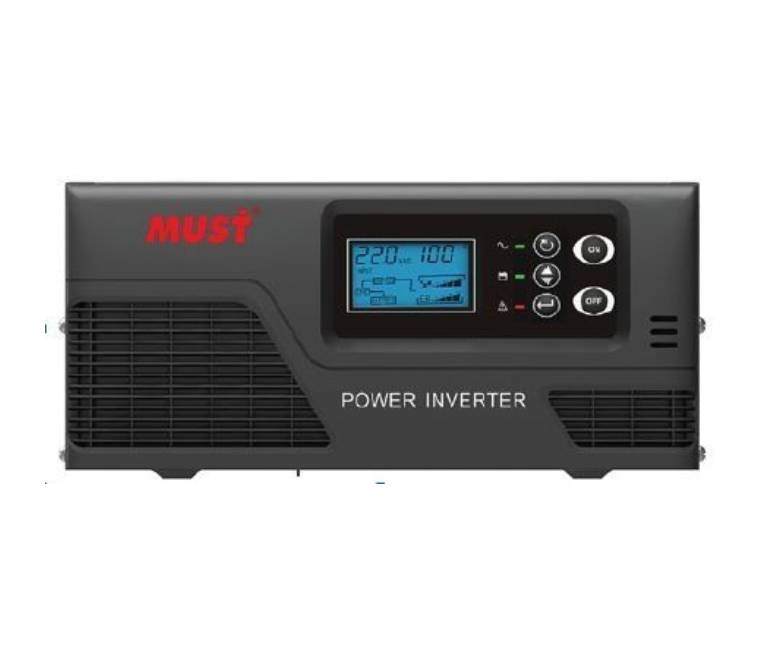

Must EP20-1024 Pro 1kW 24V Power Inverter - High Efficiency Backup
The Must EP20-1024 Pro is a cost-effective, intelligent 1kW power inverter with a dedicated UPS function, specifically designed to withstand Myanmar's frequent grid instability. Unlike standard 12V inverters, the 24V system of the EP20-1024 Pro offers higher efficiency and lower heat generation, making it ideal for longer run-times during load shedding.
Equipped with a heavy-duty transformer, this unit provides a massive 3x Surge Power (3000VA), allowing it to start inductive loads like small water pumps, electric fans, and refrigerators with ease. Its built-in AVR (Automatic Voltage Regulation) ensures your sensitive electronics in Yangon or Mandalay are protected from voltage spikes and brownouts.
Key Performance Features
- Pure Sine Wave Output: Delivers clean, utility-grade power that is safe for computers, medical equipment, and modern household appliances.
- 300% Surge Capacity: Rated at 1000W but capable of handling 3000VA peaks—essential for starting motor-based appliances.
- Built-in AVR: Stabilizes fluctuating grid voltage (140V-280V) to a steady 230V output without using battery power.
- Smart LCD Interface: Monitor battery voltage, charging current, and load levels in real-time. Configure settings easily via front-panel buttons.
- Generator Compatible: Designed to sync perfectly with local generators, smoothing out unstable frequency and voltage.
- 3-Step Intelligent Charging: Optimizes battery life (Lead-Acid or Gel) with a specialized bulk, absorption, and float charging algorithm.
Product Overview & Installation Video
Video Credit: Must Power Official Technical Support
Technical Specifications
| Model Parameter | Must EP20-1024 Pro |
|---|---|
| Rated Power | 1000W (1kW) |
| Surge Rating (20ms) | 3000VA |
| Battery System Voltage | 24V DC |
| AC Input Voltage Range | 140V ~ 280V AC |
| Output Waveform | Pure Sine Wave |
| Transfer Time | Typical: 6ms / Max: 10ms |
| Max. AC Charge Current | 15A |
| Audible Noise | ≤ 60dB |
| Dimensions (W*H*D) | 315 * 145 * 210 mm |
| Net Weight | 13.5 kg |
Expert Verdict for Myanmar Energy Needs
If you are looking for an affordable yet heavy-duty solution for load shedding, the EP20-1024 Pro is superior to the 12V version. Its 24V design ensures less energy loss through cables, allowing your batteries to last longer. We recommend pairing this with 2x 100Ah or 2x 200Ah Gel batteries for the best performance.
