Description
Long-Distance CWDM Fiber Expansion for High-Density Networks
Leadtime : 4 ~ 8 Weeks

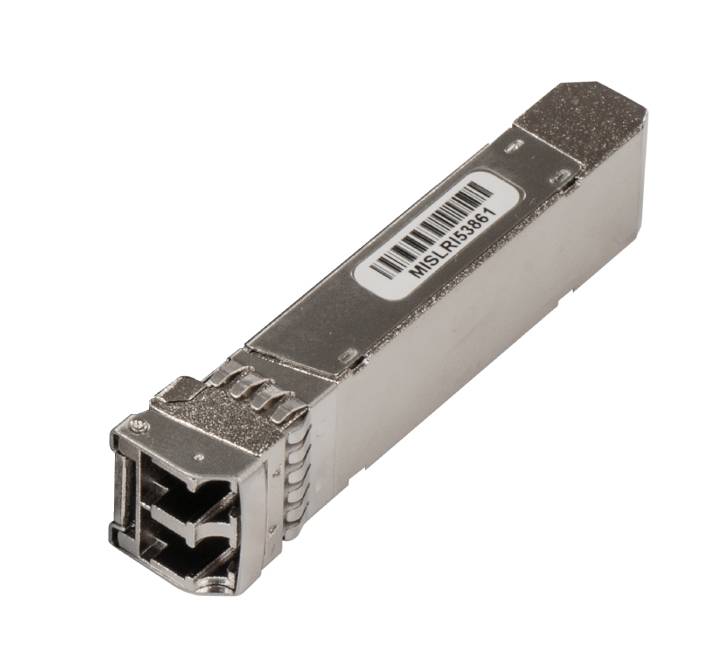

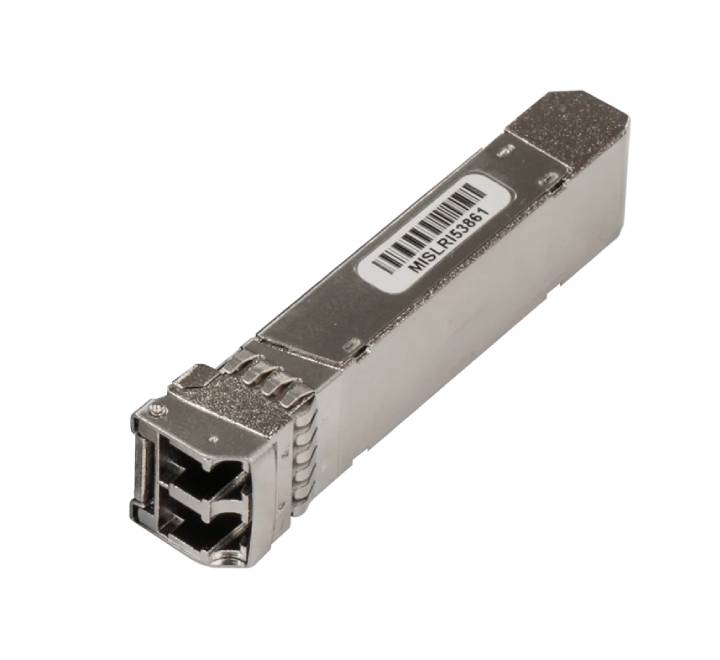

The MikroTik S-C59DLC40D is an enterprise-grade 1.25G Single-Mode Coarse Wavelength-Division Multiplexing (CWDM) SFP optical transceiver designed to expand bandwidth over existing fiber infrastructure. Operating at a specific 1590nm CWDM wavelength with a dual LC connector, this transceiver enables long-range point-to-point data transmission up to 40 kilometers without requiring additional fiber cabling.
Key Features & Highlights
- 1590nm CWDM Wavelength: Optimized for Coarse Wavelength-Division Multiplexing applications to combine multiple optical channels over a single fiber pair.
- High Data Rates: Supports throughput speeds up to 1.25 Gbps for Gigabit Ethernet and Fiber Channel links.
- 40km Transmission Distance: Designed for long-haul metropolitan networks, ISP backhaul, and inter-building data links over single-mode optical fiber.
- Digital Diagnostic Monitoring (DDM): Real-time monitoring of key optical parameters, including optical power, operating temperature, and voltage levels.
- Universal Compatibility: Plugs directly into standard SFP ports on MikroTik switches and routers as well as MSA-compliant networking equipment.
- Hot-Swappable SFP Form Factor: Allows easy deployment and replacement without shutting down network infrastructure.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Code | S-C59DLC40D |
| Form Factor | SFP (Small Form-factor Pluggable) |
| Data Rate | 1.25 Gbps |
| Fiber Type | Single-Mode Fiber (SMF) |
| Wavelength | 1590 nm (CWDM) |
| Max Cable Distance | 40 km |
| Optical Connector | Dual LC UPC |
| DDM Support | Yes (Digital Diagnostic Monitoring) |
| Transmit Power Range | -5 to 0 dBm |
| Receiver Sensitivity | -24 dBm |
| MTBF | Approximately 100,000 hours at 25°C |
