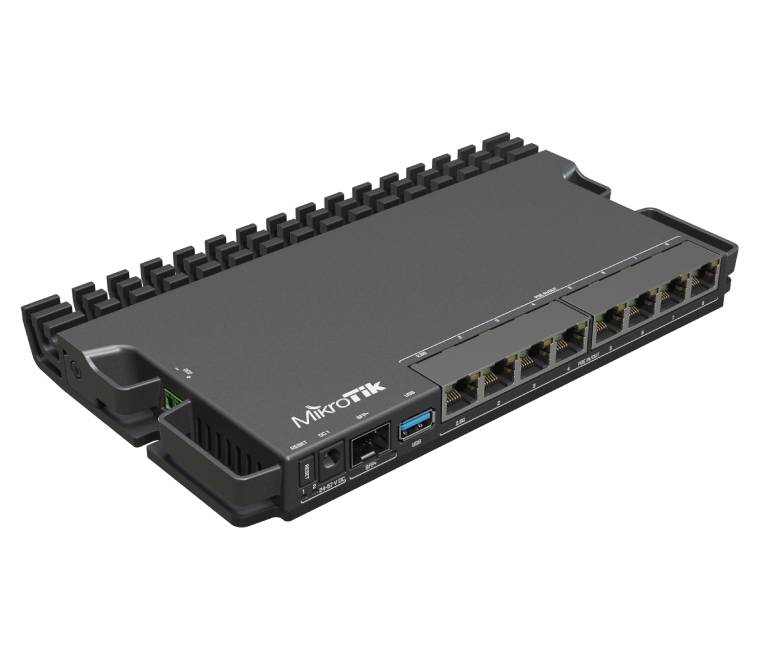

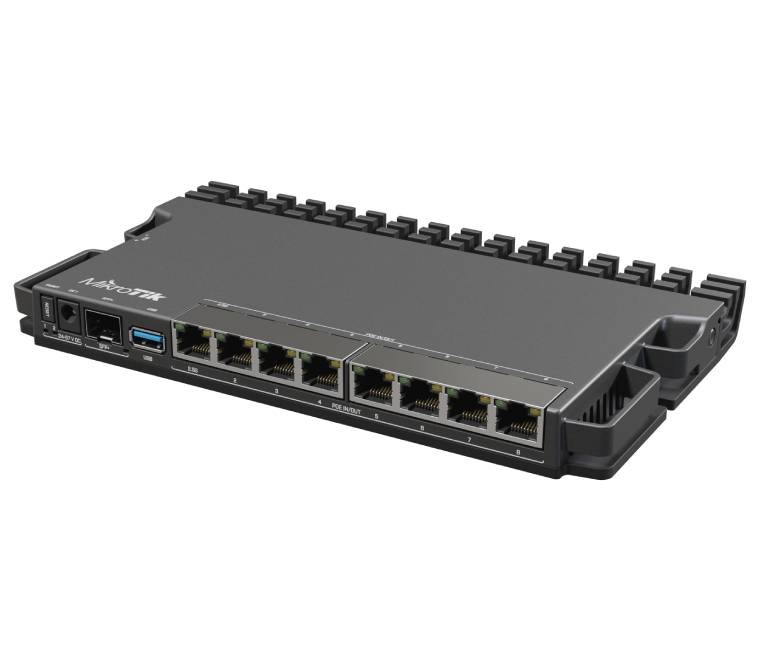

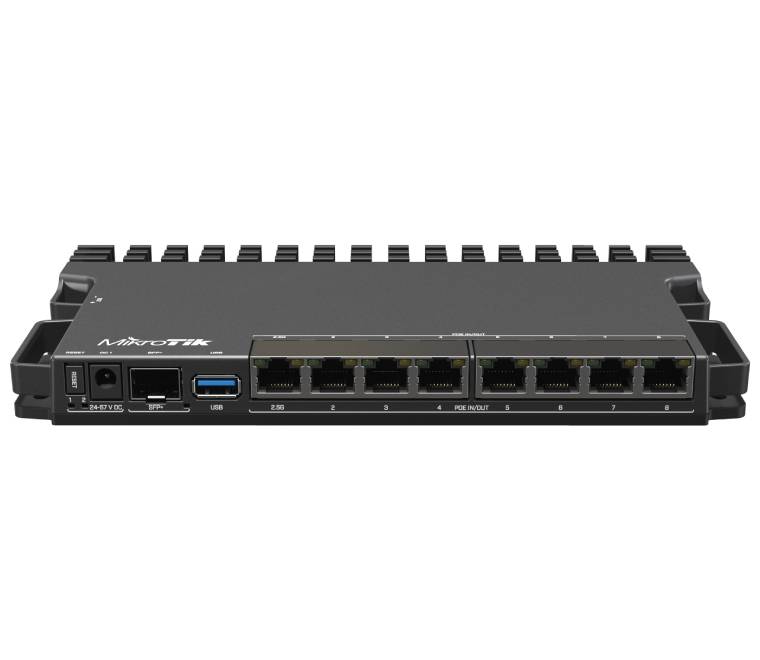

Overview: MikroTik RB5009UPr+S+IN 4-Core 1.4GHz PoE Router
The MikroTik RB5009UPr+S+IN is a compact, high-performance, heavy-duty router engineered for demanding networking environments, ISPs, and advanced home or business setups. Driven by a robust quad-core 1.4 GHz ARM 64-bit processor (88F7040) and 1 GB of DDR4 RAM, this unit delivers double the processing performance of standard routers in its class.
Featuring 9 wired ports in total—comprising 7x Gigabit Ethernet ports, 1x 2.5 Gigabit Ethernet port, and a 10G SFP+ optical cage—the RB5009UPr+S+IN brings unparalleled flexibility and speed. Crucially, all 8 Ethernet ports support Power over Ethernet (PoE-in and PoE-out), providing an exceptional power budget and redundancy across up to 10 distinct power supply options.
Key Features
- Quad-Core Processing Power: Powered by a Marvell Armada 1.4 GHz ARMv8 4-core CPU and 1GB DDR4 RAM to handle intensive routing, complex firewall filtering, and secure VPN connections seamlessly.
- Comprehensive Port Selection: Equipped with 7x 1GbE ports, 1x 2.5GbE port, and a high-speed 10G SFP+ cage for fiber uplinks.
- PoE-In & PoE-Out on All 8 Ports: Powers downstream network hardware (such as wireless access points and IP cameras) via 802.3af/at PoE-out with a total power budget up to 130W.
- Unmatched Power Redundancy: Supports up to 10 powering methods, including a DC jack, 2-pin terminal, and PoE-in across a broad 24–57V range.
- High-Speed USB 3.0: Includes a full-sized USB 3.0 port for external logging, network storage, or connecting an LTE/5G modem.
- Mounting Versatility: Engineered to fit compactly; up to four of these routers can be mounted side-by-side in a single 1U rackmount space using optional rackmount accessories.
- RouterBORD 5009UPr+S+IN with Marvell Armada ARMv8 CPU (4-cores, 1.4GHz per core), 1GB of DDR4 RAM, 1GB NAND storage, 1x 2.5Gbit LAN (802.3af/at PoE-out and POE-in), 7x 1Gbit LAN (802.3af/at PoE-out and POE-in), 1xSFP+ port, RouterOS L5, metal desktop case, PSU.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Code | RB5009UPr+S+IN |
| CPU | 88F7040 Quad-core 1.4 GHz (ARM 64bit) |
| Memory & Storage | 1 GB DDR4 RAM / 1 GB NAND Storage |
| Ethernet Ports | 7x 10/100/1000 Mbps Gigabit ports, 1x 2.5 Gbps port |
| Fiber Uplink | 1x 10G SFP+ cage |
| USB Port | 1x USB 3.0 type A |
| Power Options | DC jack, 2-pin terminal, PoE-in (Input Voltage: 24–57 V) |
| PoE-Out Output | Ports Ether1–Ether8, 802.3af/at (Max 25W per port, Total 130W) |
| Operating System | RouterOS v7 (License Level 5) |
| Dimensions | 220 x 125 x 22 mm |
| Operating Temperature | -40°C to +60°C |
