Description

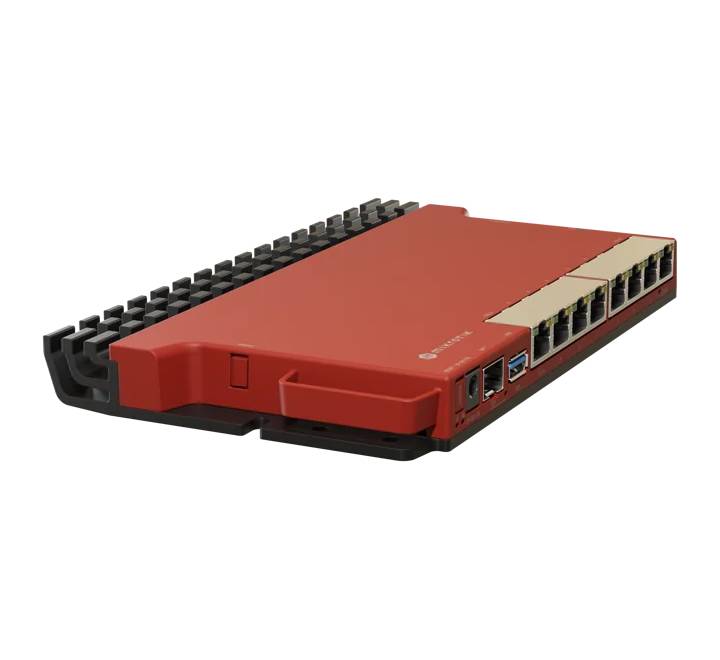

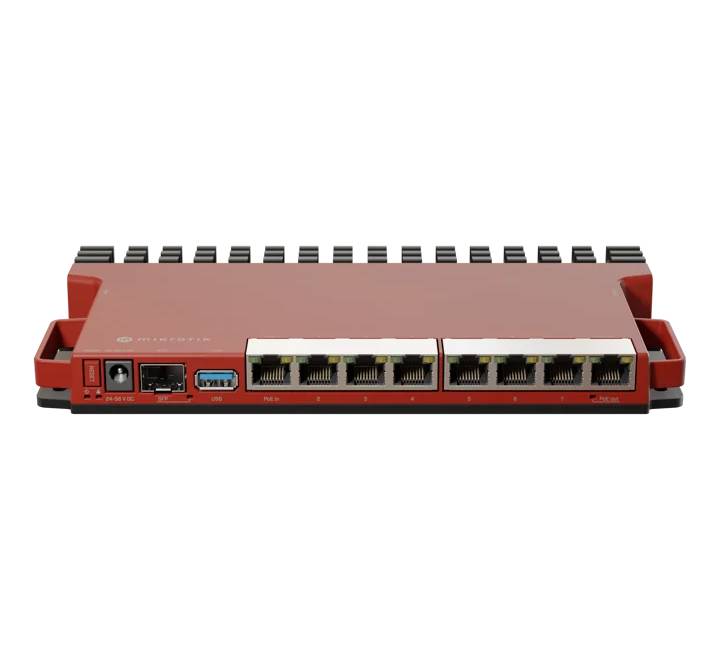

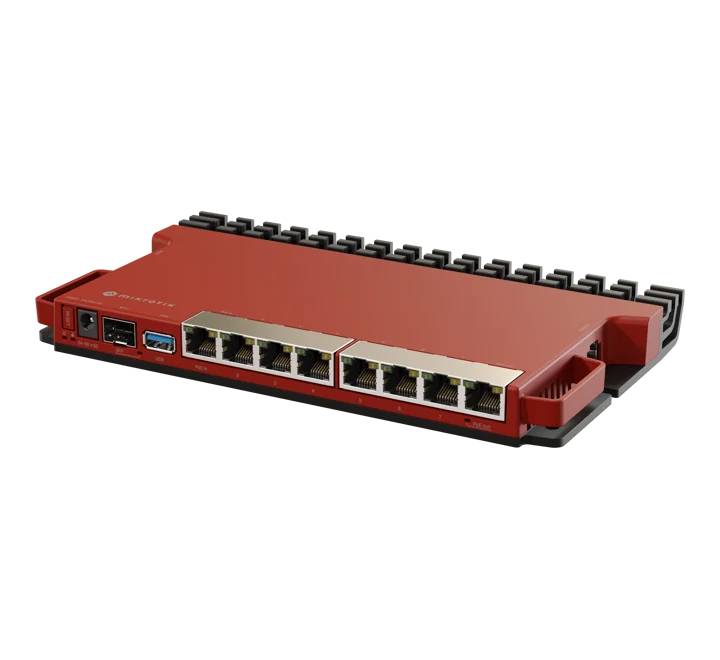

MikroTik L009UiGS-RM – The Ultimate 1U Rackmount Router Upgrade
-
Low instock ( if not available Leadtime : 4 ~ 8 Weeks )
The legendary RB2011 product line has provided affordable, flexible, and robust connectivity for over a decade. Now, it’s finally time for an evolutionary upgrade. The MikroTik L009UiGS-RM keeps everything you loved about the classic red-accented design but introduces massive modern enhancements: up to 4 times faster performance, cutting-edge software feature capabilities, and massive quality-of-life improvements for system administrators.
Driven by a powerful dual-core ARM CPU and a speedy Marvell Peridot Switch-chip, the L009 delivers blazing-fast fast-path routing, intensive filtering, and hardware-accelerated IPsec encryption without bottle-necking your network traffic.
Key Features
- 4x Faster Performance: Outpaces older MIPS-based platforms dramatically across both simple setups and complex firewall configurations.
- Modern ARM Architecture & Container Support: Run custom application containers directly on your router, such as a Pi-hole ad-blocker or a HomeAssistant smart home ecosystem.
- High-Speed 2.5G SFP Cage: Future-proof uplink capabilities with an SFP slot that supports both traditional Gigabit and high-speed 2.5 Gigabit modules.
- Smart Enclosure Design: The innovative metal case acts as a high-efficiency passive heat-sink. Best of all, its unique form factor allows you to mount up to four of these routers inside a single 1U rack space!
- Flexible Power & PoE-Out: Features PoE-In on Port 1 to power the device, and a helpful Passive PoE-Out on Port 8 to easily feed power to external IP cameras, VoIP phones, or APs.
- Expansion Capabilities: Includes a full-sized USB 3.0 Type-A port, ideal for hosting extra storage or attaching an LTE failover modem.
Technical Specifications
| Specification | Value |
|---|---|
| Product Code | L009UiGS-RM |
| CPU Architecture | ARM 64bit (RouterOS 32bit mode) |
| CPU | Dual-Core IPQ-5018 800 MHz |
| RAM Size | 512 MB (DDR3L) |
| Storage Size | 128 MB, NAND |
| Ethernet Ports | 8x 10/100/1000 Mbps Gigabit Ports |
| SFP Slots | 1x SFP Cage (Supports up to 2.5G) |
| Switch Chip Model | Marvell Peridot 88E6190 |
| USB Interface | 1x USB 3.0 Type A (Max 1.5A current) |
| Serial Console Port | RJ45 |
| PoE Capabilities | 802.3af/at PoE-In (Port 1), Passive PoE-Out (Port 8) |
| Operating System | RouterOS v7 (License level 5) |
| Cooling Type | Passive (Fanless Enclosure) |
| Dimensions | 220 x 125 x 22 mm |
