Description
High-Density 48-Port Gigabit PoE+ Switch with 10G & 40G Uplink Aggregation
Leadtime : 2 ~ 4 Weeks

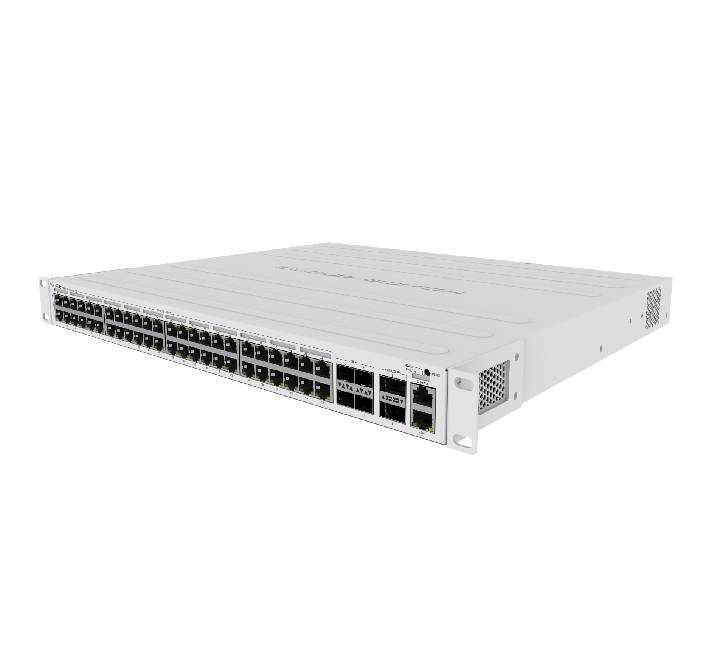

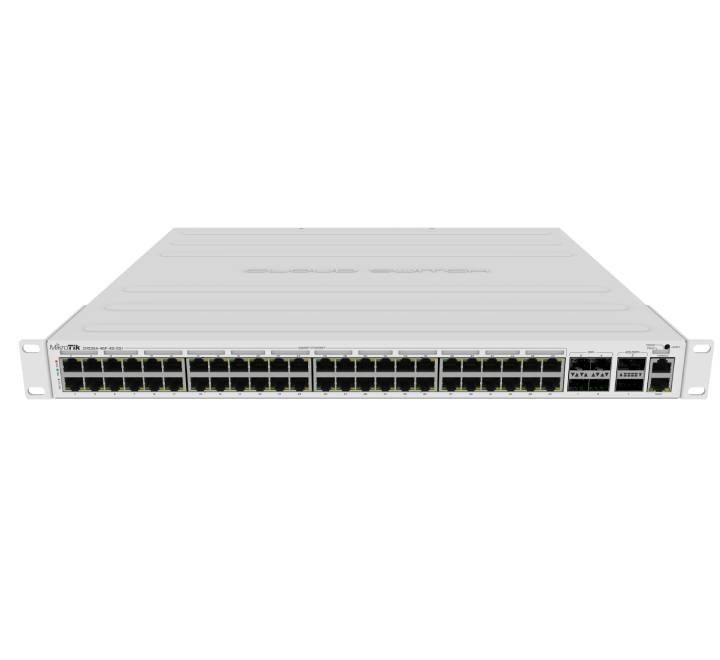

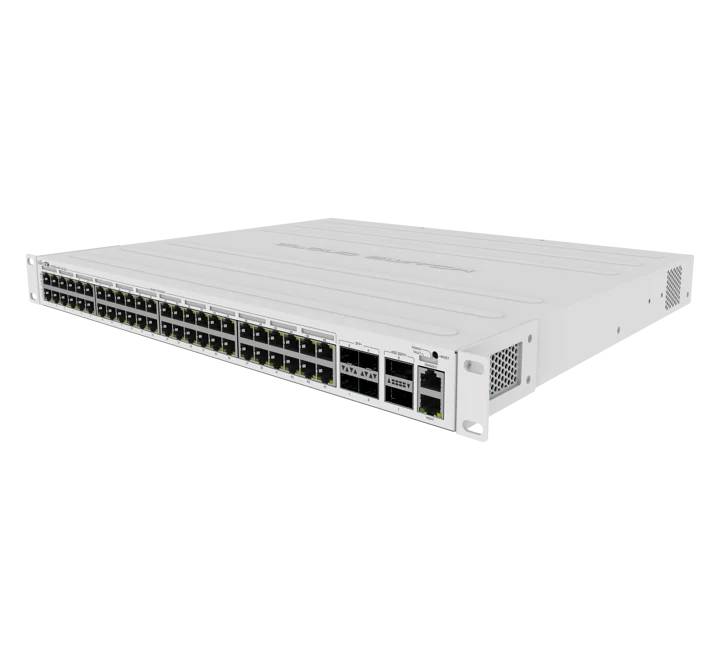

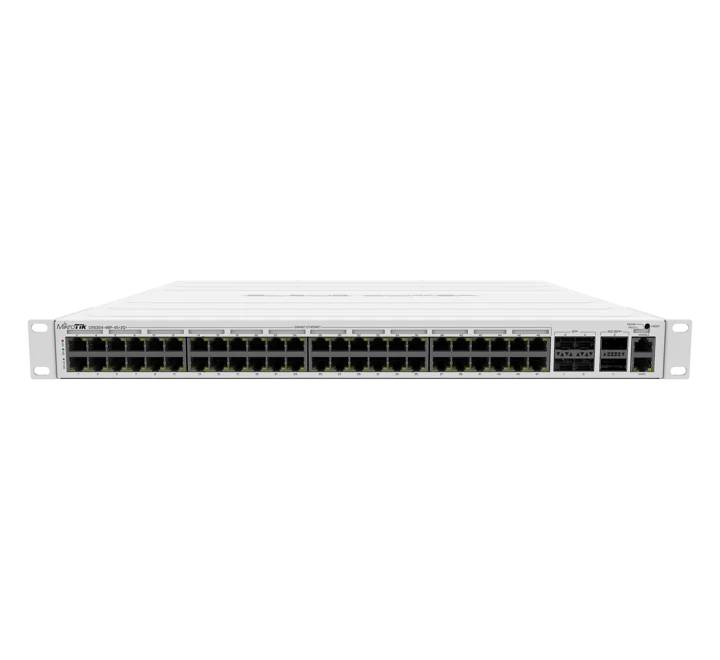

The MikroTik CRS354-48P-4S+2Q+RM is an enterprise-grade rackmount switch engineered for demanding high-density networks, IP surveillance systems, and VoIP deployments. Combining forty-eight 1G RJ45 PoE-out ports, four 10G SFP+ ports, and two 40G QSFP+ fiber ports into a single 1U enclosure, this switch delivers an incredible non-blocking throughput of 168 Gbps and a switching capacity of 336 Gbps.
Key Features & Highlights
- Universal PoE Output (700W Power Budget): All 48 Gigabit Ethernet ports support auto-sensing 802.3af/at (PoE/PoE+) as well as low-voltage passive PoE (26V / 53V) to power access points, IP cameras, and phones effortlessly.
- Ultra-Fast 10G & 40G Uplinks: Features 4x 10G SFP+ ports and 2x 40G QSFP+ ports for high-capacity backbone connectivity and switch stacking.
- Dual-Boot Versatility (RouterOS & SwitchOS): Boot into SwitchOS for streamlined Layer 2 switching or RouterOS v7 for extensive Layer 3 routing, VLAN, firewall, and bandwidth management.
- Integrated Cable Management: Includes dedicated front cable management brackets and rear support ears for clean, professional 19-inch rack installations.
- Active Thermal Cooling: Equipped with four internal auto-controlled fans and active sensor monitoring for continuous heavy-workload heat dissipation.
- Out-of-Band Network Management: Includes an independent 10/100 Ethernet management port and an RJ45 serial console port for local or remote administrative access.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Code | CRS354-48P-4S+2Q+RM |
| CPU & Architecture | Qualcomm QCA9531 @ 650 MHz (MIPSBE) |
| RAM / Storage | 128 MB RAM / 32 MB Flash |
| Gigabit PoE Ports | 48x 10/100/1000 Mbps RJ45 Ports |
| PoE Output Standards | 802.3af/at (PoE/PoE+) & 26V / 53V Passive PoE |
| Total PoE Output Power | 700 W (27A @ 26V or 13.2A @ 53V) |
| Fiber Uplink Ports | 4x 10G SFP+ Ports, 2x 40G QSFP+ Ports |
| Management Ports | 1x 10/100 Ethernet, 1x RJ45 Serial Console |
| Switching Performance | 336 Gbps Capacity / 168 Gbps Non-Blocking Throughput |
| Forwarding Rate | 235 Mpps |
| Operating System | RouterOS v7 (License Level 5) / SwitchOS Dual Boot |
| AC Input & Power Consumption | 100–240V AC; Max 800W (85W without attachments) |
| Dimensions & Form Factor | 443 x 382 x 44 mm (1U Rackmount) |
