Ultra-High-Density 10G & 40G Fiber Connectivity for Modern Networks
- 2 Pcs instock only ( if not available leadtime 4 ~ 10 Weeks )
The MikroTik CRS326-24S+2Q+RM is engineered for high-demand enterprise environments, ISP backbones, and data centers requiring ultra-fast throughput without bandwidth bottlenecks. Equipped with twenty-four 10G SFP+ ports and two 40G QSFP+ ports, this 1U rackmount Cloud Router Switch delivers a total non-blocking throughput of 320 Gbps and a massive switching capacity of 640 Gbps.
Key Features & Highlights
- Next-Generation Fiber Speeds: Features 24x 10G SFP+ ports for high-density server connections and 2x 40G QSFP+ ports for high-capacity uplink aggregation.
- Dual-Boot Flexibility (SwOS & RouterOS): Boot into SwitchOS (SwOS) for simplified Layer 2 switching administration or RouterOS for full Layer 3 routing, firewall, and VPN capability.

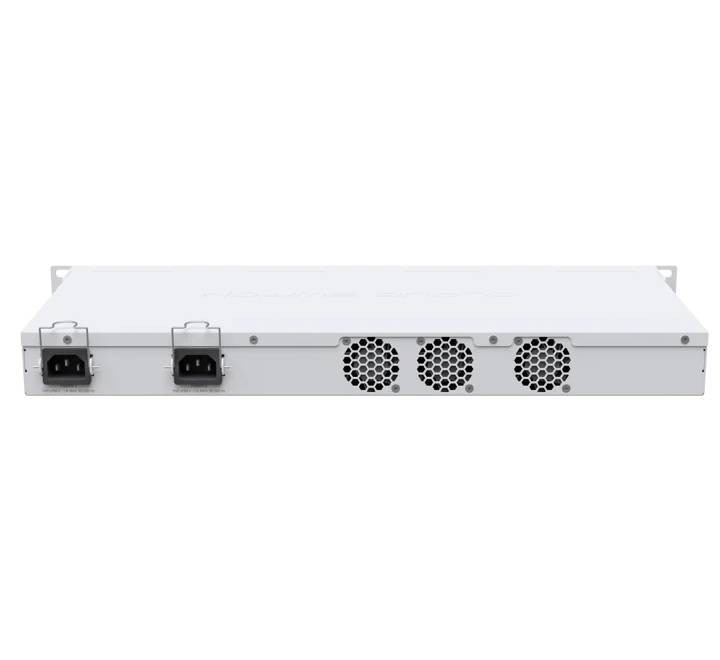

- Redundant Dual Power Supplies: Dual AC inputs (100–240V) provide automatic failover protection to ensure 24/7 uptime in mission-critical deployments.
- Carrier-Grade Performance: Powered by a 650 MHz CPU with 64 MB RAM, generating a 252 Mpps forwarding rate for high packet-density handling.
- Active Thermal Management: Three built-in temperature-controlled fans maintain efficient cooling under continuous peak workloads.
- Out-of-Band Management: Includes an extra 10/100 Ethernet port, RJ45 serial console port, and a full-sized USB Type-A port for easy recovery and maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | CRS326-24S+2Q+RM |
| CPU | QCA9531 @ 650 MHz |
| RAM / Storage | 64 MB RAM / 16 MB Flash |
| 10G SFP+ Ports | 24 Ports |
| 40G QSFP+ Ports | 2 Ports |
| Management Ports | 1x 10/100 Ethernet, 1x RJ45 Serial Console, 1x USB Type-A |
| Switching Capacity | 640 Gbps |
| Non-Blocking Throughput | 320 Gbps |
| Forwarding Rate | 252 Mpps |
| Operating System | RouterOS (License Level 5) / SwOS Dual Boot |
| Power Inputs | 2x AC Power Supplies (100V–240V) |
| Max Power Consumption | 69 W (42 W without attachments) |
| Dimensions & Form Factor | 443 x 200 x 44 mm (1U Rackmount Ears Included) |
