Description
Compact, High-Performance 10G Fiber Connectivity for Desktop & Rack Installations
The MikroTik CRS310-8G-2S+IN brings enterprise-grade 10G fiber uplinks into a compact desktop form factor. Featuring eight Gigabit Ethernet ports and two 10G SFP+ slots, this versatile switch is powered by a 98DX226S switch chip and a 800 MHz ARM CPU, making it the ideal solution for home labs, branch offices, and small business networks needing fast fiber backhauls without high power consumption.
Key Features & Highlights

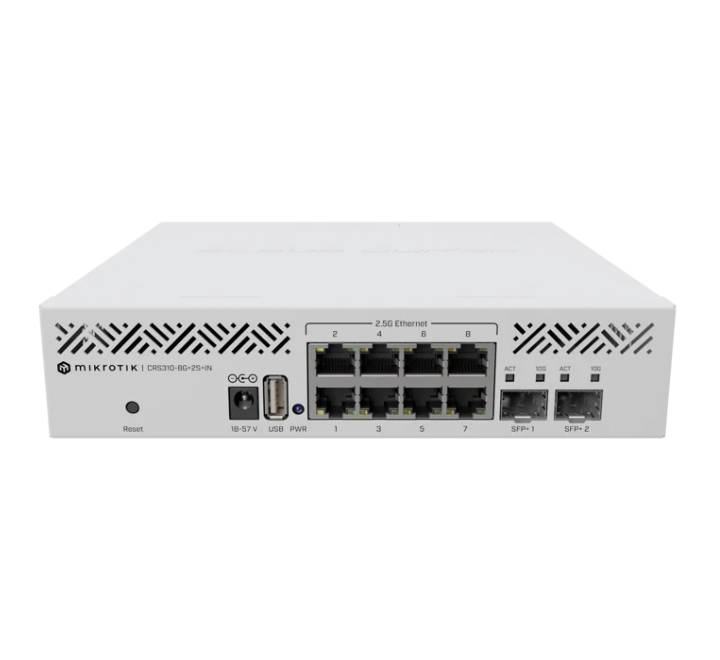

- High-Speed 10G SFP+ Cages: Two 10G SFP+ ports enable ultra-fast uplinks to core switches, NAS storage units, or high-bandwidth servers.
- Dual-Boot Flexibility (SwitchOS & RouterOS v7): Choose SwitchOS for simplified Layer 2 switching management or boot into RouterOS v7 for advanced Layer 3 routing, VLAN tagging, and firewall rules.
- Flexible Power Options: Powered via a standard DC jack (18–57V) or 802.3af/at Passive PoE-in on Ethernet Port 1 for versatile deployment setups.
- Hardware Offloading: Built-in Marvell switch-chip architecture provides full Layer 2 and hardware-offloaded Layer 3 routing capabilities.
- Quiet Fanless Operation: Passive cooling design guarantees silent performance, making it perfect for office desks, quiet work environments, and home cabinets.
- Rackmount Convertible: Includes desktop rubber feet and optional rack ears for standard 19-inch 1U equipment enclosure mounting.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Code | CRS310-8G-2S+IN |
| CPU & Switch Chip | ARM 32bit 98DX226S @ 800 MHz |
| RAM / Storage | 256 MB RAM / 16 MB Flash |
| Gigabit Ethernet Ports | 8x 10/100/1000 Mbps RJ45 Ports |
| 10G SFP+ Ports | 2x SFP+ Cages (Supports 1.25G and 10G modules) |
| PoE Input | 802.3af/at & Passive PoE (Port 1, 18–57V) |
| Power Supply Inputs | 1x DC Jack (18–57V), 1x PoE-in |
| Max Power Consumption | 21 W (11 W without attachments) |
| Operating System | RouterOS v7 (License Level 5) / SwitchOS Dual Boot |
| Dimensions | 200 x 166 x 45 mm |
| Cooling Type | Passive (Fanless) |
