Power Your Network Infrastructure with the MikroTik CCR2116-12G-4S+
Eliminate processing bottlenecks from your 10G networking topologies. The MikroTik CCR2116-12G-4S+ Cloud Core Router is meticulously architected to unleash the absolute limit of ultra-high-speed data distribution. Driven by an advanced 16-core ARM architecture, this enterprise-grade Ethernet router sets a formidable performance benchmark tailored directly for ISPs, heavy multi-tenant office structures, and data-heavy corporate cores.
Whether managing massive dynamic BGP routing updates, executing complex firewall rule chains, orchestrating Quality of Service (QoS) shapes, or driving extensive per-user queues, the CCR2116-12G-4S+ executes operations effortlessly. It yields up to double the internal processing throughput compared to historic 36-core CCR options, providing an incredible 6x boost to BGP task handling speeds.
Official MikroTik CCR2116-12G-4S+ Hardware Walkthrough
Key Hardware Features:
- 16-Core Annapurna Labs Alpine CPU: Houses an AL73400 processor clocked at 2 GHz per core. This delivers a massive 15% increase in localized single-core operations—the exact metric driving heavy connection queues and complex state calculations.
- Layer 3 Hardware Offloading: Achieves genuine wire-speed switching matrix paths over fundamental routing tasks, offloading stress completely from the main computing logic.
- Non-Blocking 10G Interconnects: Fitted with 4x 10G SFP+ cages running straight along an independent, full-duplex data path directly into the powerful onboard Marvell Prestera matrix switch chip.

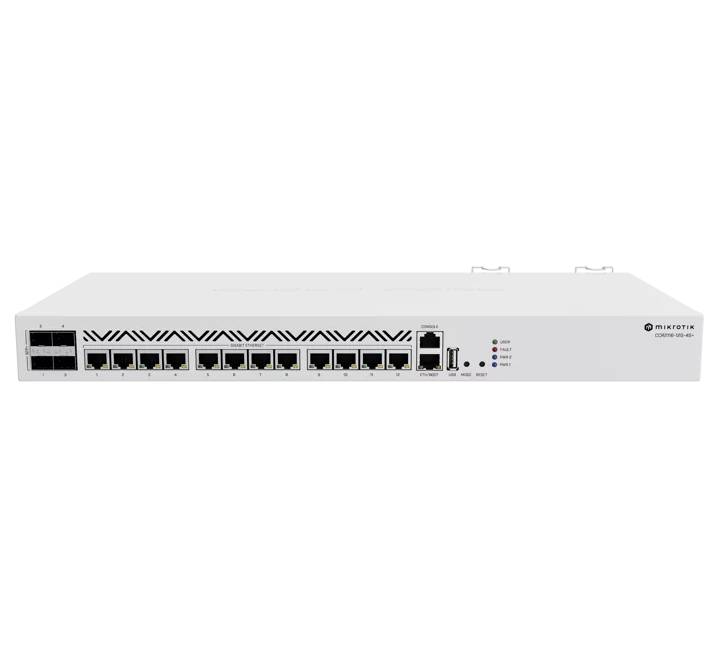

- Comprehensive Interface Layout: Offers 12x Gigabit Ethernet copper ports passing directly through internal switching logic, paired with 1x separate, standalone Gigabit Ethernet interface mapped directly to the processor for isolated out-of-band management.
- Hot-Swappable Power Supplies: Engineered with dual-redundant internal power supply units (100-240V AC) preventing service drop-outs and unexpected infrastructure power failures.
- M.2 NVMe Storage Expansion: Includes an onboard M.2 PCIe Gen 3.0 x4 bay accommodating standard 2280 NVMe SSD drives for logging databases, memory proxy caching, or running local virtualized containers.
- Optimized for RouterOS v7: Fully integrated to run exclusively on the modern, high-stability RouterOS v7 network engine operating system with a high-tier License Level 6 clearance.
Comprehensive Technical Specifications Table:
| Hardware Component | Verified Value / Details |
|---|---|
| Factory Model Code | CCR2116-12G-4S+ |
| Computing Architecture | ARM 64bit system core |
| Processor Core Engine | AL73400 (16 Cores / 16 Threads running at 2000 MHz) |
| Switch Chip Architecture | Marvell Prestera 98DX3255 fabric |
| System RAM Allocation | 16 GB high-speed DDR4 RAM |
| Onboard Storage Configuration | 128 MB flash density, NAND system |
| Gigabit Ethernet Ports (10/100/1000) | 13 independent interfaces |
| 10G SFP+ Optical Cages | 4 specialized high-density cages |
| Internal M.2 Drive Bay | 1x PCIe Gen 3.0 x4 slot (Accommodates M-Key NVMe SSD 2280 form factor) |
| Diagnostic Console Link | Standard RJ45 serial connector |
| Software Operating License | RouterOS (Native v7 platform deployment, License Level 6) |

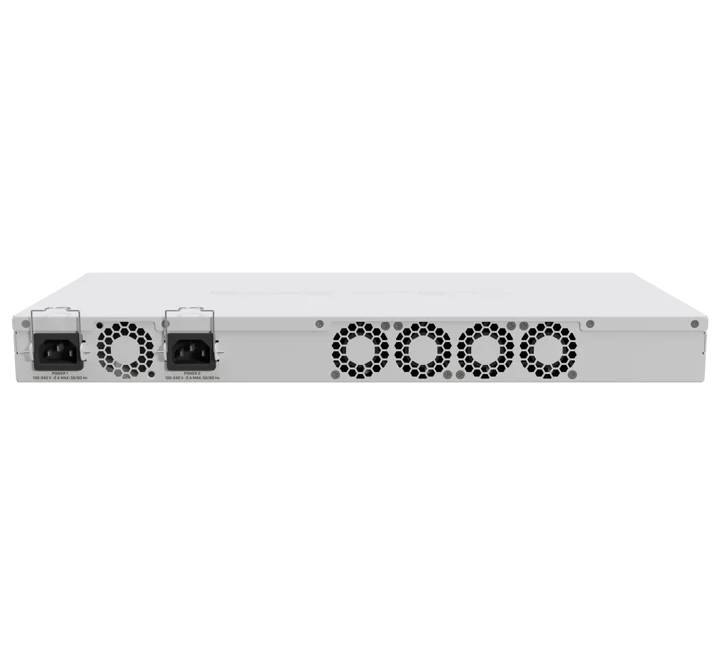

| Power Input Redundancy | 2x Hot-Swappable dual internal AC power supplies (100V - 240V AC) |
| Max Power Overhead | 83 W maximum draw (60 W bare baseline without attachments) |
| System Cooling Mechanics | 4x Interlinked active fans featuring automated fault monitoring sensor logic |
| Physical Chassis Boundaries | 443 x 199 x 44 mm (Engineered for Standard 1U Rackmount footprints) |
| Hardware IPsec Encryption Processing | Integrated hardware-accelerated processing engine |
