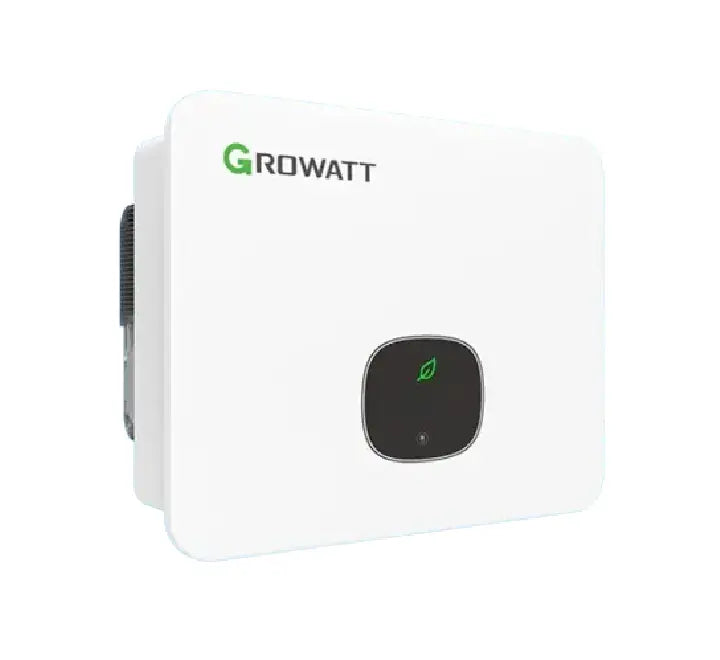

Growatt MID 30KTL3-XH 30kW 3-Phase Battery-Ready Hybrid Inverter
Limited Stock
The Growatt MID 30KTL3-XH is a cutting-edge 30kW three-phase inverter engineered for commercial, industrial, and large residential solar installations. Designed with ultimate versatility in mind, this inverter functions seamlessly as a high-efficiency grid-tied inverter out of the box while featuring a future-proof battery-ready interface. You can start saving on energy bills immediately and expand into energy storage whenever you are ready—without replacing your core unit.
Boasting a maximum efficiency of 98.75%, 3 independent MPPT trackers, and integrated Type II AC/DC surge protection, the MID 30KTL3-XH delivers maximum power yield, robust safety, and continuous reliability under demanding conditions.
Key Features
- Future-Proof Battery Ready: Includes dual integrated battery interfaces compatible with Growatt APX High-Voltage (HV) battery systems (5kWh to 60kWh capacity). Add storage at any time without extra retrofitting costs.
- High Efficiency Yields: Features up to 98.75% maximum efficiency with a DC/AC oversizing ratio of up to 2.0 (up to 60 kWp PV input capacity).
- 3 Independent MPPT Trackers: Allows installation across multi-oriented roofs or complex shading profiles while maximizing overall energy yield.
- Enhanced Safety & Protection: Outfitted with integrated Type II AC/DC Surge Protection Devices (SPD), DC reverse polarity protection, and optional Arc-Fault Circuit Interrupter (AFCI) safety.
- Rugged Weatherproof Design: IP66 enclosure protection enables long-lasting operational reliability for both indoor and outdoor installations.
- Smart Monitoring & Control: Real-time remote monitoring via the ShinePhone app and ShineServer portal over Wi-Fi, LAN, or 4G options.
Technical Specifications
| Specification | Details |
|---|---|
| Rated AC Nominal Power | 30,000 W (30 kW) |
| Max. Recommended PV Input Power | 60,000 W (60 kWp) |
| Max. DC Input Voltage | 1,100 V |
| Start-up Voltage | 200 V |
| MPPT Voltage Range | 160 V – 1000 V |
| No. of MPPT Trackers / Strings per MPPT | 3 MPPTs / 2 Strings per MPPT (6 Strings Total) |
| Max. Input Current per MPPT | 32 A |
| Max. AC Output Current | 45.5 A |
| Max. Efficiency / European Efficiency | 98.75% / 98.50% |
| Compatible Battery System | Growatt APX HV Battery System (5 kWh – 60 kWh) |
| Surge Protection (SPD) | Type II (AC & DC side) |
| Ingress Protection Rating | IP66 (Outdoor / Indoor rated) |
| Dimensions (W / H / D) | 580 x 435 x 230 mm |
| Weight | 31 kg |
| Cooling System | Smart Air Cooling |
| Standard Warranty | 5 Years (Extendable to 10 Years) |
