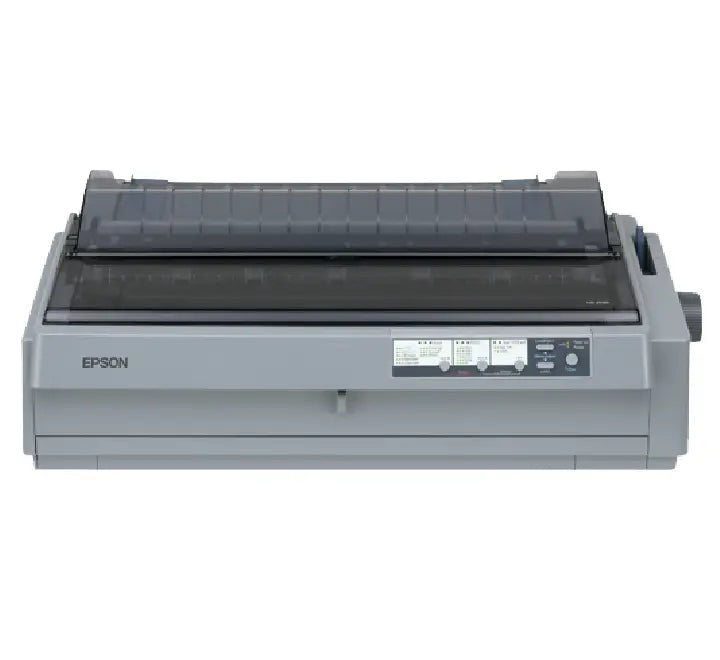

Epson LQ-2190 A3 24-Pin Impact Dot Matrix Printer

Built to handle high-volume, heavy-duty data processing, invoice generation, and multi-part inventory reporting, the Epson LQ-2190 A3 Impact Dot Matrix Printer stands as an unrivaled workhorse for corporate warehouses, logistics hubs, and financial offices. Featuring a wide-carriage, 24-pin design, this robust machine blends legendary mechanical durability with remarkably low operational costs.

Whether you are running deep audit logs or processing wide spreadsheet formats, the LQ-2190 delivers crisp, highly legible typography across wide A3 media. It features a massive Mean Time Between Failures (MTBF) rating of 20,000 power-on hours, giving your business uninterrupted, day-in, day-out productivity.

Core Features & Business Benefits

• High-Speed Processing: Maximize workplace efficiency with ultra-fast printing speeds reaching up to 576 characters per second (cps) at 12 characters per inch (cpi) in High-Speed Draft mode.

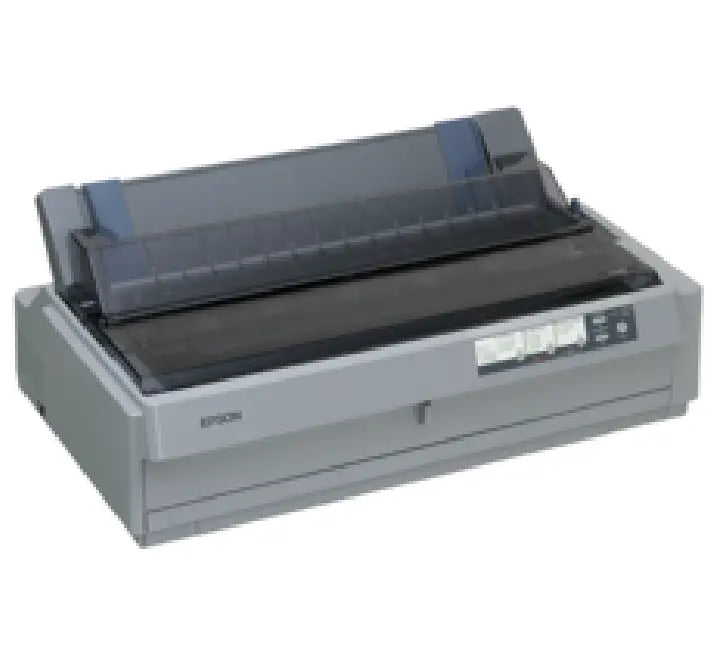

• Exceptional Multi-Part Handling: Achieve immaculate text throughput across thick media stacks. Natively handles up to 6-part continuous forms simultaneously (1 original master document + 5 legible carbon copies).
• Long Ribbon Cartridge Life: Engineered with cost efficiency in mind, the premium ribbon fabric achieves a massive print life capacity of up to 15 million characters, drastically reducing routine consumable swap costs.
• Flexible Media Routing: Offers front, rear, top, and bottom paper paths. Choose between push or pull tractor configurations to accommodate diverse loose sheet or continuous stationery setups.
• Versatile Legacy Connectivity: Comes standard with a dual-interface array featuring a high-speed USB 2.0 connection alongside a bidirectional Parallel interface port for older ERP and computing environments.

Technical Specifications

Specification Attribute	Epson LQ-2190 Specifications
Print Mechanism	24-pin, impact dot matrix system
Number of Columns	136 columns (Wide Carriage format)
Maximum Print Speed	High-Speed Draft: 576 cps (at 12 cpi) / 480 cps (at 10 cpi)
Carbon Copy Capacity	1 original master page + 5 duplicate carbon copies
Paper Feed Formats	Continuous paper (single/multi-part), roll paper, cut sheet (single/multi-part), envelopes, labels
Paper Feed Routing	Manual entry from Front/Rear, Tractor feed from Front/Rear/Bottom
Ribbon Fabric Life	Approx. 15 million characters (Black Fabric Ribbon)
Built-in Interface Ports	Hi-Speed USB 2.0 Type B, Bidirectional parallel interface (IEEE-1284 nibble mode)
Hardware Reliability	MTBF: 20,000 Power-On Hours | Print Head Life: 400 Million strokes/wire
Dimensions (W x D x H)	639 mm x 402 mm x 256 mm (25.1" x 15.8" x 10.1")
Product Weight	Approximately 13.0 kg (28.6 lbs)
