Description

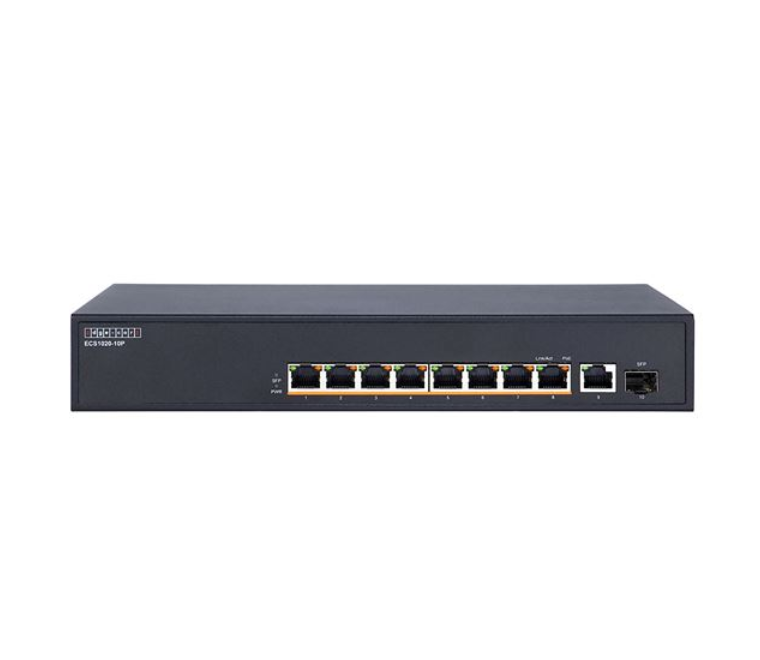

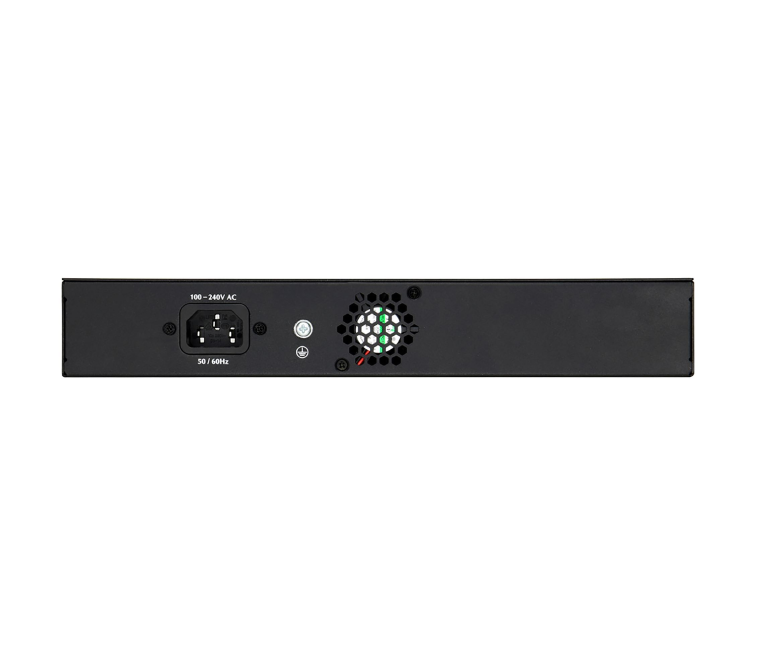

Edgecore ECS1020-10P (1 SFP & 8 PoE) Gigabit Unmanaged PoE Ethernet Router
- Port
- RJ45 10/100/1000 BASE-T Ports: 9
- SFP Uplink Ports: 1 (1G/100M)
- PoE Ports: 8
- 9 ports 10/100/1000Base-T + 1 port 1G SFP uplink ports with 8 port PoE (140W) Unmanaged Gigabit Ethernet Switches
- Warranty : 1 Year
- Performance
- Switching Capacity: 20Gpbs
- Forwarding Rate: 14.9Mpps
- Packet Buffer: 1.5Mbits
- MAC Address Table: 4K
- Jumbo Frames: 9K
- MTBF: TBD
- Heat Dissipation: 18.2 (kcal/h)
- Acoustic Noise: 49dB (A)
- Power Supply
- 100V-240V AC, 50-60Hz: Yes
- Max System Power Consumption: 163W
- PoE
- IEEE 802.3af/802.3at: Yes
- PoE Power Budget: 140W
- Mechanical
- Rack Space: 13"
- Form Factor: Rackmount
- Dimensions (W x D x H): 280 x 180 x 44mm (11.02 x 7.09 x 1.73")
- Weight : 1.70kg
- Environmental
- Operating Temperature: -0°C~40°C
- Storage Temperature : -40°C~70°C
- Operating Humidity
- (non-condensing): 10%~90%
- Storage Humidity
- (non-condensing): 10%~90%
- WEEE: Yes
- RoHS: Yes
