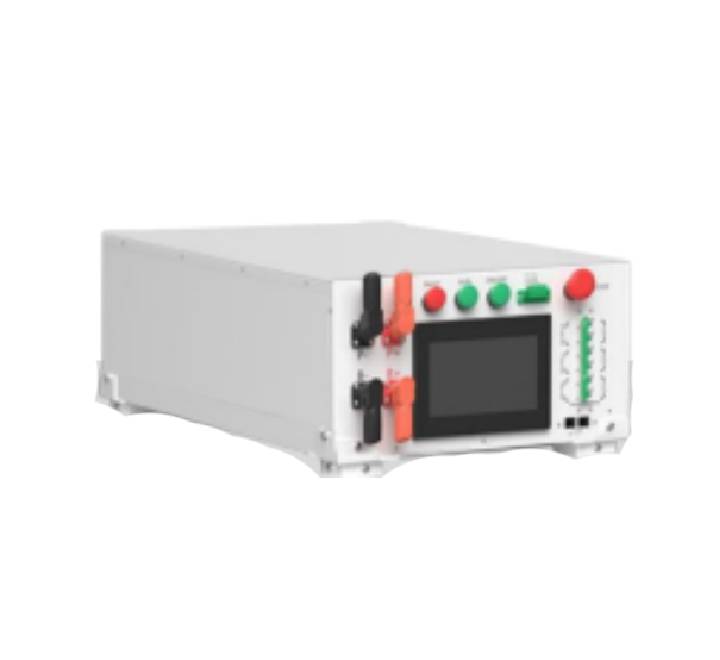

Dragon Power DPHC-1000300-R High Voltage Controller Module (300A Heavy Industrial Edition)
Deploy elite-tier energy management for mega-watt class storage arrays with the Dragon Power DPHC-1000300-R High Voltage Controller Module. Engineered specifically to serve as the master system brain for heavy commercial, utility-scale, and industrial energy storage frameworks across Myanmar, this heavy-duty controller module delivers structural monitoring, balancing, and safety isolations for extreme energy demands.
The DPHC-1000300-R is optimized for large-scale multi-battery storage layouts (specifically matching DPHB-64330-LFP-R 300Ah battery module strings or related commercial arrays). Boasting an industrial-grade 300 Amperes continuous current capacity, this unit operates across a wide-voltage architecture to manage high-throughput energy paths between high-output three-phase hybrid inverters and complex battery banks, mitigating grid risks throughout Yangon, Mandalay, and regional industrial zones.
Key Features & Industrial Highlights
- Massive 300A Continuous Current Throughput: Engineered to process a sustained charging and discharging rate of up to ±300A continuous load, making it ideal for large factories and high-capacity micro-grids.
- Wide-Voltage Protection Matrix: Monitors and protects battery strings across a broad high-voltage spectrum from 200V up to 1000V, maintaining stable operational parameters between 224V and 950V.
- Intelligent Thermal and Fault Safeguards: Real-time monitoring prevents over-discharge, over-charge, cells unbalance, and excessive thermal escalation under harsh seasonal operating conditions.
- Multi-Drop CAN & RS485 Communication: Dual-channel communication links telemetry data between industrial inverters, the battery cluster, and remote monitoring software.
- Ruggedized Server Rack Chassis: Built within a durable, standard-rack footprint with an IP20 ingress rating, engineered for long-term installation inside ventilated industrial control enclosures.
- 5-Year Enterprise Parts & Service Warranty: Backed by a full local 5-year commercial warranty program covering parts and dedicated technical system assistance.
Technical Specifications Table
Review the electrical limitations, safety thresholds, and structural measurements for the Dragon Power DPHC-1000300-R control system:
| Specification Parameter | Official Industrial Datasheet Details |
|---|---|
| Brand & Model Identifier | Dragon Power DPHC-1000300-R (300A Series) |
| Designed Array Compatibility | DPHB-64330-LFP-R (300Ah High Voltage Stacks) & Industrial Cells |
| Total System Voltage Range | 200 VDC to 1000 VDC Max Threshold |
| Active Working Voltage Bus | 224 VDC to 950 VDC Stable Operation Window |
| Maximum Continuous Current Load | -300A to +300A Continuous Charging / Discharging Array Range |
| Data Communication Protocol | Dual CAN Bus / RS485 Industrial Multi-Link Ports |
| Enclosure & Ingress Grade | IP20 Steel Housing (Rack-Mounted Climate Controlled Setup) |
| Physical Unit Scale (W x D x H) | 447mm × 885mm × 265mm |
| Net Hardware Weight | 23.5 Kg (Reinforced 300A Busbar Design) |
| Operating Temperature Limits | -10°C Minimum to +60°C Maximum Ambient Temperature Window |
| Warranty Infrastructure Status | 5 Years Factory Commercial Hardware Support |
