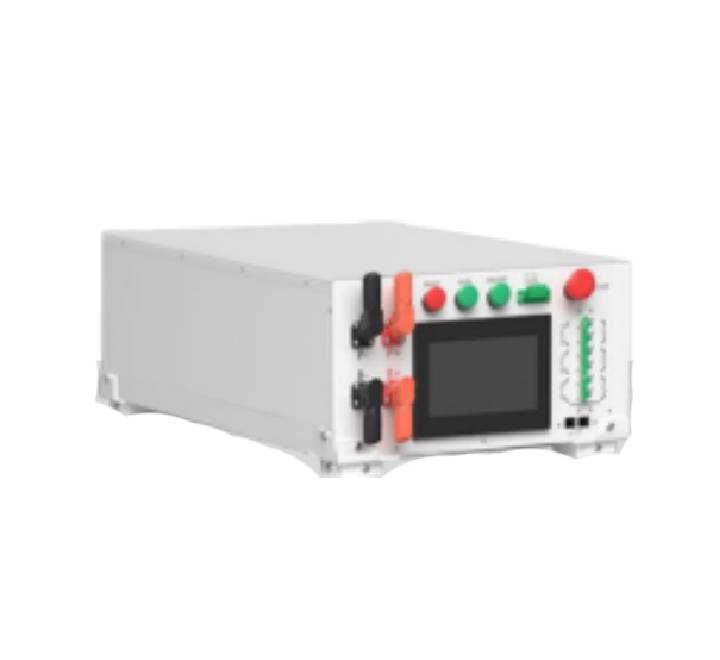

Dragon Power DPHC-1000100-R High Voltage Controller Module
Orchestrate, protect, and optimize high-capacity commercial energy storage networks with the industrial-grade Dragon Power DPHC-1000100-R High Voltage Controller Module. Engineered explicitly as the core management intelligence for high-voltage energy arrays, this module provides the vital safety, balancing, and processing architecture required to operate large scale systems safely under the erratic electrical grid grid environments common across Myanmar.
The DPHC-1000100-R is precision-tailored to manage advanced multi-battery storage layouts (specifically optimized for DPHB-64300-LFP-R or related high-capacity storage configurations). Operating across a flexible wide-voltage spectrum, this module functions as an industrial master-BMS, preventing catastrophic cellular overcharging, monitoring thermal gradients, and managing high-amperage directional shifts between commercial hybrid inverters and your storage arrays.
Key Features & Technical Highlights
- Ultra-Wide Voltage Management Spectrum: Capable of tracking a structural voltage scope between 200V and 1000V, with a stabilized active running threshold performance between 224V and 950V.
- High Current Management Capacity: Handles a maximum continuous charge and discharge load profile of up to ±100A, featuring built-in rapid-action peak threshold dampening protection up to 110A (5S window).
- Seamless Master Cluster Communication: Integrated Dual CAN and RS485 communication protocols provide instantaneous telemetry data routing directly to industrial inverter frameworks.
- Industrial Rack-Mount Enclosure: Housed within a standard server-depth, ruggedized steel chassis rated at IP20 ingress protection, ensuring reliable heat shedding and easy component replacement.
- Severe Thermal Safety Window: Engineered to process stable system intelligence continuously across rigorous seasonal fluctuations, handling ambient room environments from -10°C up to 60°C.
- 5-Year Comprehensive Enterprise Warranty: Supported by a trusted local 5-year commercial warranty policy protecting parts and system service functionality.
Technical Specifications Table
Review the electrical tolerances, safety margins, and physical infrastructure constraints for the Dragon Power DPHC-1000100-R system:
| Specification Parameter | Factory Integration Datasheet Details |
|---|---|
| Brand & Model Number | Dragon Power DPHC-1000100-R |
| Target Array Compatibility | DPHB-64300-LFP-R Battery Module Storage Layouts |
| Total Rated Voltage Range | 200V to 1000V High Voltage Threshold |
| Active Operating Voltage Window | 224V to 950V Stable Operational Bus |
| Maximum Charging Current Limit | -100A / +100A Continuous (Pack protection peaks at 110A for 5 seconds) |
| System Interface Telemetry | Industrial Standard CAN / RS485 Data Bus Ports |
| Ingress & Chassis Sealing Grade | IP20 Enclosure Rating (Indoor Vent-Cooled Rack Application) |
| Physical Chassis Scale (W x D x H) | 447mm × 885mm × 265mm |
| Net Hardware Mass Weight | 21.0 Kg Total |
| Operational Thermal Envelope | 14°F to 140°F (-10°C to +60°C Room Air Window) |
| Warranty Infrastructure Status | 5 Years Authorized Manufacturer System Protection |
