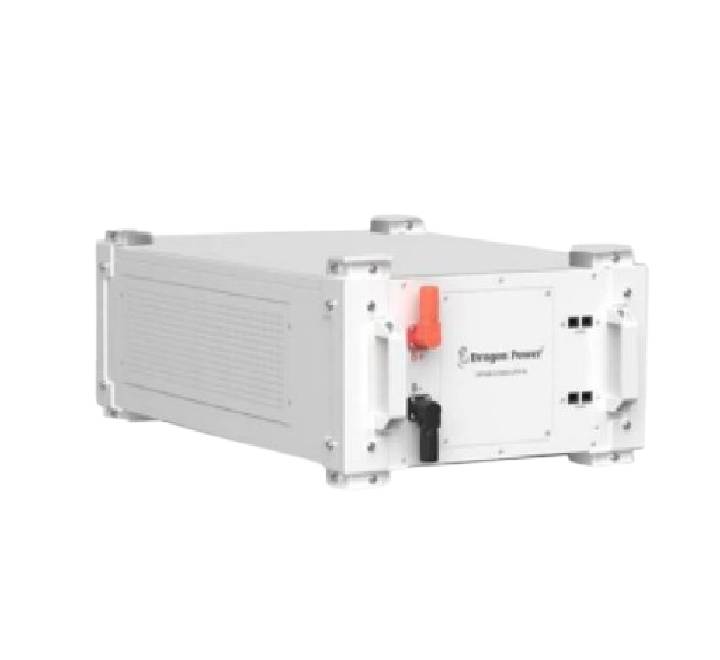

Dragon Power DPHB-64330-LFP-R LiFePO4 Battery Module (19.2kWh / 300Ah)
Secure premium, high-density energy storage with the Dragon Power DPHB-64330-LFP-R Lithium Iron Phosphate (LiFePO4) battery module. Engineered specifically to tackle the demanding power infrastructure challenges and frequent blackouts across Myanmar, this industrial-grade 64V 300Ah battery module provides a massive 19.2kWh capacity. It serves as an ultra-reliable backbone for enterprise backup systems, server complexes, and large-scale solar arrays.
Built with high-grade LiFePO4 cell technology, the DPHB-64330-LFP-R delivers unmatched thermal stability, a highly prolonged cycle life compared to traditional lead-acid options, and integrated modular flexibility designed to scale with your specific high-voltage electricity demands.
Key Features & Professional Highlights
- High Energy Density & Capacity: Generates a massive 19.2kWh energy yield out of a single standalone unit with its 64V 300Ah configuration.
- Advanced Built-In BMS Protection: Outfitted with an intelligent Battery Management System (BMS) that monitors internal parameters, establishing automatic safeguards between minimum (52V) and maximum (73V) operating thresholds.
- Unmatched Structural Durability: Housed within an industrial-tier chassis rated at IP20 protection, built specifically to perform efficiently inside standard high-voltage control racks.
- Long-Term Service Lifespan: Offers up to 6,000+ deep discharge cycles at 80% Depth of Discharge (DoD), significantly reducing system replacement overhead.
- Comprehensive 8-Year Enterprise Warranty: Comprises a robust coverage structure featuring a 5-Year Full Replacement Warranty backed further by a 3-Year Service Warranty.
Technical Specifications Table
Review the physical footprint, electrical properties, and technical limitations of the Dragon Power DP-64330 module:
| Specification Parameter | Factory Datasheet Details |
|---|---|
| Brand & Model | Dragon Power DPHB-64330-LFP-R |
| Battery Cell Type | Lithium Iron Phosphate (LiFePO4) |
| Total Rated Energy Capacity | 19.2 kWh / 300 Ah |
| Nominal Operating Voltage | 64V |
| BMS Safe Voltage Range | 52V (Min Cut-Off) to 73V (Max Cut-Off) |
| Ingress Protection Rating | IP20 Ingress Rating |
| Net Module Weight | 144.3 Kg |
| Physical Dimensions (W x D x H) | 885mm × 447mm × 265mm |
| Warranty Period | 8 Years Total (5 Years Full + 3 Years Service Support) |
