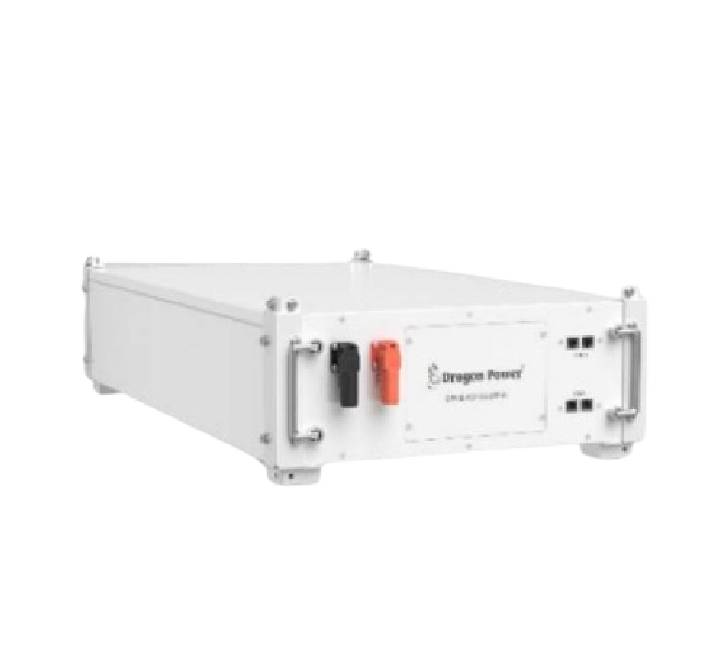

Dragon Power DPHB-102100-LFP-R High Voltage LiFePO4 Battery
Empower your residential, commercial, or industrial energy setup with the Dragon Power DPHB-102100-LFP-R High Voltage LiFePO4 Battery. Specifically engineered to combat grid instability and frequent power outages in Myanmar, this high-voltage lithium iron phosphate battery module delivers a massive 10.24kWh capacity at a 102.4V nominal voltage. Featuring a modular stackable design, high round-trip efficiency, and an advanced intelligent Battery Management System (BMS), it is the ultimate energy storage backbone for high-performance solar hybrid inverters and enterprise backup arrays.
Key Features & Performance Highlights
- High Voltage Architecture: Operates at a nominal 102.4V, drastically minimizing current transmission losses and optimizing energy conversion performance across large setups.
- Massive Energy Density: Delivers a reliable 10.24kWh (100Ah) energy reserve per standalone module, easily scalable for modular multi-string configurations.
- Tier-1 A+ LiFePO4 Cell Technology: Employs ultra-stable lithium iron phosphate chemistry providing superior thermal stability, safety, and deep-cycle lifespan.
- Intelligent Smart BMS: Outfitted with robust protection parameters (safe thresholds between 83.2V min and 116.8V max) safeguarding against overcharging, deep discharge, over-current, and thermal variations.
- Extended Operating Lifespan: Engineered for thousands of deep-discharge cycles, offering up to 5 times the operational longevity of standard lead-acid setups.
- Comprehensive Enterprise Warranty: Backed by a trusted 8-year warranty framework (5-Year Full Replacement Warranty + 3-Year Service Warranty).
Dragon Power DPHB-102100-LFP-R Specifications Table
| Specification Parameter | Factory Datasheet Details |
|---|---|
| Brand & Model | Dragon Power DPHB-102100-LFP-R |
| Battery Module Capacity | 100Ah / 10.24kWh |
| Cell Chemistry Type | LiFePO4 (Lithium Iron Phosphate) |
| Normal / Nominal Voltage | 102.4V |
| BMS Voltage Limits | Max: 116.8V | Min: 83.2V |
| IP Protection Grade | IP32 |
| Physical Dimensions (W x H x L) | 850mm × 158mm × 480mm |
| Net Weight | 93 Kg |
| Warranty Coverage | 8 Years Total (5 Years Fully Warranty + 3 Years Services Warranty) |
