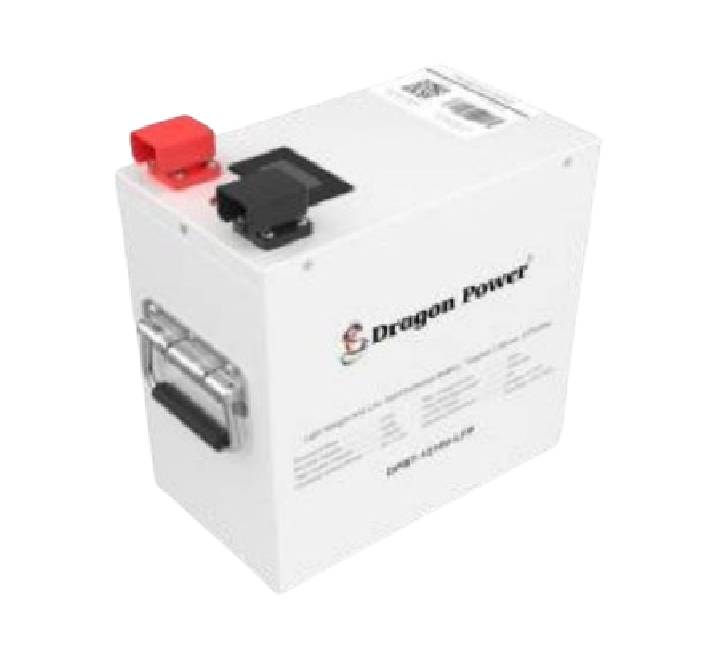

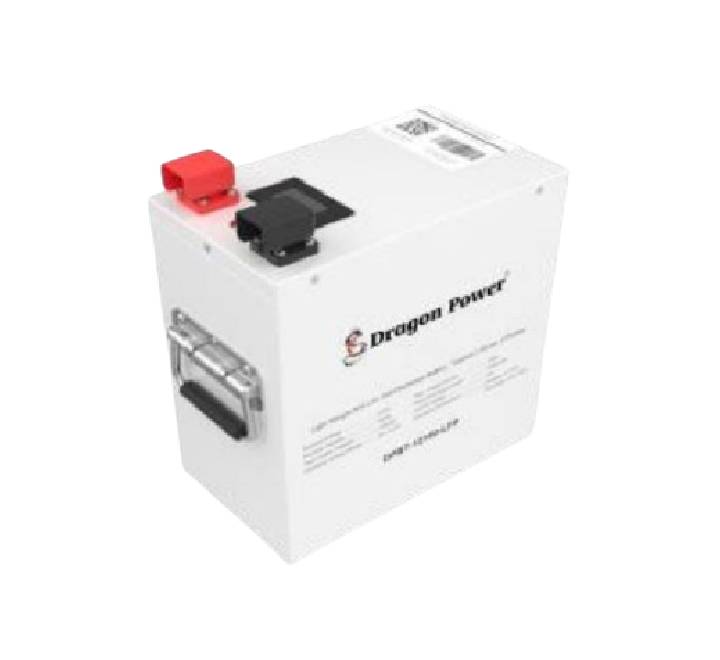

Secure absolute energy independence and resilient backup power with the premium Dragon Power DPBT-12100 LFP 12.8V 100Ah Lithium Iron Phosphate (LiFePO4) Battery. Engineered specifically to combat blackouts, voltage drops, and off-grid energy challenges across Myanmar, this commercial-grade deep-cycle battery delivers a massive 1280Wh of stored energy. Whether you are running essential home appliances in Yangon, stabilizing corporate servers in Mandalay, or storing clean solar energy in Naypyitaw, the Dragon Power DPBT-12100 offers an elite, maintenance-free alternative to outdated, heavy lead-acid configurations.
Key Features & Core Power Architecture
1. Advanced Grade-A Lithium Iron Phosphate (LiFePO4) Cells
The Dragon Power DPBT-12100 is engineered with premium Lithium Iron Phosphate cells, offering superior chemical and thermal stability over standard lithium-ion packs. This battery entirely eliminates risks of thermal runaway, acid leaks, and gas emissions, making it completely safe for indoor installations and living spaces.
2. Intelligent Integrated Battery Management System (BMS)
Equipped with a built-in automated protective smart BMS, the battery constantly monitors voltage, thermal metrics, and load thresholds. It self-regulates to protect against overcharging, over-discharging, over-current spikes, short circuits, and extreme ambient operational temperatures, maximizing structural cell lifespan.
3. Extreme Lifespan with 2000+ Deep Cycle Operations
While traditional lead-acid or gel batteries fade within a couple hundred recharges under heavy usage, the DPBT-12100 delivers an exceptional cycle life of ≥2000 deep cycles at 80% Depth of Discharge (DOD). This represents up to 10 years of dependable, daily cycling and vastly reduces long-term operational replacement costs.
4. Lightweight, Ultra-Compact Sizing for Multi-Scenario Setup
Weighing approximately 12.6 kg, this LFP battery is roughly 50% lighter than equivalent capacity AGM or lead-acid blocks. This optimized footprint makes handling and installation incredibly fast, whether you are setting up tight RV compartments, compact marine vessels, wall-mounted solar banks, or office UPS racks.
5. Scalable Architecture with Flexible Serial/Parallel Support
Need more voltage or massive current reservoirs? The Dragon Power DPBT-12100 supports custom modular scalability up to a maximum 4S4P configuration array. This flexibility lets you expand capacity effortlessly to power high-draw home hybrid inverters and complex industrial solar systems.
Full Technical Specifications
| Specification Category | Product Details & Parameter Ratings |
|---|---|
| Brand & Line | Dragon Power LFP Series |
| Model Number | DPBT-12100 (12.8V 100Ah) |
| Chemistry Profile | Lithium Iron Phosphate (LiFePO4) |
| Nominal System Voltage | 12.8V (Standard 12V System Equivalent) |
| Rated Storage Capacity | 100Ah @0.2C Rate |
| Total Battery Energy | 1280 Wh (Watt-Hours) |
| Cycle Life Rating | ≥2000 Cycles @ 0.2C Charge/Discharge (80% DOD) |
| Standard Charge Voltage | 14.6V ± 0.2V (CC/CV charging mode profile) |
| Standard Charging Current | 20A (Maximum continuous charging limited up to 40A/50A) |
| Max Continuous Discharge Current | 100A (Capable of powering continuous 1200W inverter loads) |
| Discharge Cut-off Safety Threshold | 9.2V – 10.0V (BMS automatic low-voltage drop isolation) |
| Operating Ambient Temperature Range | Charge: 0°C to 45°C | Discharge: -20°C to 60°C |
| Chassis Material & Waterproofing | Heavy-Duty Impact Resistant ABS Case | IP55 Protection Rating |
| Physical Body Dimensions (LxWxH) | 328 x 172 x 215 mm (Approximate structural framing size) |
| Net Structural Weight | Approx. 12.6 kg (27.7 lbs) |
| Terminal Node Interface | M8 Industrial Screw Bolt Stud Terminals |
