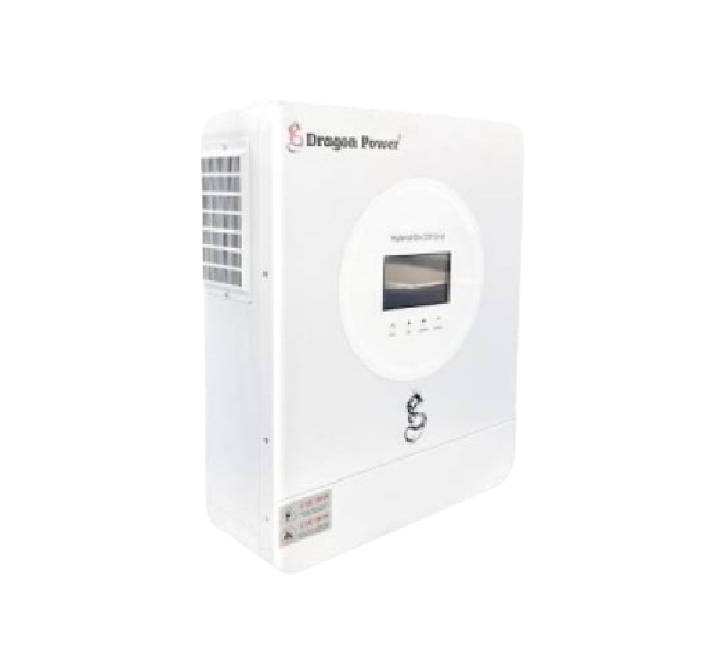

Dragon Power DP-6248-VMH 6.2KVA / 6200W Off-Grid Hybrid Solar Inverter
Empower your home infrastructure or business operations with the heavy-duty Dragon Power DP-6248-VMH. Specifically optimized to combat persistent rolling blackouts and unpredictable electrical grid variations across Myanmar, this robust 6200W off-grid hybrid solar inverter provides clean, uncompromised power density. Operating on a highly efficient 48VDC battery configuration, it serves as an excellent intermediate power station for large residential properties, server rooms, clinical refrigeration, and retail shops.
The DP-6248-VMH comes integrated with a high-capacity 120A MPPT solar charge controller capable of managing up to 6500W of photovoltaic arrays. With a wide solar open-circuit tracking window spanning up to 500VDC, this inverter minimizes electrical transmission line losses while maximizing daylight generation across Yangon, Mandalay, and regional off-grid territories.
Key Features & Operational Highlights
- Substantial 6200W Continuous Pure Sine Wave Output: Provides heavy-duty, clean electricity capable of starting and running inductive loads such as air conditioning units, heavy water pumps, large refrigerators, and delicate computer arrays simultaneously.
- Advanced 48VDC Low-Loss Architecture: Maximizes systemic efficiency and longevity by pairing with standard 48V battery setups (such as a single 48V Lithium LiFePO4 module array) to ensure balanced electrical delivery under maximum sustained loads.
- Integrated 120A MPPT Solar Charge Controller: High-amperage Maximum Power Point Tracking automatically paths up to 120 Amps of clean solar current to charge battery banks quickly when power cuts hit.
- Generous 6500W PV Solar Input Capacity: Allows you to overshoot nominal ratings by installing up to 6.5kW of solar panel strings, driving direct daytime appliance tracking straight from incoming sunlight.
- Dual Smart Output Management: Features specialized dual AC output channels that automatically prioritize your critical household loads when backup batteries start tracking low.
- 5-Year Extended Local Warranty Protection: Backed by a verified 5-year commercial factory warranty framework consisting of 2 Years for Replacement Parts and 3 Years of dedicated Service Support.
Technical Specifications Table
Verify the precise electrical design thresholds and load limits for the Dragon Power DP-6248-VMH system framework:
| Specification Parameter | Official Factory Performance Details |
|---|---|
| Brand & Model Name | Dragon Power DP-6248-VMH (Off-Grid Series) |
| Inverter Rated Continuous Power | 6.2 KVA / 6200 Watts Steady Load Handling |
| DC System Battery Input Requirement | 48 VDC Nominal (Max 140A DC Operational Input Current) |
| AC Waveform & Voltage Standard | 230VAC Pure Sine Wave (50Hz / 60Hz Self-Sensing) |
| AC Utility Charger Mode Output | Input: 230VAC Nominal (41A Max) | Output: 54VDC Standard (100A Max Charging) |
| Solar Charge Controller Architecture | Built-in MPPT (Maximum Power Point Tracking Mode) |
| Maximum MPPT Charging Current Capacity | 120 Amperes Max Charging Output |
| Solar Panel Array Tracker Range (VOC) | 60 VDC to 500 VDC Open Circuit Maximum Voltage Window |
| Maximum Photovoltaic (PV) Array Power | 6500 Watts Total Solar Array Pairing Limit |
| Physical Scale Dimensions (W x D x H) | 350mm × 420mm × 110mm |
| Operational Climate Envelope | -10°C Minimum to 50°C Maximum Ambient Temperature Window |
| Warranty Framework Program | 5 Years Total (2 Years Local Parts Replacement + 3 Years Service Maintenance) |
