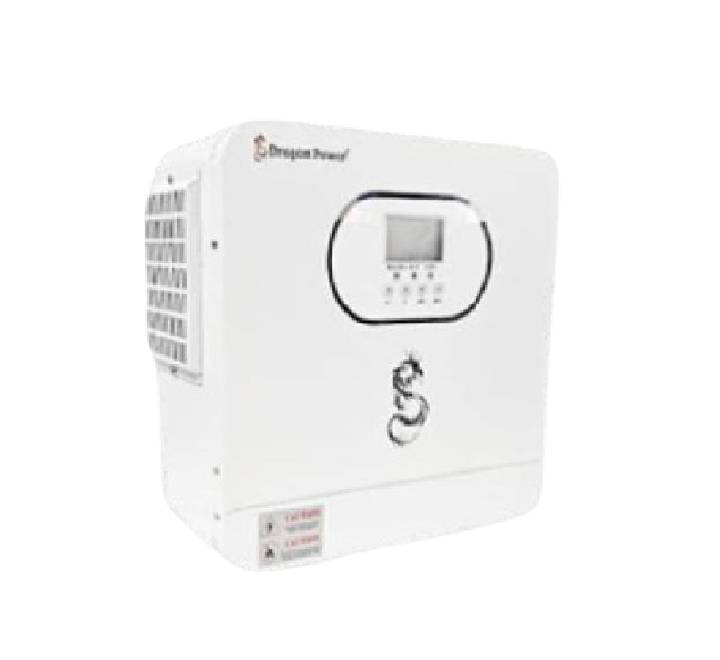

Dragon Power DP-3524-S VMH 3.5KVA / 3500W High Frequency Off-Grid Hybrid Inverter
Keep your home essentials and office equipment running smoothly through unpredictable power outages with the Dragon Power DP-3524-S VMH. Specifically engineered for reliable off-grid deployment across Myanmar, this 3500W high-frequency hybrid solar inverter is a compact, cost-effective solution for residential properties, small shops, and remote workspaces. Utilizing a smart 24VDC battery architecture, it lowers your initial setup investment while delivering pure sine wave stability.
The DP-3524-S VMH features a powerful built-in 100A MPPT solar charge controller that accepts up to 4000W of solar panels. With its wide 30VDC to 500VDC solar input window, this inverter allows for efficient high-voltage panel string configurations, maximizing daily energy collection even during overcast conditions in Yangon and Mandalay.
Key Features & Performance Highlights
- Continuous 3500W Pure Sine Wave Output: Safely powers sensitive electronics, laptops, desktop computers, TVs, fans, lighting, and medium domestic appliances without risk of electrical noise or damage.
- High-Efficiency 24VDC Battery Design: Lowers battery costs by operating on a 24V system (requiring just two standard 12V batteries or a single 24V Lithium LiFePO4 pack) instead of more expensive 48V configurations.
- Integrated 100A MPPT Solar Charger: Advanced Maximum Power Point Tracking routes up to 100 Amps of clean solar current directly into your battery banks for rapid recharging.
- Generous 4000W PV Array Power Limit: Connect up to 4000W of solar panels to maximize solar self-consumption and run loads directly from the sun during daytime hours.
- High-Frequency Transformerless Architecture: Features a lightweight, slim profile that offers exceptional power density, making it easy to mount on vertical walls where space is limited.
- 5-Year Extended Factory Warranty: Peace of mind guaranteed with a comprehensive 5-year coverage structure, consisting of 2 Years for Replacement Parts and 3 Years of dedicated Service Support.
Technical Specifications Table
Review the exact input/output voltage tolerances and load boundaries of the Dragon Power DP-3524-S VMH inverter system:
| Specification Parameter | Official Factory Datasheet Details |
|---|---|
| Brand & Model Name | Dragon Power DP-3524-S VMH (High Frequency) |
| Inverter Rated Output Capacity | 3.5 KVA / 3500 Watts Continuous Load Ceiling |
| DC System Battery Input | 24 VDC Nominal Operating Line (158A Max DC Input Current) |
| AC Waveform & Voltage Output | 230VAC Pure Sine Wave (50Hz/60Hz Self-Adaptive) |
| AC Utility Charger Mode Parameters | Input: 230VAC (23.5A Max) | Output: 27VDC Standard (80A Max Charging) |
| Solar Charge Controller Type | Built-in MPPT (Maximum Power Point Tracking) |
| Maximum MPPT Charging Current | 100 Amperes Maximum Array Current Throughput |
| Solar Array Voltage Window (VOC) | 30 VDC to 500 VDC Open Circuit Voltage Tracker Range |
| Maximum PV Input Capacity | 4000 Watts Total Solar Panel Array Power |
| Physical Scale Dimensions | Width 335mm × Height 310mm × Length 103mm (Slim Form Factor) |
| Operating Climate Envelope | -10°C Minimum to 55°C Maximum Ambient Warmth |
| Warranty Protection Program | 5 Years Total (2 Years Local Parts Replacement + 3 Years Service Maintenance) |
