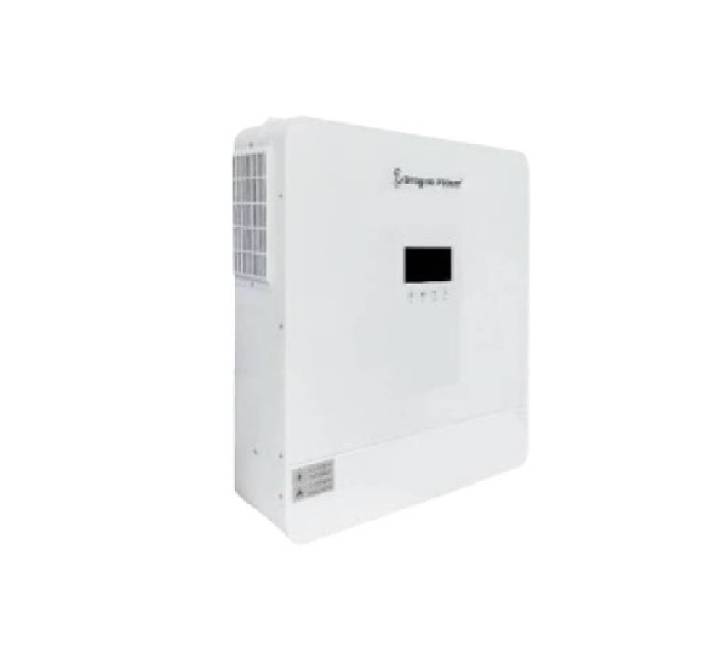

Dragon Power DP-11048-P 11KVA / 11000W On & Off-Grid Hybrid Solar Inverter
Take absolute control over your energy independence with the heavy-duty Dragon Power DP-11048-P Solar Inverter. Specifically engineered to provide continuous, high-capacity electricity during frequent grid blackouts across Myanmar, this advanced 11000W hybrid system functions seamlessly across both On-Grid and Off-Grid modes. Equipped with true Parallel Functionality, the DP-11048-P allows scalable system expansion by linking multiple units together to support larger residential properties, heavy home commercial appliances, or small enterprise infrastructures.
Featuring a high-efficiency dual MPPT solar charger tracking network that supports up to 11000W of total PV input, this 48Vdc pure sine wave workhorse transforms unpredictable solar energy into clean, reliable power while extending your underlying backup battery life.
Key Features & Performance Highlights
- High Output Capacity (11KVA / 11000W): Massive power ceiling engineered easily to run air conditioners, water pumps, refrigerators, and sophisticated office equipment simultaneously.
- Scalable Parallel Operation: Built-in parallel card integration lets you hook up multiple units concurrently, meaning your energy infrastructure can expand comfortably as load requirements grow.
- Dual 5500W PV Array Tracking: Dual independent solar inputs allow optimal positioning of solar panel strings at different orientations, maximizing sunlight absorption throughout the afternoon.
- Wide MPPT Voltage Spectrum (60VDC to 500VDC): The high Open Circuit Voltage capacity (up to 500Voc) reduces string architecture complexity, decreasing installation and balance-of-system cost.
- Smart 48V Charging Management: Delivers a potent 80A maximum AC charging circuit and a massive 160A solar charging limit to refresh high-capacity LiFePO4 batteries rapidly between blackout periods.
Technical Specifications Table
Examine the precise electrical data, operating climate tolerances, and dimension parameters for the Dragon Power DP-11048-P:
| Specification Parameter | Factory Performance Datasheet |
|---|---|
| Brand & Model Name | Dragon Power DP-11048-P (With Parallel Function) |
| Inverter Mode Rated Power | 11 KVA / 11000 Watts Regular Load Continuous |
| DC Battery System Input | 48 VDC, 220A Nominal Max |
| AC Voltage Output Grid Compatibility | 220VAC, 230VAC, 240VAC Pure Sine Wave Output |
| AC Utility Charger Metrics | Input: 170-280VAC (50/60Hz, 60A) | Output: 54VDC, 80A Max |
| Solar Charger Maximum Current | 160A Max Charging Current Architecture |
| Maximum Solar Voltage Array Window | 60 VDC to 500 VDC Open Circuit (VOC) Max System Voltage |
| Max Recommended PV Array Power | 11000 Watts Total (Optimized as Dual 5500W Inputs) |
| Physical Form Dimensions | Width 460mm × Height 535mm × Length 120mm |
| Operating Temperature Tolerance | -10°C Minimum to 55°C Maximum Ambient Heat |
| Warranty Allocation Structure | 5 Years Total Protection (2 Years Replacement Parts + 3 Years Service) |
