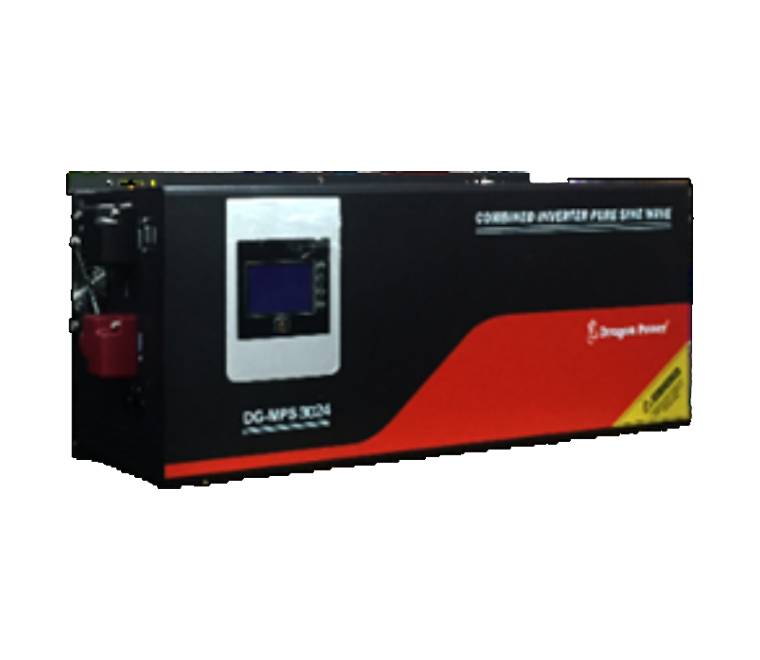

Dragon Power DG-MPS-3024 3kVA / 2400W Combined Pure Sine Wave Hybrid Inverter
Achieve robust, uninterrupted energy security for your residential property, commercial office, or retail inventory with the high-performance Dragon Power DG-MPS-3024 Combined Inverter. Engineered specifically to tackle the challenges of rolling blackouts, grid instability, and daily load shedding across Myanmar, this comprehensive hybrid machine seamlessly unifies a pure sine wave power inverter, a smart multi-stage AC battery charger, and an integrated solar power management module into a singular, wall-mounted chassis.
Operating on a balanced 24VDC battery architecture, the DG-MPS-3024 handles a continuous load capacity of 2400 Watts. It features a premium Pure Sine Wave Output waveform that perfectly simulates clean utility grid power. This guarantees that your sensitive home electronics, high-speed Wi-Fi arrays, water pumps, refrigerators, and entertainment systems run completely silent, cool, and free from the damaging harmonic distortion common to cheap modified wave alternatives.
Key Features & Structural Highlights
- Continuous 2400W Pure Sine Wave Output: Delivers clean, stable AC power designed to run critical electronic loads, high-end desktop computers, security cameras, and inductive domestic motors safely.
- Integrated 50A PWM Solar Charge Controller: Built-in Pulse Width Modulation (PWM) solar module paths clean photovoltaic currents straight from your panel array to continuously replenish your backup battery banks.
- Efficient 24VDC Low-Loss Architecture: Uses a 24V configuration (two 12V deep-cycle batteries wired in series) to decrease operational line currents, reducing cable heat generation and boosting efficiency under sustained loads.
- Smart Power Priority Configuration: Highly programmable logic lets you prioritize energy paths via the LCD screen. Choose between Solar First, Utility Grid First, or Battery Backup First to minimize fuel or electricity expenses.
- High-Speed Automatic Transfer Switching (UPS Function): Seamlessly shifts power sources within milliseconds during sudden blackouts, preventing critical computer rigs from resetting and keeping communication networks active.
- Intelligent Intelligent Protection Guard: Outfitted with safety circuits providing robust protection against Overloads, Short Circuits, High Temperatures, Overcharging, and Deep Discharge Battery Damage.
Technical Specifications Table
Verify the precise electrical parameters, environmental thresholds, and solar design ceilings for the Dragon Power DG-MPS-3024 system:
| Specification Parameter | Official Factory Performance Details |
|---|---|
| Brand & Model Name | Dragon Power DG-MPS-3024 (Combined Series) |
| Apparent Power System Rating | 3000 VA / 3 kVA |
| Continuous Active Power Capacity | 2400 Watts Steady-State Handling |
| Output Waveform Configuration | Pure Sine Wave (Clean Utility Line Simulation) |
| Nominal DC System Input Voltage | 24 VDC (Requires 2x 12V Batteries Connected in Series) |
| AC Input/Output Operating Range | Input: 230VAC Standard | Output: 230VAC ± 5% Single Phase (50Hz/60Hz Self-Sensing) |
| Built-in Solar Charger Type | PWM (Pulse Width Modulation) Management Framework |
| Maximum Solar Charging Current | 50 Amperes Peak DC Charging Capacity |
| Maximum Solar Array Input Voltage (VOC) | 60 VDC Maximum Absolute Open-Circuit Open Voltage |
| Maximum Utility Grid Charging Current | 20 Amperes or 30 Amperes (Selectable via Menu Settings) |
| UPS Transfer Switch Speed | 10ms Typical (For Computers) | 20ms Max (For General Home Appliances) |
| Physical Scale Structural Outline | Compact Wall-Mounted Space Architecture Layout |
| Local Technical Service Protection | 5-Years Local Authorized Distributor Warranty Support Plan |
