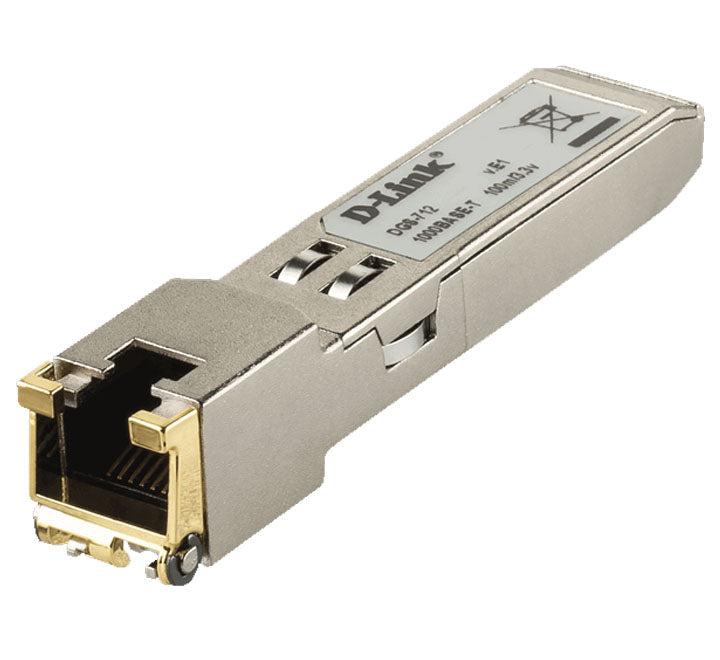

D-Link DGS-712: High-Performance 1000BASE-T Copper SFP Transceiver Module for Myanmar Networks
The D-Link DGS-712 is an enterprise-grade, high-speed 1000BASE-T Copper Small Form-factor Pluggable (SFP) Transceiver designed to extend the hardware utility of standard SFP optical switch slots across Myanmar's expanding business networks. Engineered for high-density server racks, data centers, and corporate IT rooms in Yangon, Mandalay, and Naypyitaw, this hot-pluggable module effortlessly converts a standard Gigabit SFP slot into a full-wire Gigabit Ethernet copper port—allowing seamless connection to legacy networking equipment via standard twisted-pair infrastructure.
Operating via a true **Hot-Pluggable MSA compliant architecture**, the DGS-712 allows network administrators to insert, replace, or upgrade the transceiver on-the-fly without causing disruptive network reboots or core system downtime. Capable of driving reliable data payloads at full wire speeds across distances of up to 100 meters over standard Category 5/5e/6 copper cabling, this module delivers low-latency transmission for high-speed server links, storage area networks (SAN), and localized uplink trunks.
Key Hardware & Performance Features
- 1000BASE-T Copper Conversion: Instantly converts a standard fiber SFP port into an active high-speed Gigabit RJ45 copper interface port without buying costly replacement line cards.
- 100-Meter Operational Range: Guarantees error-free, full-duplex data transmissions up to 100 meters using standard Cat5, Cat5e, or Cat6 network patch cords.
- Hot-Pluggable Form Factor: Insert or remove the module from any compatible D-Link managed or unmanaged switch slot without powering down network nodes or causing server outages.
- Multi-Source Agreement (MSA) Compliance: Built to strict industry-wide physical and electrical interoperability standards—ensuring absolute physical system compatibility.
- Low Power Consumption & Dissipation: Designed with an energy-efficient internal chip-set architecture that minimizes thermal loading inside dense, high-capacity switch setups.
- Durable Metallic Housing: Constructed with heavy-duty zinc alloy packaging to reduce electromagnetic interference (EMI) while optimizing heat dissipation inside server environments.
D-Link DGS-712 Technical Specifications Datasheet
| Hardware Parameter | Official Factory Technical Specification |
|---|---|
| Model Code | DGS-712 (Standard Copper Series) |
| Transceiver Type | SFP (Small Form-factor Pluggable) Module |
| Interface Standard | IEEE 802.3ab 1000BASE-T Gigabit Ethernet |
| Connector Port Interface | 1 x RJ45 Female Data Port (Auto MDI/MDIX sensing) |
| Maximum Link Speed | 1000 Mbps (1 Gbps) Full-Duplex Operational Mode |
| Cabling Media Support | Category 5, 5e, 6 Unshielded Twisted Pair (UTP) or Shielded Twisted Pair (STP) |
| Max Link Range Distance | Up to 100 meters (328 feet) |
| Hot-Pluggable Support | Yes (MSA Compliant Architecture) |
| Input Voltage / Power Line | 3.3V DC Supply Voltage (Powered via host system SFP port slot) |
| Casing Material | Zinc Alloy Die-Cast Metal Structure |
| Safety & EMI Standard Compliance | FCC Class B, CE Class B, VCCI Class B, TUV, UL, RoHS Compliant |
| Physical Module Dimensions | 58.8 x 13.7 x 12.8 mm |
| Net Hardware Weight | Approximately 30 grams |
| Operational Temperature Scope | 0°C to 70°C (Standard commercial grade deployment envelope) |
| Storage Temperature Scope | -40°C to 85°C |
