Next-Generation L2+ Smart Managed Switch for Growing Myanmar Enterprises

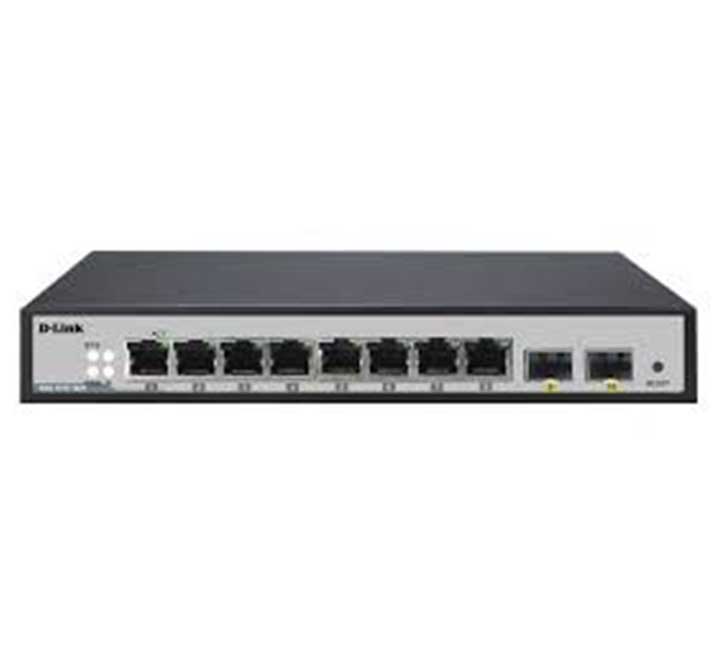

The D-Link DGS-1210-10H is a business-grade, 10-port Web Smart Managed Gigabit switch built to manage network architectures for SMEs, distributed branch offices, and professional IP surveillance configurations. Engineered with 8 dedicated 10/100/1000 Mbps RJ45 ports and 2 dedicated Gigabit SFP fiber uplink ports, this network switch provides flexible fiber-optic backhaul extensions without bottlenecking localized data lines. Featuring advanced security utilities and a completely silent, fanless design, it is the perfect solution for system integrations, office networking expansions, and CCTV matrix setups across Yangon, Mandalay, and commercial hubs throughout Myanmar.
Key Performance Features & Security Tools
- Advanced L2 Management with Layer 3 Static Routing: Features essential L2+ infrastructure controls including IP interfaces, Static Routing, and MSTP to route internal traffic smoothly across isolated corporate VLAN segments.
- Optimized Auto Surveillance & Voice VLANs: Automatically detects and prioritizes high-bandwidth IP security cameras and VoIP phone lines, ensuring stutter-free surveillance feeds and crystal-clear business communication.
- D-Link Safeguard Engine & Access Controls: Protects your local internal network from malicious operations and service disruptions caused by broadcast, multicast, or unicast packet flooding threats.
- Fanless, Noise-Free Engineering: The DGS-1210-10H utilizes a custom heat dissipation design providing silent operations. Ideal for open office floorplans, reception desks, and wiring closets lacking dedicated active cooling.
- D-Link Green Power Efficiency: Integrates automatic link status detection and LED shutoff timers, lowering regular electrical overhead and cutting utility running expenses in local workplace environments.
D-Link DGS-1210-10H Complete Engineering Specifications
Verify advanced technical routing parameters, power ratings, and network capabilities prior to corporate deployment:
| Hardware Parameters | Verified Specification Matrix |
|---|---|
| Product Model Number | DGS-1210-10H (Smart+ Edition) |
| Total Ports Available | 10 Ports Total |
| Copper Port Configurations | 8 x 10/100/1000 Mbps RJ45 Gigabit Ports |
| Optical SFP Interface | 2 x 1000 Mbps Dedicated SFP Fiber Uplink Ports |
| Switching Fabric Capacity | 20 Gbps Throughput Bandwidth |
| Maximum Packet Forwarding Rate | 14.88 Mpps (Million Packets Per Second) |
| MAC Address Table Size | 16,000 Entries (Auto-learning / Configurable Static Entries) |
| Packet Buffer Architecture | 1.5 MB Integrated Packet Memory Buffer |
| Processor & RAM Capacity | CPU Speed: 500MHz | 128MB DDR3 High-Speed RAM |
| Flash Memory Pool | 16 MB Flash Memory Storage |
| Active Power Requirements | Internal Universal Supply: 100 to 240 VAC, 50/60 Hz |
| Maximum Power Dissipation | 13.59 Watts Max Allocation Draw |
| Cooling System & Acoustics | Passive Fanless Cooling Infrastructure | 0 dBA Complete Silence |
| Layer 2 Protocol Array | 802.3x Flow Control, IGMP v1/v2/v3 Snooping (256 Groups), 802.1D STP, 802.1w RSTP, Loopback Detection |
| VLAN Capabilities | 802.1Q VLANs, Auto Surveillance VLAN, Auto Voice VLAN, Asymmetric VLAN |
| Advanced Cybersecurity Layer | IP-MAC-Port Binding (Smart Binding), Broadcast/Multicast Storm Control, D-Link Safeguard Engine, Port Security (64 MACs per port) |
| System Management Tools | Web GUI interface, D-Link Network Assistant utility, Compact CLI via Telnet, SNMP v1/v2/v3 support |
| Physical Dimensions | 280 mm x 126 mm x 44 mm (Desktop Size, 19" Rackmountable via kit, 1U Height) |
| Unit Net Weight | 1.54 kg (3.39 lbs) |
| Operating Climate Limits | Operating: -5 to 50 °C | Storage: -20 to 70 °C | Humidity: 0% to 95% non-condensing |
| System MTBF Metrics | 360,844 Hours of uninterrupted performance lifespan |
| Regulatory Standards | CE Class A, FCC Class A, VCCI Class A, cUL, CE (LVD), RoHS Compliant |
