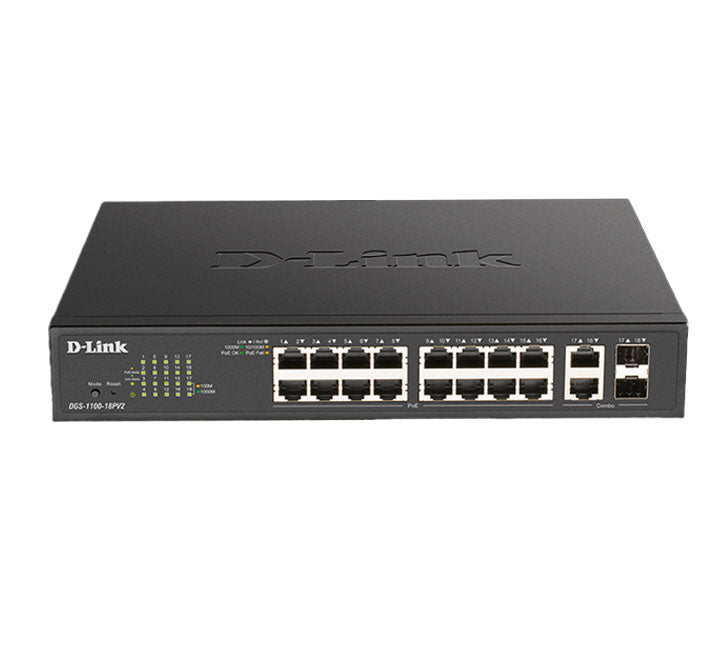

Smart Managed Power-over-Ethernet Edge for High-Definition IP Surveillance
The D-Link DGS-1100-18PV2 is an advanced, business-class 18-Port Gigabit Smart Managed PoE Switch engineered specifically to power high-density network setups, modern corporate VoIP grids, and commercial IP security camera systems. Formulated with 16 dedicated 10/100/1000 Mbps RJ45 PoE+ copper ports providing an expansive **130-Watt total PoE power budget**, this switch allows hardware installers to connect and run power directly to multiple remote IP cameras or wireless access points without the logistical headache of localized AC adapters. Completed by 2 high-speed Gigabit RJ45/SFP combo uplink slots for remote fiber server distribution runs, the DGS-1100-18PV2 merges effortless Layer 2 traffic management with automated hardware reboots to form a resilient infrastructure baseline for businesses across Yangon, Mandalay, and Myanmar's expanding tech corridors.
Key Functional Features & Video Surveillance Optimization
- 130W Robust PoE+ Power Delivery: Provides independent IEEE 802.3af/at Power-over-Ethernet across Ports 1 through 16, comfortably pumping up to 30 Watts per isolated port to support motorized PTZ cameras and high-range wireless APs.
- Intelligent PD-Alive Hardware Guard: Actively monitors the real-time operational status of connected PoE endpoints. If an automated surveillance camera or terminal stops responding, the switch automatically power-cycles the designated port to reboot the frozen device without human intervention.
- Surveillance VLAN 2.0 & Dedicated Voice Priorities: Automatically identifies incoming video streams from network security cameras and places them onto a separate, high-priority data lane—eliminating screen pixelation and framing glitches when the office network is busy.
- Comprehensive Diagnostic Troubleshooting: Built with embedded Loopback Detection and an intelligent Cable Diagnostics suite to rapidly isolate wiring loops, identify line breaks, and map precise structural faults on copper runs.
- Intuitive Web-GUI & Centralized Management Tools: Accessible via a traditional, secure web browser interface or through the simplified client-based D-Link Network Assistant (DNA) platform for rapid multicasting setups across bulk switches.
D-Link DGS-1100-18PV2 Full Hardware Specifications
Verify exact data-handling configurations, power metrics, and environmental tolerances for server configurations:
| System Parameters | Official Factory Specification Details |
|---|---|
| Product Model Number | DGS-1100-18PV2 (V2 Smart Managed Architecture) |
| Total System Ports Available | 18 Ports Total |
| PoE Gigabit Interfaces | 16 x 10/100/1000 Base-T (IEEE 802.3af/at Power-over-Ethernet) Ports |
| Uplink Combo Configuration | 2 x Dual-Purpose 1000Base-T/SFP Combo Slots |
| Total Available PoE Budget | 130 Watts Maximum Allocatable Power Allocation |
| Switching Fabric Capacity | 36 Gbps (Non-blocking Backplane Routing Architecture) |
| Maximum Forwarding Rate | 26.78 Mpps (Million Packets Per Second Processing Speed) |
| MAC Address Table Capacity | 8,000 Entries (Supports Auto-Learning & Aging Tables) |
| Jumbo Frame Support Size | Up to 9,216 Bytes Payload Configuration |
| Layer 2 Architecture Layer | 802.1D STP, 802.1w RSTP, 802.3ad Link Aggregation, IGMP Snooping v1/v2/v3, Loopback Detection |
| Power System Design | Internal Universal Transformer Block: 100 to 240 V AC, 50/60 Hz |
| Maximum System Power Consumption | Full PoE Load: 153.30 Watts | Idle Standby Power Draw: 12.18 Watts |
| Thermal Management Array | 1 x Automated Thermal Regulation Smart Fan Enclosure |
| VLAN Virtual Segregation | 802.1Q Tagged VLAN Array (Up to 128 Static Groups), Auto Surveillance VLAN, Auto Voice VLAN, Asymmetric VLAN |
| Network Quality of Service (QoS) | 802.1p Traffic Prioritization, 4 Priority Queues per port, Strict Priority (SP) / Weighted Round Robin (WRR) |
| Security Guard Layer | Static MAC Whitelists, Broadcast/Multicast/Unknown Unicast Storm Control, SSL Encryption Management Access |
| Chassis Form Enclosure | 280 mm x 230 mm x 44 mm (Compact Metal Structure, Accommodates 19-inch 1U Server Rackmount Layout brackets) |
| Unit Physical Net Weight | 2.02 kg (4.45 lbs) |
| Operating Temperature Scope | Operational Range: -5 to 50 °C | Storage Limits: -20 to 70 °C | Humidity Scope: 0% to 95% RH non-condensing |
| System Eco Certifications | IEEE 802.3az Energy Efficient Ethernet, D-Link Green Tech, CE Class A, FCC Class A, VCCI Class A, cUL, LVD Compliance |
