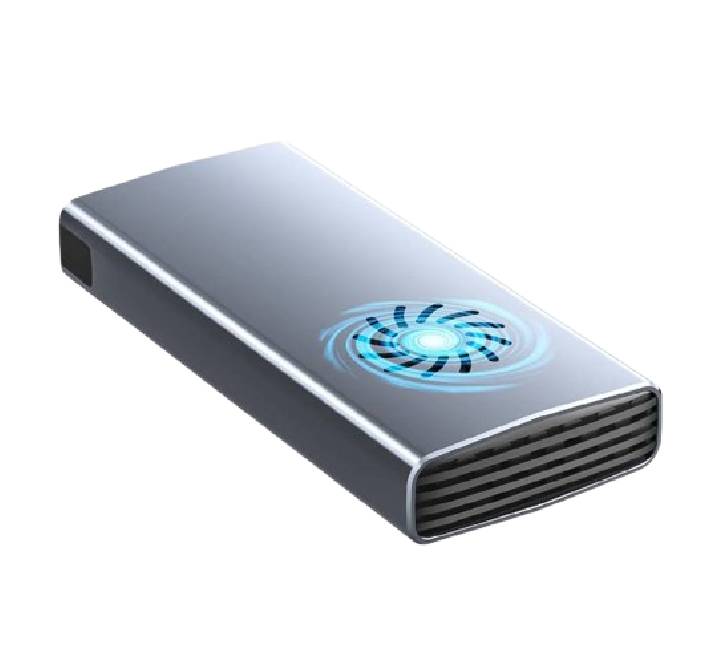

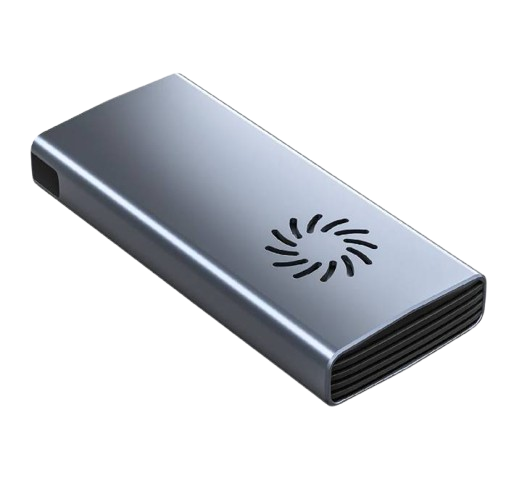

Coolplayer Active Cooling M.2 NVMe & SATA SSD Enclosure – 10Gbps USB-C Aluminum External Case
Prevent severe data transfer throttling, random drive disconnects, and permanent memory cell degradation caused by excessive controller heat with the premium Coolplayer Active Cooling M.2 NVMe SSD Enclosure. Tailored explicitly to counteract high room temperatures across Yangon, Mandalay, and humid regions in Myanmar, this high-performance external caddy introduces active fan induction to maintain your drive's peak performance during heavy reads and writes.
Most basic aluminum enclosures act like heat traps, causing high-speed drives to downclock within minutes of a large transfer loop. The Coolplayer enclosure solves this bottleneck by integrating an internal structural cooling fan right beneath a high-conductivity thermal silicon path. Powered by the high-grade Realtek RTL9210B master control processor, this dual-protocol external bus delivers an unthrottled 10Gbps pipeline. It allows you to transform spare M.2 drives into ultra-fast, ultra-cooled external backup engines for video editing rigs, office workstations, or your gaming console storage expansion.
Key Features & Active Thermal Regulation
- Dual-Protocol Smart Master Controller: Built on the Realtek RTL9210B chip architecture, natively supporting both PCIe M-Key/B+M Key NVMe lines and legacy M.2 SATA protocols.

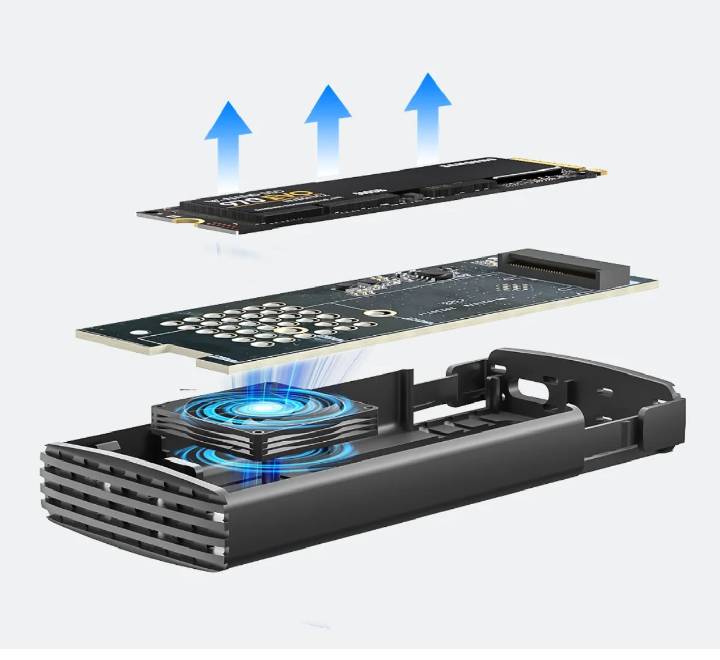

- Integrated Heat-Dissipation Fan: Features a built-in micro-turbine fan that actively draws heat away from the controller logic and memory cells, preventing speed drops during multi-gigabyte transfers.
- Blazing-Fast 10Gbps USB 3.2 Gen 2 Interface: Move massive 4K movie clips, complex system images, or high-end game directories in seconds with true read/write thresholds matching top speed configurations.
- Rugged Deep-Grooved Aluminum Chassis: The structural shell is machined with deep heat-sink fins to increase the overall cooling surface area, adding reliable physical armor against drops and impacts.
- Tool-Free Slider Design: Swap multiple internal solid-state modules smoothly in seconds without needing specialized screwdrivers or mechanical bits.
- Intelligent Automatic Sleep Timer: Features built-in hardware power-save protocols that automatically spin down and sleep the drive after 10–15 minutes of inactivity to protect flash life.
Technical Specifications
| Technical Specification | Official Factory Performance Metrics |
|---|---|
| Brand / Developer | Coolplayer |
| Model Core Variant | M.2 NVMe Enclosure with Fan (Dual-Protocol Version) |
| Core Processing Chipset | Realtek RTL9210B Master Control Logic |
| Supported Protocols | M.2 NVMe (PCIe) and M.2 NGFF (SATA) Protocols |
| Data Output Interface | USB 3.2 Gen 2 Type-C (Fully backward compatible with USB 3.0 / 2.0) |
| Theoretical Transfer Speed | Up to 10Gbps (NVMe Protocol) / Up to 6Gbps (SATA Protocol) |
| Module Form Factor Fit | M-Key / B+M Key Sizes 2230 / 2242 / 2260 / 2280 Layouts |
| Maximum Storage Volume | Supports up to 2TB / 4TB Drive Modules |
| Chassis Cooling Elements | Aluminum Alloy Fins + Built-In Active Exhaust Fan + Thermal Pad |
| System Support | Windows 11 / 10 / 8 / 7, macOS 10.6+, Linux Core, Android, PS5 Console |
