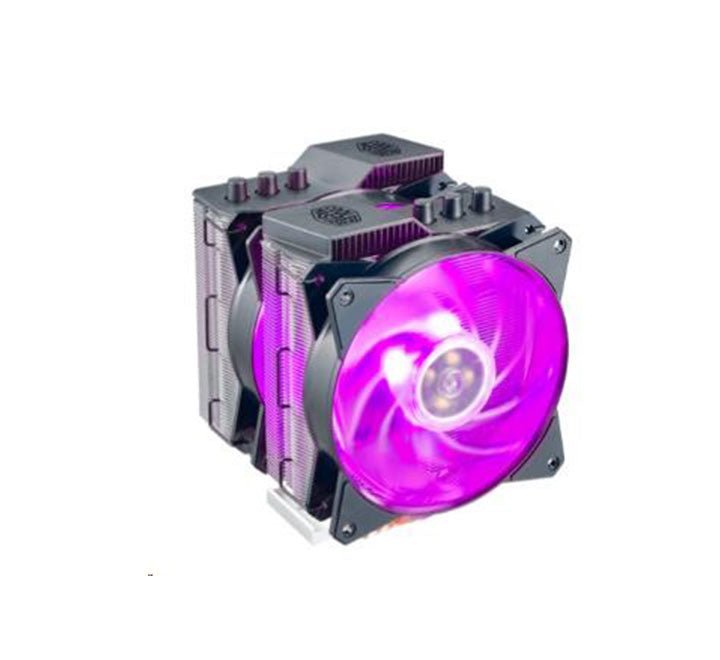

Tame the extreme thermal output of your high-end AMD workstation with the heavy-duty Cooler Master MasterAir MA621P TR4 Edition CPU Air Cooler (Model: MAP-D6PN-218PC-R2). Engineered explicitly for studio content creators, enterprise server admins, and deep-learning engineers across Myanmar, this massive dual-tower cooling solution is tailored exclusively for the unique architectural blueprint of AMD Ryzen Threadripper processors. Featuring a massive copper base plate engineered to deliver 100% surface contact coverage across the massive Threadripper Integrated Heat Spreader (IHS), it eliminates dangerous micro-thermal hotspots during sustained rendering operations. Whether you are compiling large code architectures in Yangon or processing high-resolution 3D animation pipelines in Mandalay, this dual-tower behemoth guarantees ultimate computational stability under maximum continuous structural workloads.
Key Features & Extreme Thermal Engineering
100% Complete Threadripper IHS Coverage Base Plate
Standard consumer CPU coolers fail to span the immense surface footprint of AMD's enthusiast socket tier. The MasterAir MA621P TR4 Edition features a precision-machined, extra-large copper base layout designed specifically to mirror the exact millimeter structural parameters of **Socket TR4, SP3, and sTRX4 platforms**, ensuring direct thermal dissipation across all computing cores simultaneously.
Dual-Tower Sink Framework with 6 Copper Heatpipes
Maximize your continuous heat displacement. This flagship cooler combines a dual-tower cooling fin geometric matrix with **6 high-performance, precision-aligned copper heatpipes**. Utilizing patented Continuous Direct Contact Technology 2.0 (CDC 2.0), the heatpipes are compressed tightly at the base, widening the direct physical thermal transfer surface area by 45% compared to legacy architectures.
Dual MasterFan MF120R RGB High-Pressure Push-Pull Array
Accelerate airflow through the cooling fin matrices effortlessly. The kit comes standard with two pre-installed **MasterFan MF120R RGB cooling fans** configured in a high-efficiency push-pull configuration. Driven by silent driver IC chips and robust wave-shaped blades, they push massive volumes of air through the dense cooling stacks while keeping acoustic resonance below a faint 31 dBA.
Bundled Wired RGB Controller & Synchronized Illumination
Maintain precise visual authority over your workspace presentation. The included wired RGB controller gives you instant access to speed, effect dynamics, and color presets without requiring a dedicated software engine. For unified setups, it connects directly into standard 4-pin motherboard headers for full synchronization across ASUS Aura Sync, GIGABYTE RGB Fusion, and MSI Mystic Light.
Technical Specifications
| Hardware Parameter | Official Specifications |
|---|---|
| Product Name | Cooler Master MasterAir MA621P TR4 Edition |
| Model Number | MAP-D6PN-218PC-R2 |
| CPU Socket Compatibility | AMD Socket TR4, sTR4, sTRX4, SP3 Workstation Profiles Only |
| Heatsink Structural Scale | 121.8 x 136.1 x 164.5 mm (4.8 x 5.4 x 6.5 inches) |
| Heatpipe Array Profile | 6x High-Rigidity Copper Heatpipes / CDC 2.0 Direct Interface Contact |
| Fan Dimension Array | 120 x 120 x 25 mm (Dual MasterFan MF120R RGB Modules Included) |
| Fan Rotational Velocity | 600 – 1,800 RPM (PWM Controlled) ± 10% |
| Volumetric Airflow Output | 53.4 CFM ± 10% Static Pressure Projection |
| Acoustic Fan Noise Volume | 31.0 dBA (Maximum Speed Velocity Ceiling) |
| Fan Power Connection Type | 4-Pin PWM Power Interface Header |
| RGB Connector Interface | 4-Pin RGB Connector (12V Data Protocol Array) |
| Fan MTBF Operational Lifetime | 160,000 Hours Long-Life Mechanical Bearing Integrity |
