Broadcast-Quality Audio for Film, Video & Field Recording

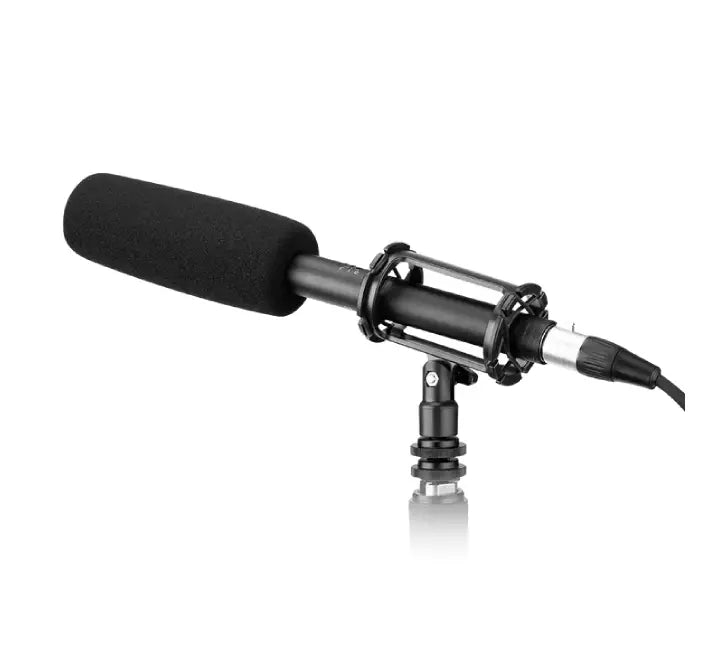

The BOYA BY-BM6060 Professional Shotgun Microphone (Black) is designed to deliver high-fidelity, directional audio for filmmaking, TV broadcasting, documentaries, and location field recording. Featuring a supercardioid/lo-cardioid pickup pattern, low-noise circuitry, and selectable high-pass filtering, the BY-BM6060 isolates your target audio while effectively rejecting unwanted background noise.
Key Features of BOYA BY-BM6060
- Supercardioid Directional Pickup: Offers focused audio capture directly in front of the mic while suppressing ambient environmental sound from the sides and rear.
- Flexible Powering Options: Operates via standard 24V–48V Phantom Power or a single 1.5V AA battery for hassle-free field use without external power.
- Selectable High-Pass Filter (150 Hz): Roll off low-frequency rumble, traffic noise, and HVAC hum at the flick of a switch for cleaner voice capture.
- Durable All-Aluminum Body: Rugged alloy construction designed to withstand demanding location shoots and daily production use.
- Gold-Plated 3-Pin XLR Output: Ensures stable, loss-free audio signal transmission to professional field recorders, audio interfaces, and video cameras.
- Complete Accessories Included: Comes bundled with a custom shock mount, foam windshield, and furry windscreen to combat handling noise and wind interference.
BOYA BY-BM6060 Technical Specifications
| Product Model | BOYA BY-BM6060 |
| Microphone Type | Electret Condenser Shotgun Microphone |
| Polar Pattern | Supercardioid |
| Frequency Response | 60 Hz – 20,000 Hz |
| High-Pass Filter | 150 Hz Cut-off |
| Sensitivity | -36 ±3dB (0dB=1V/Pa @ 1kHz) |
| Signal-to-Noise Ratio | 80 dB |
| Power Requirements | 24V–48V Phantom Power OR 1x 1.5V AA Battery |
| Output Connector | 3-Pin XLR |
| Color Variant | Black |
| Dimensions & Weight | 280mm x 22mm x 22mm | 129g (4.5 oz) |
Frequently Asked Questions About BOYA BY-BM6060
Can I use the BOYA BY-BM6060 without phantom power?
Yes. The BOYA BY-BM6060 can be powered by a single 1.5V AA battery inserted into the body casing, making it compatible with cameras and field recorders that do not supply phantom power.
What is the purpose of the 150Hz high-pass filter switch?
The high-pass filter switch on the BOYA BY-BM6060 cuts out unwanted low-frequency sounds under 150 Hz, such as air conditioner hum, wind rumble, and traffic noise, ensuring clean dialogue recording.
Does the BOYA BY-BM6060 connect directly to a DSLR or mirrorless camera?
The microphone features a 3-pin XLR output. To plug directly into a 3.5mm camera mic port, use an XLR to 3.5mm TRS cable or audio adapter box.
Can the BOYA BY-BM6060 be mounted on a boom pole?
Yes. The included shock mount features both a standard cold shoe mount and 1/4-inch and 3/8-inch threaded sockets for mounting onto boom poles and microphone stands.
