Description

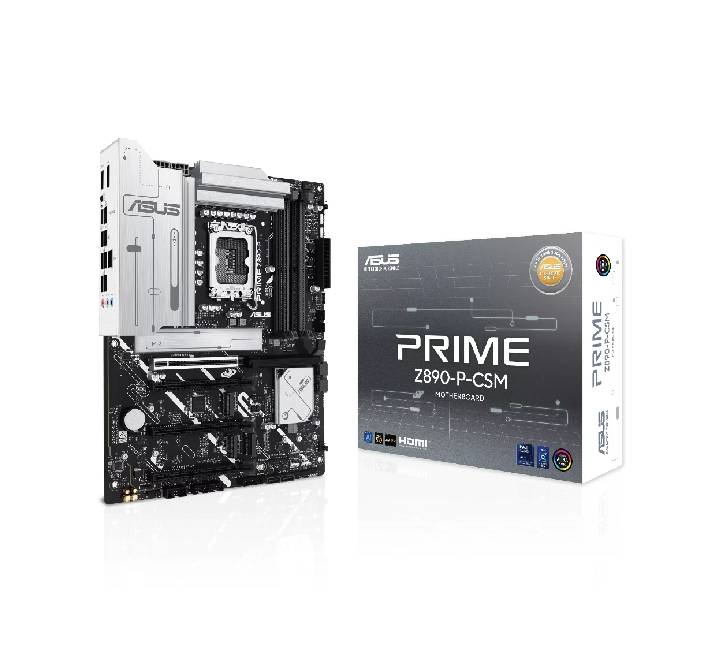

Unleash the full potential of next-gen computing with the ASUS Prime Z890-P CSM WiFi Motherboard. Expertly engineered for the latest Intel Core Ultra Processors (Series 2) on the LGA1851 socket, this ATX platform combines a robust power design, comprehensive cooling, and future-proof connectivity including Wi-Fi 7 and Thunderbolt 4. Packed with commercial-grade CSM (Corporate Stable Model) features and advanced AI capabilities, it is built to handle demanding workloads, content creation, and high-end gaming.
Key Features
- Intel LGA1851 Socket: Fully optimized to support Intel Core Ultra Processors (Series 2), driving advanced AI-ready computing experiences.
- Robust Power Delivery: Features 14(80A) + 1(80A) + 2(80A) + 1(80A) DrMOS power stages paired with enlarged VRM heatsinks for absolute stability under heavy loads.
- Next-Gen Connectivity: Equipped with ultra-fast Wi-Fi 7, 2.5Gb Ethernet, and an onboard Thunderbolt 4 port for blazing-fast peripheral speeds.
- Lightning-Fast Storage & PCIe 5.0: Includes a PCIe 5.0 x16 slot for graphics and multiple M.2 slots (featuring a PCIe 5.0 x4 slot up to 128Gbps) for rapid data transfers.
- Advanced DDR5 Memory: Four DIMM slots supporting up to 192GB of high-speed DDR5 RAM with AEMP III and DIMM Fit profile optimization.
- ASUS CSM Program: Corporate Stable Model offering stable supply availability and ASUS Control Center Express IT software integration.
Technical Specifications
| Brand / Model | ASUS / Prime Z890-P CSM WiFi |
| CPU Socket | LGA1851 (Supports Intel Core Ultra Processors - Series 2) |
| Chipset | Intel Z890 |
| Memory (RAM) | 4 x DIMM, Max. 192GB, DDR5 (Supports up to 8666+ MT/s OC) |
| Graphics Outputs | 1 x DisplayPort, 1 x HDMI port, 1 x Thunderbolt 4 USB Type-C |
| Expansion Slots | 1 x PCIe 5.0 x16 slot, plus additional PCIe 4.0 slots |
| Storage Support | Total 4 x M.2 slots (1 x PCIe 5.0 x4, 3 x PCIe 4.0 x4) & SATA ports |
| Networking | Wi-Fi 7, Bluetooth, Realtek 2.5Gb Ethernet |
| Form Factor | ATX Form Factor |
