Description

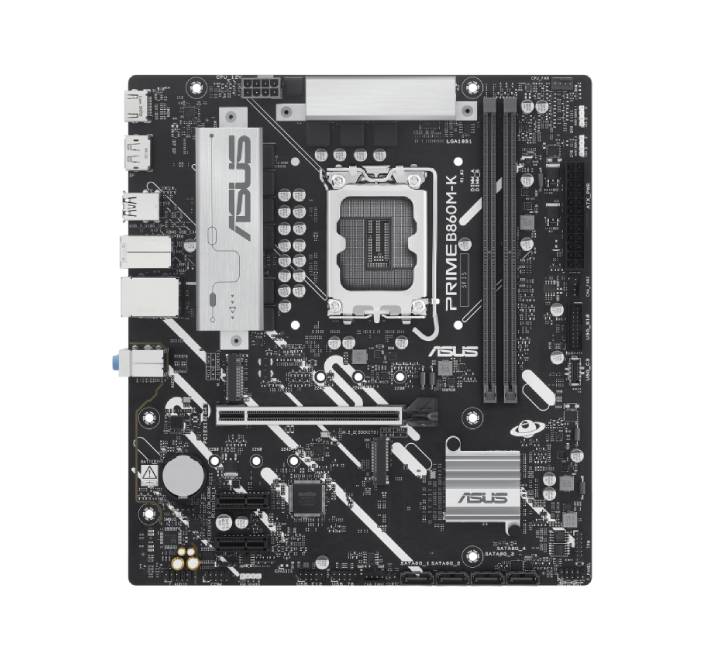

ASUS PRIME B860M-K-CSM Intel® LGA 1851 Micro-ATX Motherboard
The ASUS PRIME B860M-K-CSM is built for the future of computing, supporting the latest Intel® Core™ Ultra Processors (Series 2) on the LGA 1851 socket. As part of the Corporate Stable Model (CSM) program, it offers enhanced supply stability and professional management software. With DDR5 memory support and a PCIe 5.0 x16 slot, this motherboard is the perfect foundation for high-speed professional workstations and modern home PC builds.
Key Features
- Intel® LGA 1851 Socket: Ready for the latest Intel® Core™ Ultra Processors (Series 2).
- DDR5 Support: Unleash massive bandwidth with support for high-frequency DDR5 memory modules.
- PCIe 5.0 Ready: Future-proof your build with a PCIe 5.0 x16 slot, offering double the bandwidth of the previous generation.
- ASUS Corporate Stable Model (CSM): Includes ASUS Control Center Express for server-grade IT management and a guaranteed stable supply chain.
- Dual M.2 Slots: High-speed NVMe storage support for rapid boot times and data access.
- 5X Protection III: Advanced hardware safeguards including LANGuard, Overvoltage Protection, and stainless-steel back I/O.
Technical Specifications
| CPU Socket | Intel® Socket LGA1851 for Intel® Core™ Ultra Processors |
| Chipset | Intel® B860 Chipset |
| Memory | 2 x DIMM, Max. 96GB, DDR5 |
| Expansion Slots | 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x1 |
| Storage | 2 x M.2 slots (PCIe 4.0 x4), 4 x SATA 6Gb/s |
| Graphics Output | 1 x HDMI™, 1 x DisplayPort |
| Networking | Realtek 2.5Gb Ethernet |
| Form Factor | Micro-ATX Form Factor (24.4 cm x 21.1 cm) |
