Description

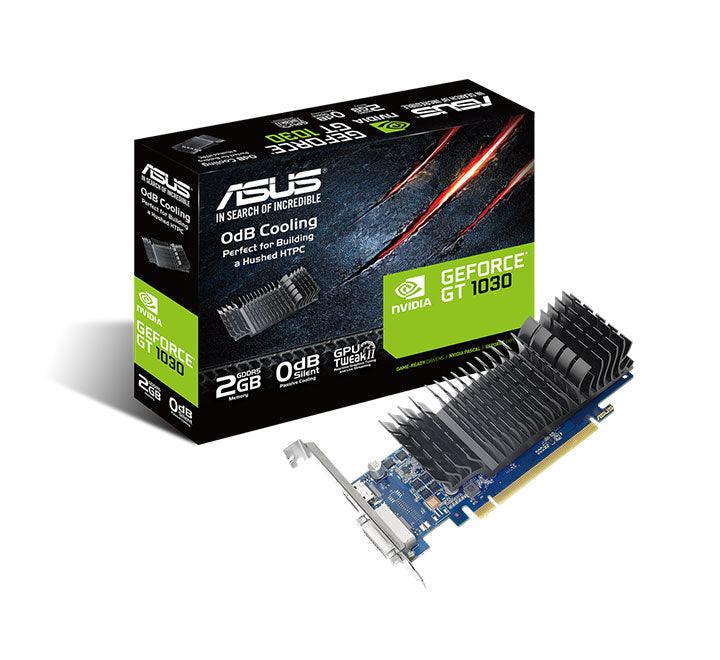

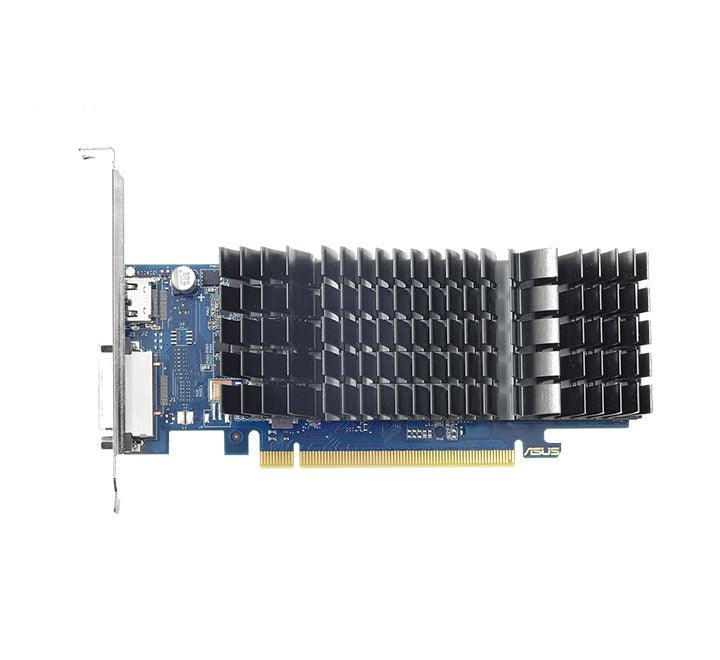

ASUS GeForce GT 1030 2GB GDDR5 – Premium Silent Graphics for Compact PC Workstations
The ASUS GeForce® GT 1030 2GB GDDR5 Low Profile Graphics Card (GT1030-SL-2G-BRK) is an efficient, ultra-compact graphics solution designed to elevate office productivity, power Home Theater PCs (HTPCs), and accelerate daily multimedia applications. Engineered with an exclusive passive cooling setup, this card operates at a true 0dB, keeping your workspace perfectly quiet.
Built with high-speed GDDR5 video memory, the GT 1030 provides up to 2X faster performance than standard DDR3 variants, making web browsing, photo editing, and smooth 4K video playback seamless. Its slot-powered configuration means it slips easily into space-conscious systems without demanding extra power cables.
Key Features & Highlights
- 0dB Silent Passive Cooling: Custom ASUS-designed heatsinks feature a wide surface area to cool the GPU entirely without active fans, ensuring absolute silence.
- High-Speed GDDR5 VRAM: Features 2GB of GDDR5 memory to deliver a significantly higher data bandwidth and snappier performance compared to older DDR3 alternatives.
- Low-Profile & Space-Saving Form Factor: Fits perfectly inside slimline desktops and small form factor (SFF) corporate PC chassis. Dedicated low-profile I/O brackets are included right in the box.
- Auto-Extreme Premium Quality: Formed using a 100% automated single-pass manufacturing system that removes human error, minimizes component thermal stress, and guarantees exceptional product lifespan.
- No External Power Cables Needed: Draws all its operating power straight out of the motherboard's PCIe slot, eliminating cable clutter and maximizing setup flexibility.
- GPU Tweak II Configuration: Easily adjust vital core clock configurations, memory frequencies, and tracking metrics through an intuitive, user-friendly software dashboard.
Technical Specifications
| Component Block | Technical Details |
|---|---|
| Model Identification | ASUS GeForce® GT 1030 (GT1030-SL-2G-BRK) |
| Graphics Processor | NVIDIA® GeForce GT 1030 (Pascal Architecture) |
| Bus Interface | PCI Express 3.0 (OpenGL® 4.5 API support) |
| Engine Core Clock |
OC Mode: 1265 MHz (Base) / 1506 MHz (Boost) Gaming Mode: 1228 MHz (Base) / 1468 MHz (Boost) |
| NVIDIA CUDA Cores | 384 Processing Units |
| Video Memory Config | 2GB GDDR5 Memory |
| Memory Bus Interface | 64-bit Memory Bus (6008 MHz Clock Speed) |
| Digital Max Resolution | 4096 x 2160 Pixels (Supports 4K UHD displays via HDMI) |
| I/O Display Interfaces | 1x Native HDMI 2.0b | 1x Native DVI-D |
| Multi-Display Limit | Up to 2 Monitors concurrently; HDCP Support Yes (v2.2) |
| Power Requirements | Recommended System Power Unit: 300W | No External Power Cable Required |
| Form Factor / Slots | Low Profile Layout, Single-Slot height compatible bracket frame, 2-Slot depth footprint due to heatsink fins |
| Physical Dimensions | 17.3 x 6.9 x 4.0 cm (6.8" x 2.7" x 1.6" sleek profile) |
