Description

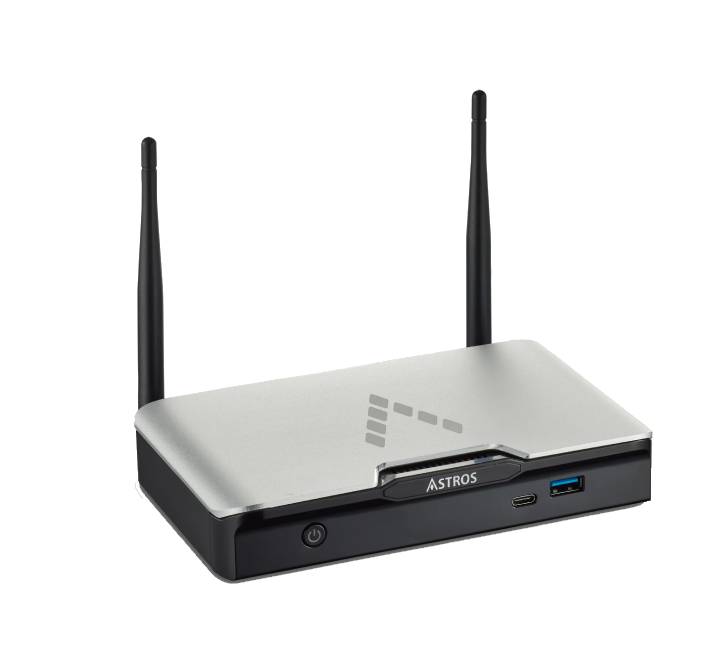

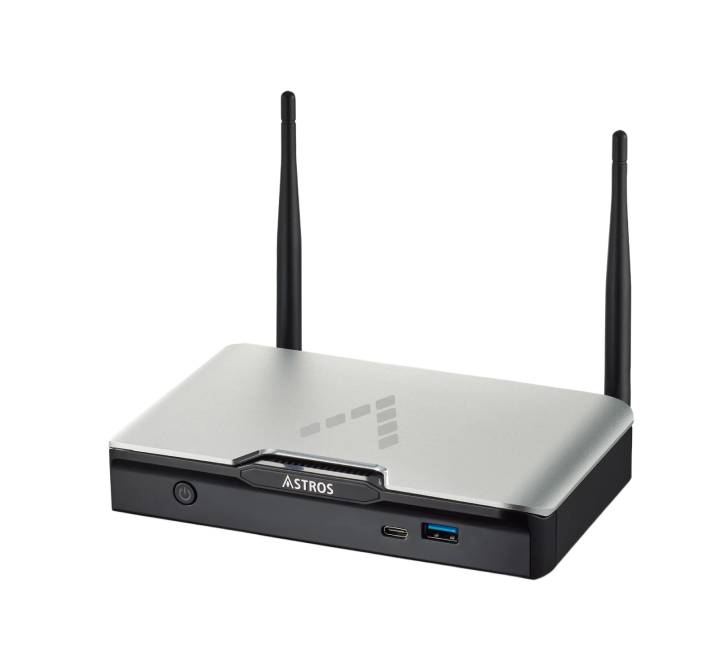

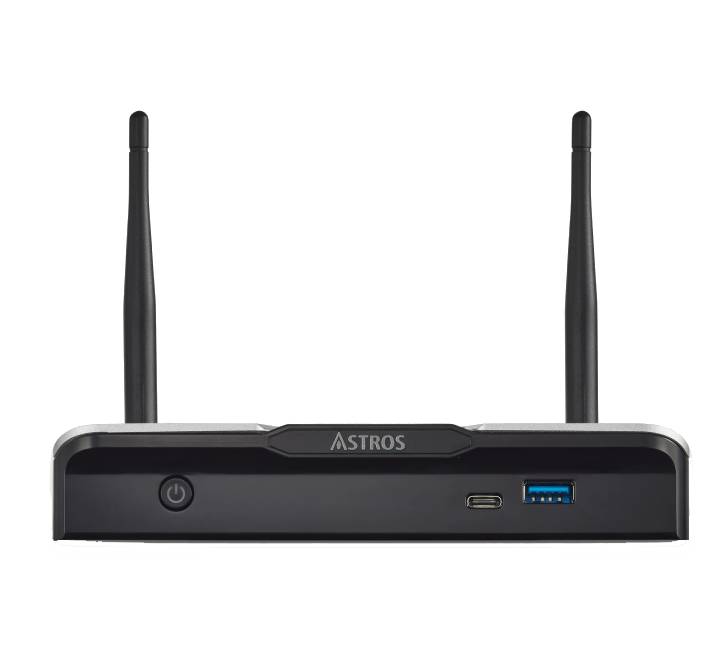

Transform your meeting rooms, classrooms, and corporate offices into highly collaborative environments with the ASTROS Station AS-201 Wireless Presentation & Conferencing System. Engineered by Astrogate, the AS-201 goes far beyond basic screen sharing. It bridges the gap between hybrid teams by delivering flawless 4K wireless display output, advanced security protocols, and true BYOM (Bring Your Own Meeting) capabilities—eliminating messy cables and wasted meeting time entirely.
Key Features & Collaborative Tools
- Flawless 4K Wireless Presentation: Elevate visual clarity with unscaled 4K@30Hz video output over HDMI, giving your charts, presentations, and media the ultra-high-definition canvas they deserve.
- Cross-Platform BYOD Support: Zero limitations. Seamlessly stream and share from Windows, macOS, iOS, Android, and Chrome OS using native protocols like AirPlay, Google Cast, Miracast, or the specialized ASTROS App.
- BYOM Wireless Video Conferencing: Seamlessly redirect room peripherals. Connect your laptop wirelessly to the meeting room’s USB cameras, microphones, and soundbars on popular platforms like Zoom, Microsoft Teams, and Google Meet.
- 4-Way Split Screen & Auto Layout: Boost brainstorming sessions by presenting up to 4 different device screens simultaneously. The smart auto-layout automatically scales and arranges content dynamically.
- Interactive Touch Back & Whiteboard: Remotely control your source laptop directly from a touch-responsive main display. Utilize built-in annotation tools and an active canvas whiteboard to draw, note, and save ideations directly to USB or via QR code.
- Enterprise-Grade Security & Privacy: Safeguard sensitive corporate assets. Features a 4-digit randomized login code, gatekeeper network isolation settings, and strong AP/Station transmission encryption protocols.
See the ASTROS Station AS-201 in Action
Discover how the ASTROS Station AS-201 optimizes modern hybrid meetings with seamless performance and robust Miracast/BYOD infrastructure.
Technical Specifications
| Specification Parameter | Details & Performance Values |
|---|---|
| Brand / Model | ASTROS Station AS-201 |
| Compatible Operating Systems | Windows 10+, macOS 12.5+ (BYOM 13.5+), iOS 14+, Android 11.0+, Chrome OS 84.0.4147.110+ |
| Supported Mirroring Protocols | BeamOp, AirPlay, Google Cast, Miracast, Browser Sharing |
| Video Outputs | 1 x HDMI, 1 x VGA (Supports Dual Display Mirroring) |
| Output Resolution | HDMI Only: Up to 4K @ 30Hz HDMI + VGA Dual Output: Up to 1080p @ 60Hz |
| Audio Output | HDMI Embedded Audio & 1 x 3.5mm Stereo Audio Jack |
| Wireless Connectivity | Switchable Dual-Band Wi-Fi 2.4GHz / 5GHz (IEEE 802.11ac; DFS channels not supported) |
| Network & Security Authentication | AP Mode: WPA2-PSK Station Mode: WEP, WPA, WPA2, 802.1x EAP |
| Ethernet Interface | 10/100/1000 Mbps RJ-45 LAN (Supports Power over Ethernet - PoE 48V / 0.32A) |

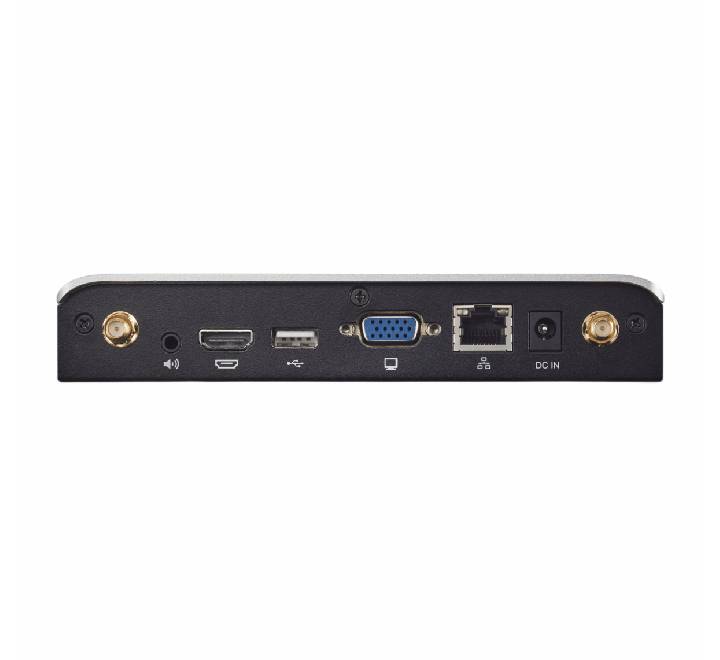

| Hardware I/O Interfaces | 1 x USB 2.0 Host Type-A, 1 x USB 3.0 Host Type-A, 1 x USB 3.0 Host Type-C, 1 x Power Jack |
| Simultaneous Connections | Up to 20 concurrent user connections |
| Power Supply | DC 12V / 2A Power Adapter or via PoE |
| Dimensions & Net Weight | 170mm x 104.4mm x 30.5mm (W x D x H) | Weight: 500g |
| Warranty | 2 Years |
