Description

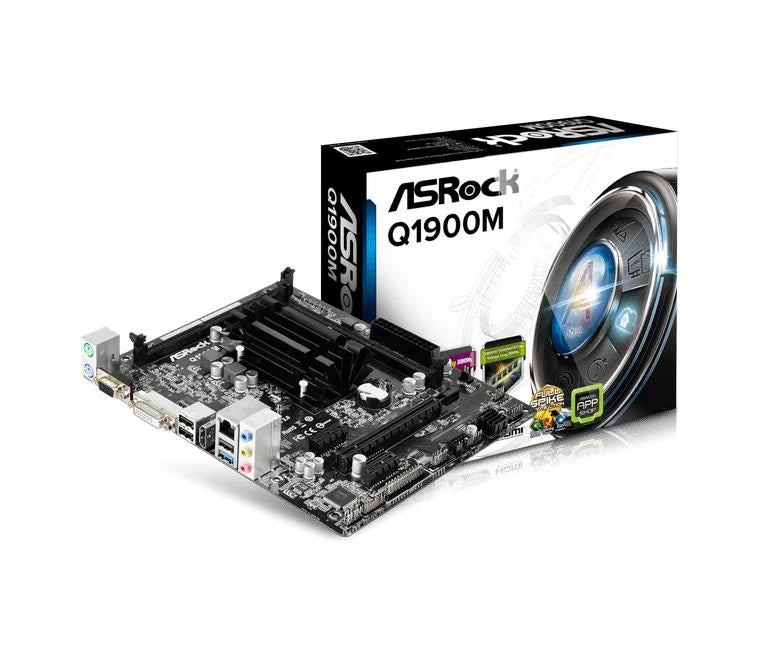

ASRock Q1900M Intel® Quad-Core J1900 Micro-ATX Motherboard
The ASRock Q1900M is an all-in-one solution featuring an integrated Intel® Quad-Core Celeron® J1900 processor. Designed for silent operation and energy efficiency, this Micro-ATX motherboard utilizes a fanless heatsink, making it the perfect choice for home theaters (HTPC), quiet office workstations, or low-power industrial applications. With support for standard DDR3/DDR3L memory and triple monitor setups, it offers versatile performance in a compact footprint.
Key Features
- Integrated Intel® Quad-Core J1900: High-performance Celeron® processor (up to 2.42 GHz) pre-installed for immediate use.
- Fanless Design: Large heatsink ensures completely silent operation and reduced dust buildup.
- Triple Monitor Support: Connect up to three displays simultaneously via D-Sub, DVI-D, and HDMI ports.
- High Density Glass Fabric PCB: Reduces the gaps between PCB layers to protect the motherboard against electrical shorts caused by humidity.
- All Solid Capacitor Design: Ensures stable performance and a longer lifespan for the motherboard.
- Full Spike Protection: Built-in technologies protect sensitive components from unexpected voltage surges.
Technical Specifications
| Processor | Intel® Quad-Core Celeron® J1900 (2.0 GHz, Turbo up to 2.42 GHz) |
| Memory | 2 x DDR3/DDR3L DIMM slots, Max. 16GB, 1333/1066 MHz |
| Graphics | Integrated Intel® 7th Gen Graphics (DirectX 11) |
| Expansion Slots | 1 x PCIe 2.0 x16 (at x1 mode), 2 x PCIe 2.0 x1 |
| Storage | 2 x SATA2 3.0 Gb/s Connectors |
| Audio | 5.1 CH HD Audio (Realtek ALC662 Audio Codec) |
| USB Ports | 1 x USB 3.1 Gen1, 3 x USB 2.0 (Rear) |
| Form Factor | Micro ATX (22.6 cm x 18.3 cm) |
