Description

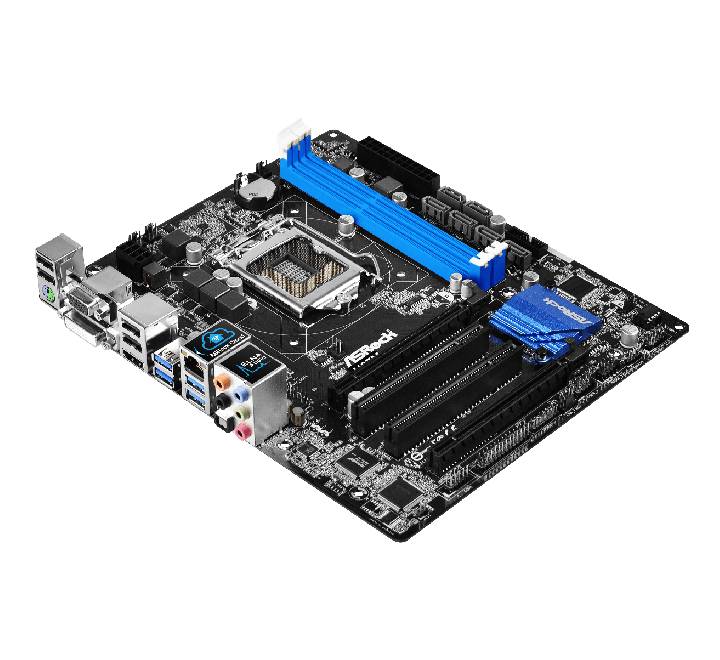

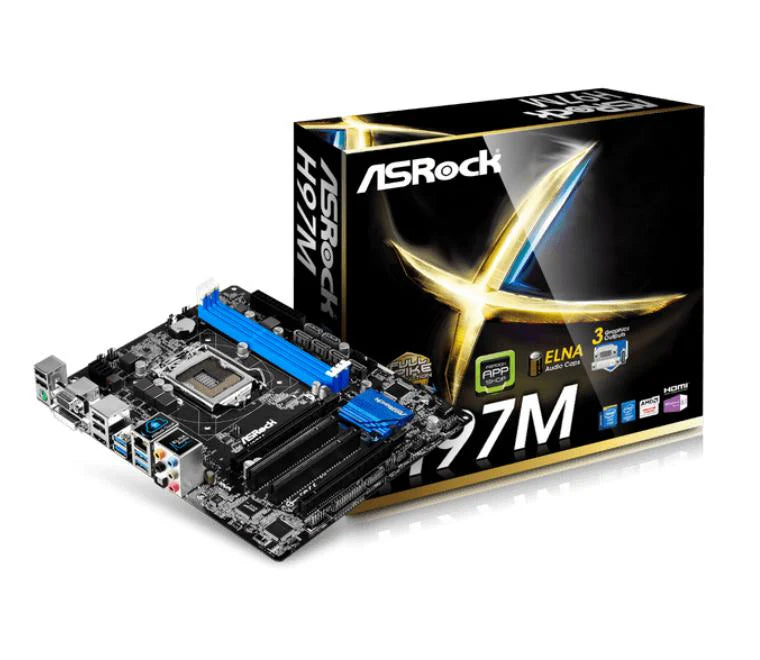

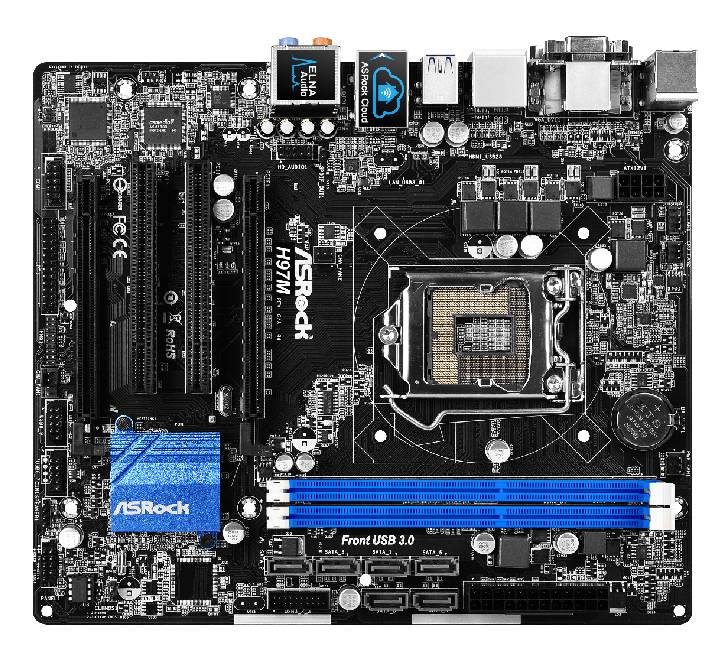

The ASRock H97M is a feature-packed Micro ATX motherboard designed for stability and performance. Built on the Intel® H97 chipset, it supports 4th and 5th Generation Intel® Core™ processors (Socket 1150). Whether you are building a reliable office PC or a compact gaming rig, the H97M offers "Super Alloy" durability and advanced protection technologies to ensure longevity.
Key Features
- ASRock Super Alloy: Premium Alloy Choke and NexFET™ MOSFETs for higher efficiency and lower temperatures.
- ELNA Audio Caps: High-quality audio capacitors that significantly reduce noise levels for crystal clear sound.
- Full Spike Protection: Protects your sensitive motherboard components from unexpected voltage spikes.
- Triple Monitor Support: Connect up to three display interfaces (D-Sub, DVI-D, and HDMI) simultaneously.
- A-Tuning: A multi-purpose software suite for overclocking, power saving, and hardware monitoring.
Technical Specifications
| Category | Specifications |
|---|---|
| CPU Socket | LGA 1150 (Supports 5th / New 4th / 4th Gen Intel Core) |
| Chipset | Intel® H97 Chipset |
| Memory | 2 x DDR3 DIMM Slots (Max 16GB, 1600/1333/1066 MHz) |
| Graphics Output | D-Sub, DVI-D, HDMI (Supports 4K Resolution) |
| Expansion Slots | 1 x PCIe 3.0 x16, 2 x PCIe 2.0 x1, 1 x PCI |
| Storage | 6 x SATA3 6.0 Gb/s Connectors (Support RAID 0, 1, 5, 10) |
| USB Ports | 4 x USB 3.1 Gen1 (2 Front, 2 Rear), 8 x USB 2.0 |
| Form Factor | Micro ATX Form Factor: 9.6-in x 7.5-in |
