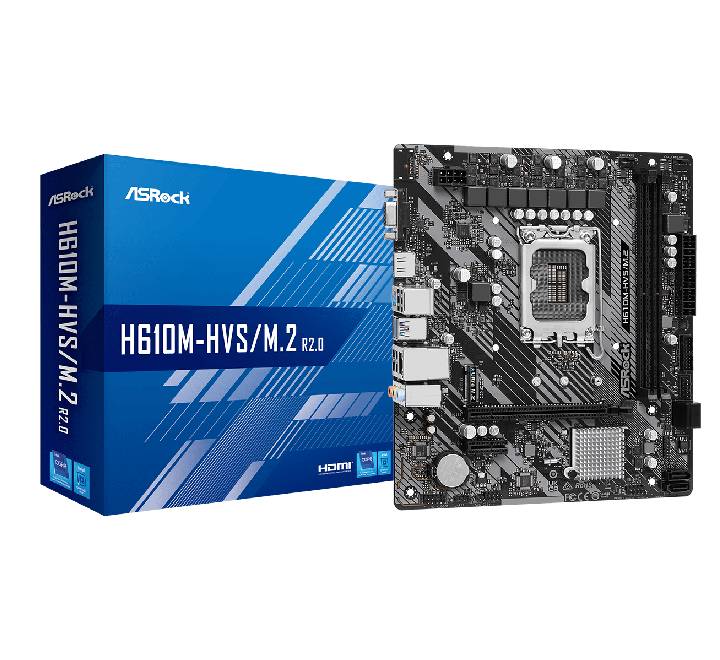

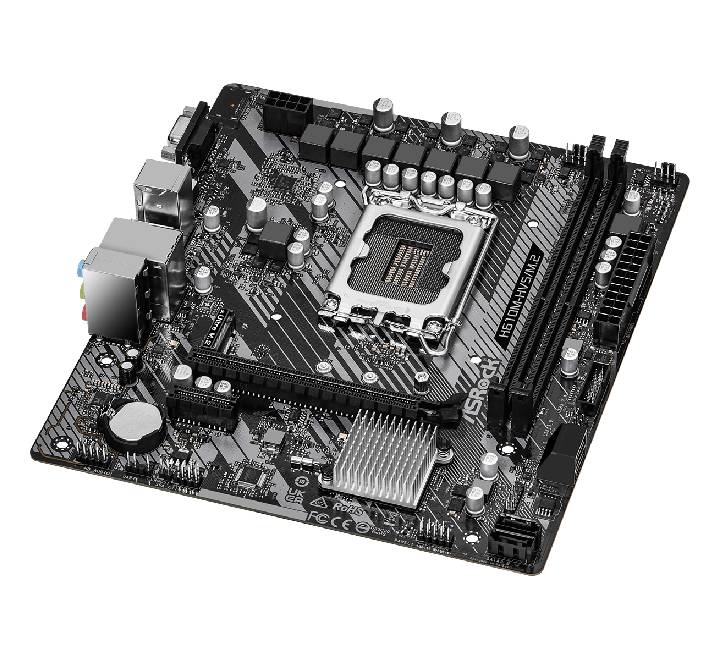

ASRock H610M-HVS/M.2 R2.0 Intel® LGA 1700 Micro-ATX Motherboard
The ASRock H610M-HVS/M.2 R2.0 is a rock-solid foundation for your next Intel-based PC. Designed with ASRock's "Super Alloy" technology and a 6+1+1 Power Phase design, this motherboard provides enhanced stability and efficient power delivery for 14th, 13th, and 12th Gen Intel® Core™ processors. Whether you are building a home office workstation or a budget gaming rig, the H610M-HVS/M.2 R2.0 offers the essential features you need, including Ultra M.2 support and PCIe 4.0 connectivity.
Key Features
- LGA 1700 Support: Ready for 14th, 13th, and 12th Gen Intel® Core™ Processors.
- Ultra M.2 (PCIe Gen3 x4): Delivers data transfer speeds up to 32Gb/s for lightning-fast NVMe SSD performance.
- PCIe 4.0 High-Speed Slot: Features a reinforced PCIe 4.0 x16 slot for the latest high-performance graphics cards.
- Super Alloy Durability: Includes Premium Power Chokes and a Sapphire Black PCB for long-term reliability and a sleek aesthetic.
- Full Spike Protection: Built-in technologies safeguard your components from unexpected voltage surges.
- Dual Graphics Outputs: Equipped with both HDMI and D-Sub (VGA) ports for versatile display setups.
Technical Specifications
| CPU Socket | LGA 1700 (Intel 12th, 13th & 14th Gen) |
| Chipset | Intel® H610 |
| Memory | 2 x DDR4 DIMM, Max. 64GB, up to 3200MHz |
| Storage | 1 x Ultra M.2 (PCIe Gen3x4), 4 x SATA3 6.0 Gb/s |
| Expansion Slots | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1 |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Ethernet | Gigabit LAN 10/100/1000 Mb/s |
| Form Factor | Micro ATX (22.0 cm x 19.3 cm) |
