Description

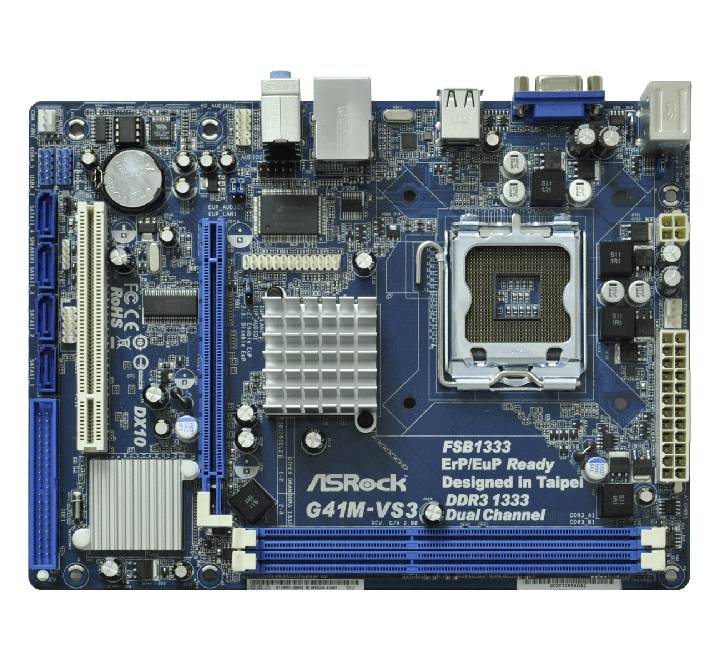

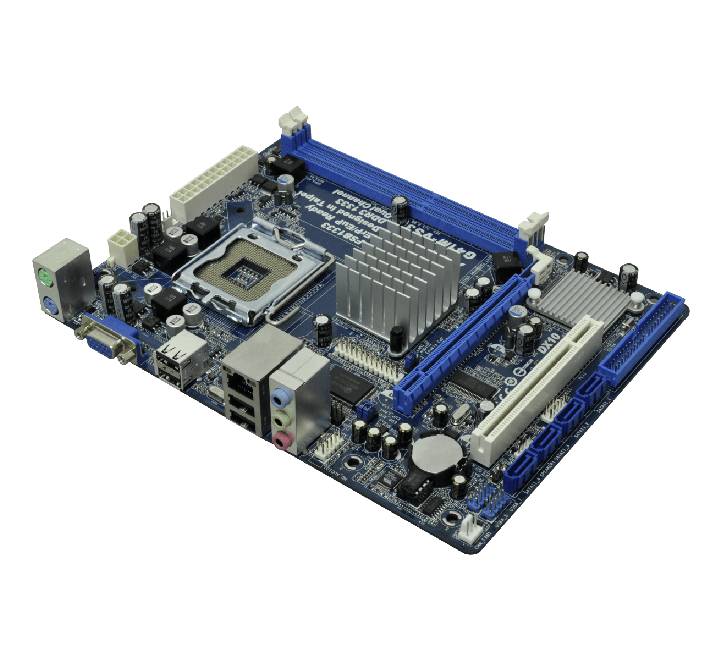

The ASRock G41M-VS3 R2.0 is a versatile and compact Micro ATX motherboard designed for the enduring Intel® LGA 775 platform. Featuring the Intel® G41 + ICH7 chipset, this board is a perfect solution for users looking to maintain or upgrade legacy systems. With support for Dual Channel DDR3 1333(OC) memory and Intel® Graphics Media Accelerator X4500, it provides a stable foundation for office work, home computing, and light multimedia tasks.
Key Features
- LGA 775 CPU Support: Compatible with Intel® Core™ 2 Extreme, Core™ 2 Quad, Core™ 2 Duo, Pentium® Dual Core, and Celeron® Dual Core processors.
- Dual Channel DDR3: Supports up to 8GB of DDR3 1333(OC) memory, providing better bandwidth over older DDR2 standards.
- Intel® GMA X4500: Integrated graphics with DirectX 10 support and a maximum shared memory of 1759MB.
- ASRock OC DNA & OC Tuner: Exclusive software tools that allow for easy overclocking and sharing of settings with friends.
- Instant Boot: ASRock’s unique technology that allows you to power up your PC and enter Windows® in just a few seconds.
- ErP/EuP Ready: Environmentally friendly design that ensures low power consumption during standby.
Technical Specifications
| Category | Specifications |
|---|---|
| CPU Socket | LGA 775 (Supports FSB 1333/1066/800/533 MHz) |
| Chipset | Intel® G41 + Intel® ICH7 |
| Memory | 2 x DDR3 DIMM Slots (Max. 8GB, 1333(OC)/1066/800 MHz) |
| Graphics | Integrated Intel® Graphics Media Accelerator X4500 (D-Sub/VGA) |
| Expansion Slots | 1 x PCIe x16, 1 x PCI Slot |
| Storage | 2 x SATA2 3.0 Gb/s Connectors |
| Audio / LAN | 5.1 CH HD Audio (VIA® VT1705), 10/100 Ethernet |
| Form Factor | Micro ATX (8.9-in x 6.7-in) |
