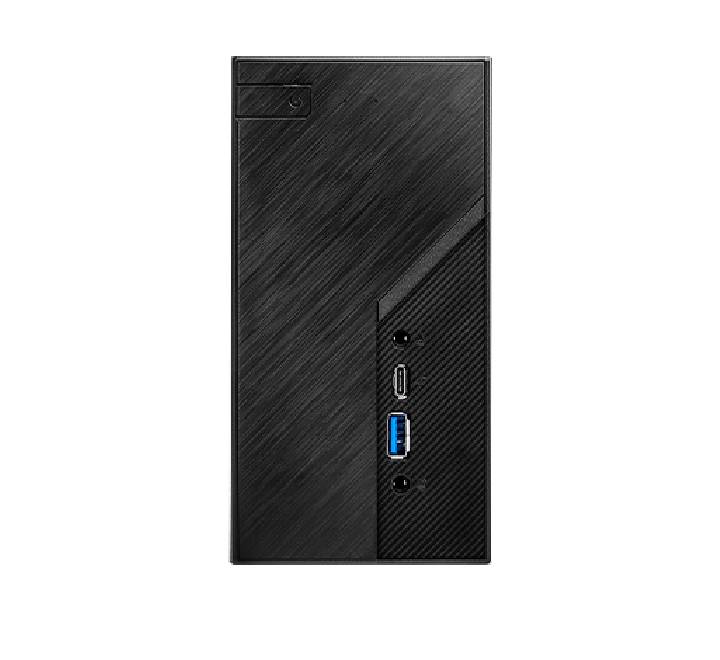

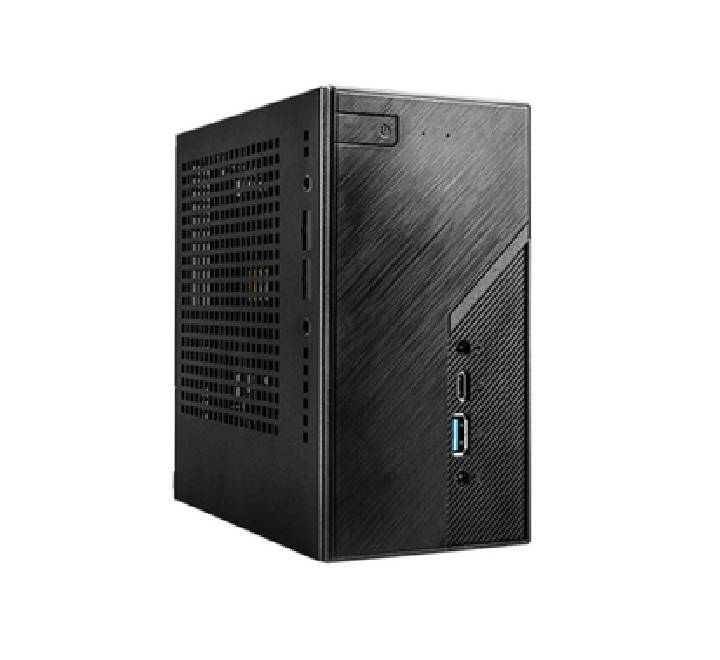

Experience the ultimate space-saving desktop performance with the ASRock DeskMini X300 Mini PC Barebone (Asia Box Edition), available now at the best retail price in Myanmar. Measuring at an ultra-compact 1.92 liters, this miniature powerhouse natively supports AMD Socket AM4 processors (Ryzen 2000, 3000, 4000, and 5000 series APUs up to 65W) featuring built-in Radeon™ graphics. Perfect for minimalist home offices, digital signage, retail POS terminals, or student study desks in Yangon and Mandalay, the DeskMini X300 delivers full desktop responsiveness in a chassis small enough to fit in a backpack.
Key Features & Product Benefits
- Hyper-Compact 1.92L Size: A fraction of the size of a traditional tower PC, making it incredibly portable and clean on any workspace or TV console.
- AMD AM4 APU Support: Supports high-efficiency AMD AM4 Renoir, Picasso, and Cezanne chips (up to 65W) with powerful integrated Radeon™ graphics for casual gaming and 4K video playback.
- Dual-Channel DDR4 Speed: Features 2 x DDR4 SO-DIMM slots supporting up to 64GB of RAM at overclocked frequencies up to 3200+ MHz.
- Triple Display Support: Equipped with HDMI, DisplayPort, and D-Sub (VGA) outputs simultaneously, allowing you to connect up to three independent monitors for maximum multitasking.
- Dual Ultra M.2 NVMe Slots: Accommodates 2 x high-speed Ultra M.2 PCIe Gen3 x4 storage drives alongside 2 x 2.5-inch SATA3 hard drive/SSD bays for extensive storage flexibility.
- Customized Overclocking Options: The proprietary X300 motherboard chipset allows fine-tuning of CPU/GPU core clocks and memory timings to squeeze out maximum hardware efficiency.
Why Purchase the ASRock DeskMini X300 from ICT.com.mm?
Skip the hassle of untrusted parallel imports. We provide 100% genuine ASRock DeskMini X300 Box units backed by official local distributor warranty protection. Our team offers secure, fast delivery options direct to your doorstep across Yangon, Mandalay, Naypyitaw, and nationwide. Need help completing your build? Contact our live chat support for fully assembled bundles including compatible AMD Ryzen APUs, laptop-style DDR4 RAM, and blazing-fast NVMe storage solutions!
Official Technical Specifications
| Component / Parameter | Official ASRock Factory Specifications |
|---|---|
| Processor & Chipset | |
| CPU Support | AMD Socket AM4 Processors (Ryzen 2000, 3000, 4000, and 5000 series APUs, Max TDP 65W) |
| Chipset | AMD X300 Architecture Platform |
| Cooler Limitation | Maximum height clearance ≦ 46 mm (Includes specialized AMD low-profile CPU cooler inside box) |
| Memory Profiles | |
| Memory Slots | 2 x DDR4 SO-DIMM slots (Laptop style, Dual Channel Architecture) |
| Max Speed & Capacity | Supports up to 64GB total capacity. Intel XMP and speeds up to DDR4-3200MHz+ (dependent on CPU family) |
| Graphics & Audio | |
| Graphics Engine | Integrated AMD Radeon™ Vega Series Graphics (Requires APU processor with display silicon) |
| Multi-Display Outputs | 1 x HDMI (4K @ 60Hz), 1 x DisplayPort (4K @ 60Hz), 1 x D-Sub (VGA) - Supports 3 displays simultaneously |
| Audio Codec | Realtek ALC233 High Definition Audio Controller |
| Storage Interfaces | |
| M.2 Storage Slots | 2 x Ultra M.2 Type 2280 PCIe Gen3 x4 slots (Provides up to 32 Gb/s data speeds) |
| SATA Storage Bays | 2 x 2.5" SATA3 6.0 Gb/s Solid State Drives or Hard Drives (RAID 0/1 support) |
| Connectivity & Power | |
| LAN Wired Network | Realtek RTL8111H Gigabit Ethernet Controller (10/100/1000 Mb/s) |
| Wi-Fi Expansion Slot | 1 x M.2 Slot (Key E 2230) for dedicated wireless network/Bluetooth module upgrade |
| Front Connectivity Ports | 1 x Headphone Jack, 1 x Mic-In, 1 x USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen1 Type-A |
| Rear Connectivity Ports | 1 x DC-In Power Jack, 1 x D-Sub (VGA), 1 x HDMI, 1 x DisplayPort, 1 x USB 3.2 Gen1 Type-A, 1 x USB 2.0 Type-A, 1 x RJ-45 LAN port |
| Power Adapter Unit | External 120W / 19V Power Adapter Brick |
| Dimensions & Case Volume | 155 x 155 x 80 mm | Super-small 1.92 Liters Chassis Footprint |
Frequently Asked Questions (FAQ)
Can I install a separate desktop graphics card in the DeskMini X300?
No. The ASRock DeskMini X300 is designed for ultra-portability and lacks a standard PCIe x16 expansion slot. To output video, you must install an AMD AM4 APU processor that contains integrated graphics (such as the AMD Ryzen 5 5600G or Ryzen 7 5700G).
What type of RAM modules does the DeskMini X300 use?
Unlike standard desktop towers, the tiny X300 motherboard utilizes laptop-style DDR4 SO-DIMM memory modules instead of standard long desktop DIMM sticks.
Is a CPU cooler included inside the retail packaging?
Yes. The Asia Box edition of the DeskMini X300 includes a specialized, low-profile AMD CPU fan cooler tailored specifically to fit within the strict 46mm chassis height limit.
