Description

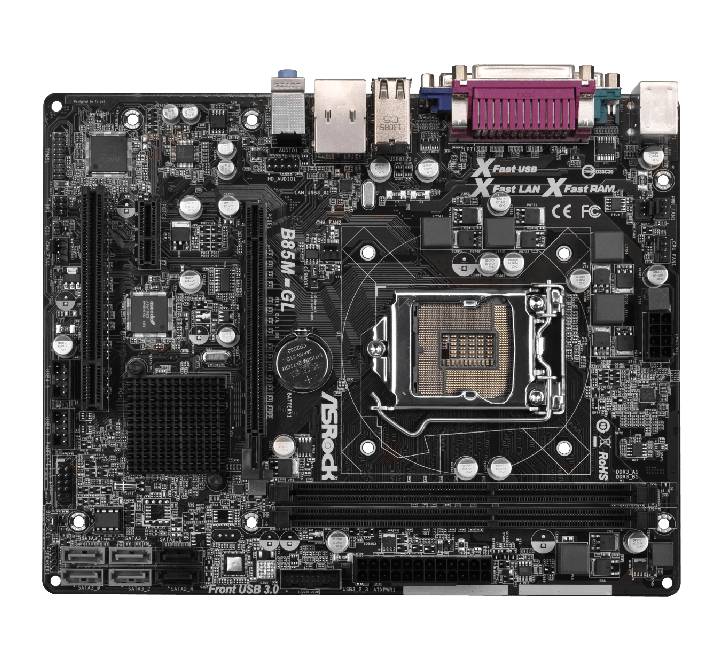

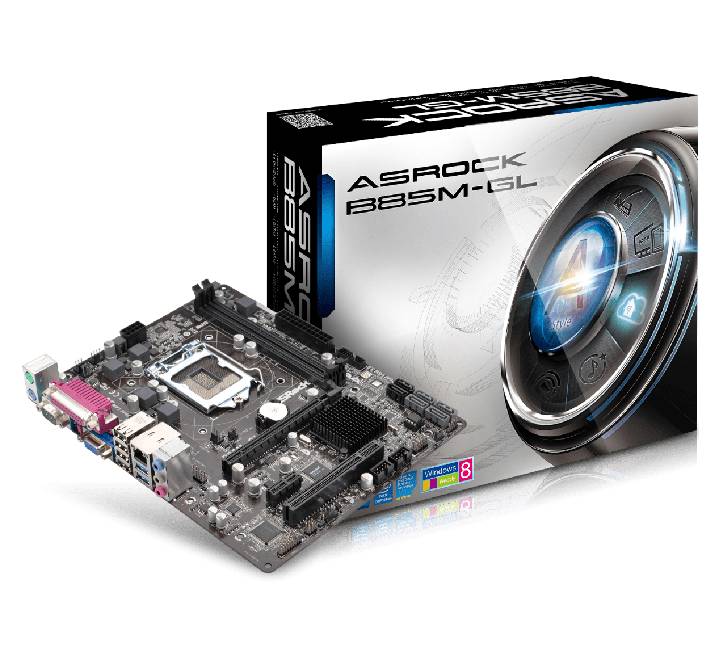

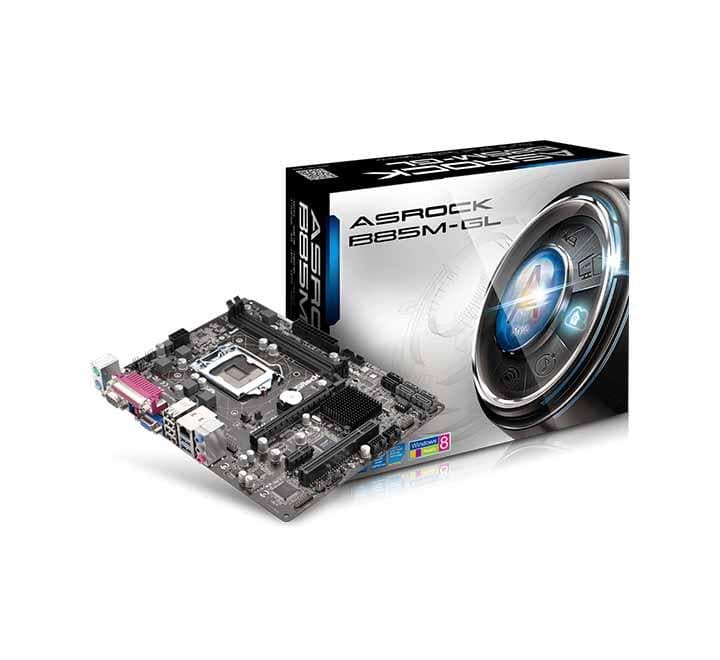

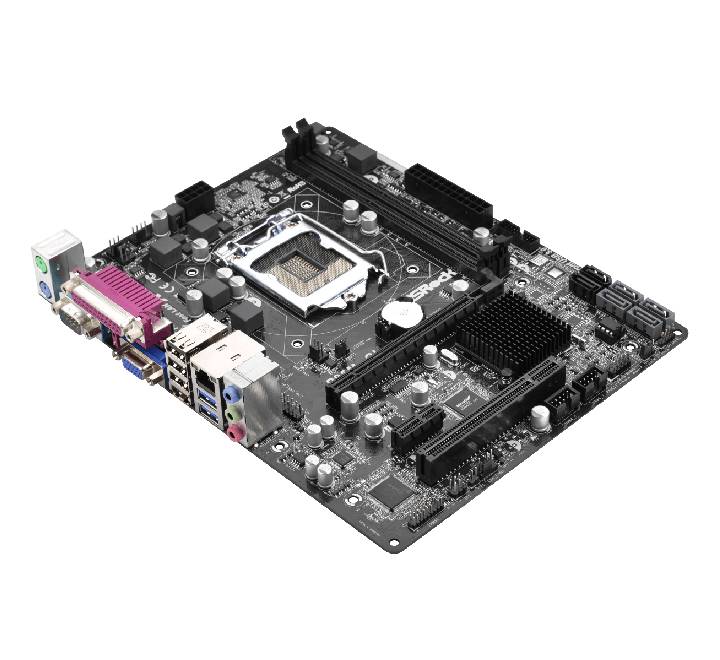

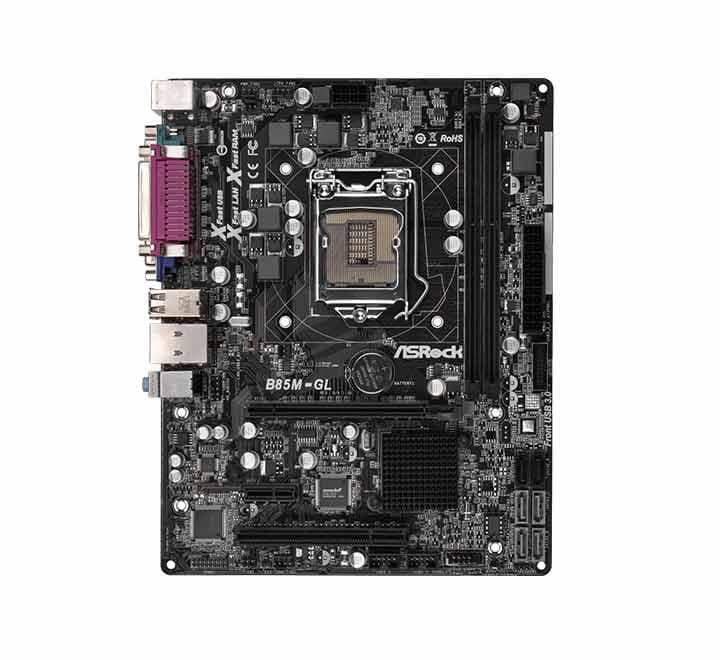

The ASRock B85M-GL is a durable and efficient Micro ATX motherboard built on the Intel® B85 chipset, specifically designed to support 4th Generation Intel® Core™ processors (LGA 1150). Engineered for stability and longevity, this board features an "All Solid Capacitor" design and high-density glass fabric PCB, making it a reliable foundation for business desktops and home office workstations.
Key Features
- All Solid Capacitor Design: Ensures a longer lifespan and more stable performance under varying temperatures.
- High Density Glass Fabric PCB: Reduces the gaps between PCB layers to protect the motherboard against electrical shorts caused by humidity.
- Gigabit LAN: High-speed internet connectivity for seamless data transfer and online productivity.
- Full Spike Protection: Includes ASRock’s unique technology to shield your components from sudden voltage surges.
- A-Tuning: A comprehensive software suite that allows for easy hardware monitoring, fan control, and system tuning.
- Intel® Small Business Advantage 2.0: Hardware-based security and productivity solution designed for small businesses without a managed IT environment.
Technical Specifications
| Category | Specifications |
|---|---|
| CPU Socket | LGA 1150 (Supports 4th Gen Intel® Core™ i7 / i5 / i3 / Xeon®) |
| Chipset | Intel® B85 |
| Memory | 2 x DDR3 DIMM Slots (Max. 16GB, 1600/1333/1066 MHz) |
| Graphics Output | D-Sub (VGA) - Supports Max. resolution 1920x1200 @ 60Hz |
| Expansion Slots | 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x1 |
| Storage | 4 x SATA3 6.0 Gb/s, 2 x SATA2 3.0 Gb/s |
| USB Ports | 2 x USB 3.1 Gen1 (Rear), 8 x USB 2.0 (4 Rear, 4 Front) |
| Form Factor | Micro ATX (8.9-in x 6.7-in) |
