Description

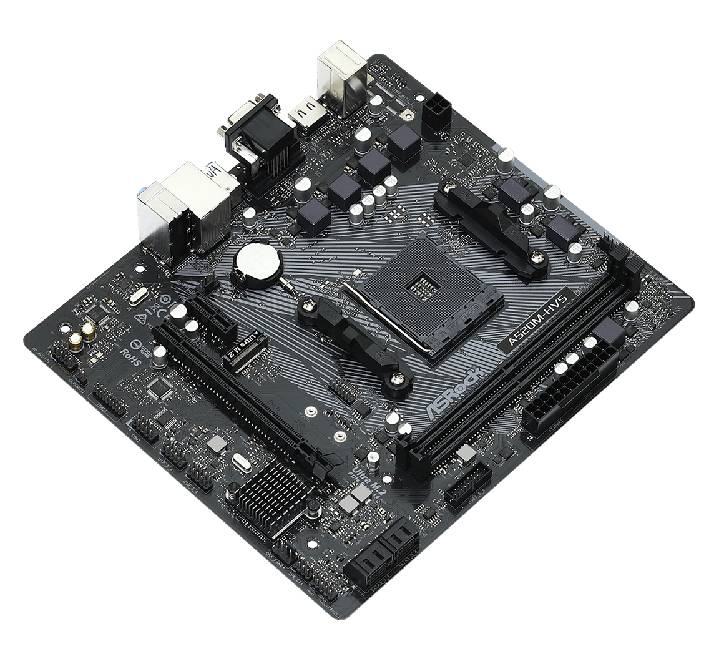

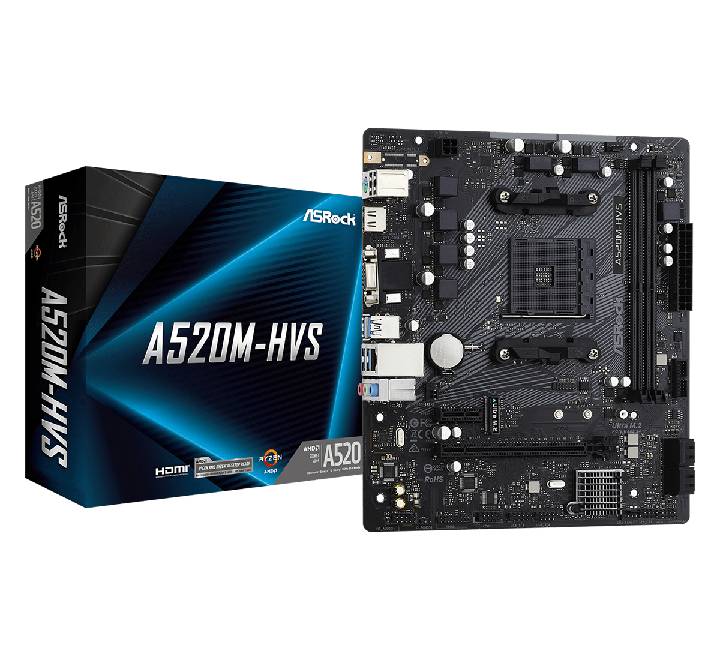

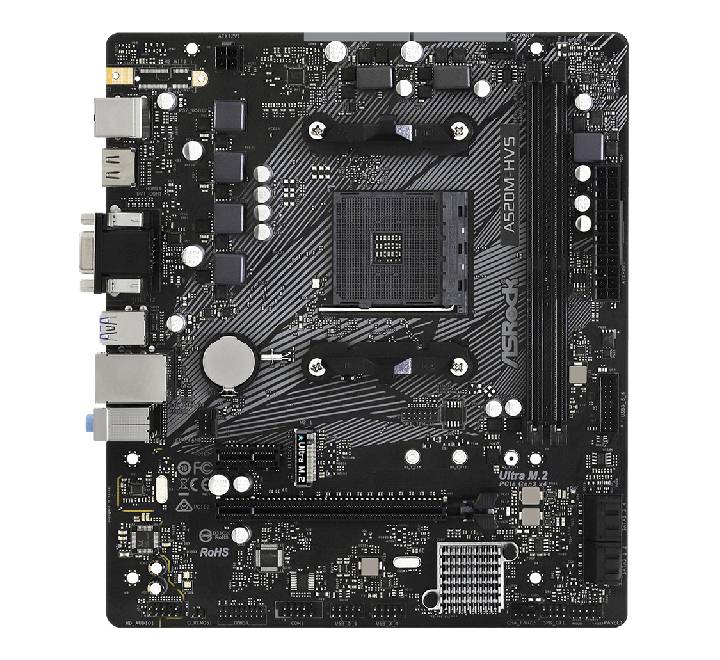

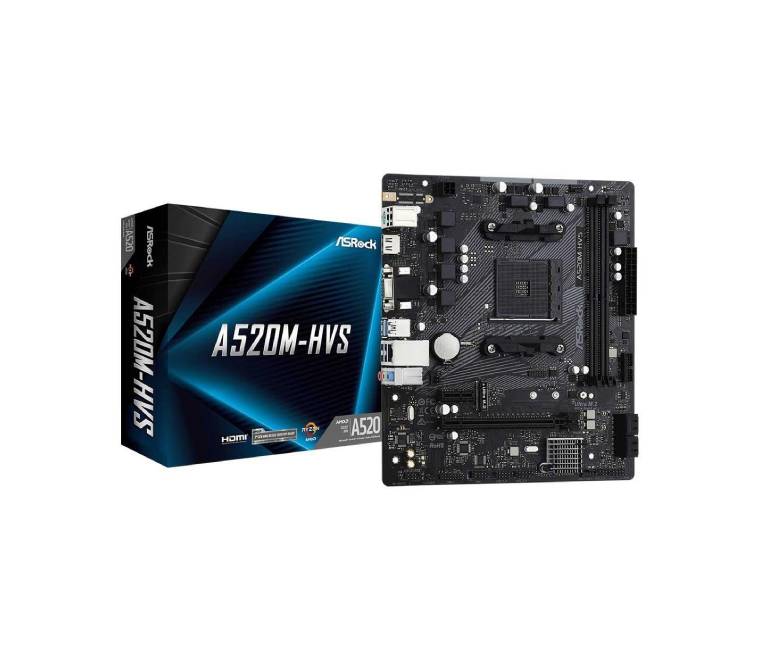

The ASRock A520M-HVS is a reliable, high-performance Micro ATX motherboard designed to support the latest AMD Ryzen™ 3000, 4000 G-Series, and 5000 Series desktop processors. Built with the AMD A520 chipset, it offers essential features for a modern build, including ultra-fast storage support and high-definition 4K video output, making it an ideal choice for budget gaming and productivity PCs.
Key Features
- 6 Phase Power Design: Features sturdy components and completely smooth power delivery to the CPU for enhanced performance.
- Premium 50A Power Chokes: Provides improved Vcore voltage to the motherboard, making the saturation current up to three times better than traditional chokes.
- Ultra M.2 (PCIe Gen3 x4): Delivers data transfer speeds up to 32Gb/s and supports SATA3 6Gb/s M.2 modules.
- HDMI 4K @60Hz: Supports the latest HDMI 4K 60Hz graphics output for fluid, high-resolution visuals.
- Full Spike Protection: Includes ASRock Full Spike Protection to prevent your motherboard’s components from being damaged by unexpected voltage spikes.
- Sapphire Black PCB: A solid black PCB appearance that gives the motherboard a sleek, mysterious touch and superior quality.
ASRock A520 Series Overview
Technical Specifications
| Category | Specifications |
|---|---|
| CPU Socket | AMD AM4 Socket (Ryzen 3000, 4000 G-Series, 5000, and 5000 G-Series) |
| Chipset | AMD A520 |
| Memory | 2 x DDR4 DIMM Slots (Up to 64GB, 4733+(OC) MHz) |
| Graphics Output | HDMI 2.1 (4K @60Hz), D-Sub |
| Expansion Slots | 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 |
| Storage | 4 x SATA3 6.0 Gb/s, 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3) |
| USB Ports | 6 x USB 3.2 Gen1 (4 Rear, 2 Front), 6 x USB 2.0 |
| Audio / LAN | 7.1 CH HD Audio (Realtek ALC887/897), Realtek Gigabit LAN |
| Form Factor | Micro ATX (9.0-in x 7.9-in) |
