Description
Premium Wi-Fi 6 Connectivity and Multi-Port Switching Purpose-Built for Hospitality, Remote Work, and Micro-Branches

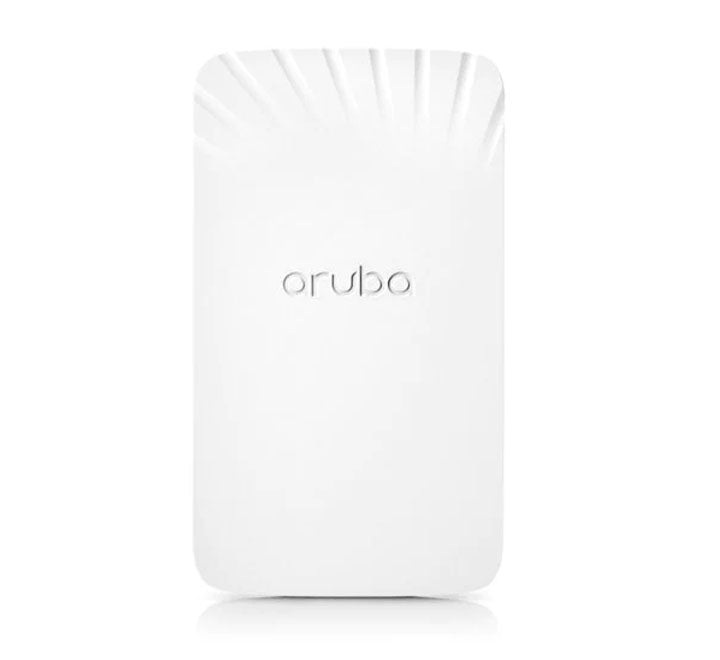

Deliver enterprise-grade wireless speeds alongside hardwired local switching in one sleek, wall-mountable profile. The Aruba AP-505H RW Wi-Fi 6 Remote Access Point (R3V46A) is a multi-functional, unified hospitality access point engineered to meet modern, high-density device demands. Perfect for premium hotel rooms, clinic exam spaces, student dormitories, and home-based executive offices, this dual-radio 802.11ax access point maximizes spatial efficiency. It functions simultaneously as an advanced Wi-Fi router, an integrated 4-port Gigabit Ethernet switch featuring PoE out, and an IoT gateway to manage smart room components effortlessly.
Key Features & Benefits
- Blazing-Fast Wi-Fi 6 (802.11ax) Performance: Combines a maximum aggregate data rate of 1.5 Gbps (1.2 Gbps over 5GHz and 287 Mbps over 2.4GHz) with OFDMA and MU-MIMO architectures to eliminate lag in device-crowded rooms.
- Integrated 4-Port Local Switching Array: Built-in base switch features 4 downstream Gigabit RJ-45 ports to plug in hardwired local assets like smart IPTVs, VoIP desk phones, or printing hubs without adding a second desk switch.
- Convenient PoE Downstream Output: Port E1 is engineered with PoE out (Power over Ethernet) capability, letting you route power directly into downstream peripherals like IP phones, cutting out external wall-wart power adapters.
- Unified IoT-Ready Radio Framework: Native Bluetooth Low Energy (BLE 5.0) and Zigbee radios are built straight into the core chassis, simplifying the layout of proximity sensors, asset trackers, and automated hospitality smart-locks.
- Aruba ClientMatch Optimization: Continually groups roaming mobile clients onto the single best-performing radio band and nearby access point, preventing "sticky clients" from reducing overall channel performance.
- Versatile Deployment Flexibilities: Can be set up as a controllerless Instant AP cluster managed locally, a cloud-coordinated element via Aruba Central, or a secure remote workplace micro-branch endpoint.
Technical Specifications
| Hardware Category | Detailed Engineering Specifications |
|---|---|
| Manufacturer SKU / ID | R3V46A (Aruba AP-505H Rest-of-World Variant) |
| Wireless Standard | Wi-Fi 6 (802.11ax) | Dual-Radio 2x2 MIMO architecture |
| Maximum Data Rates | 5 GHz Band: Up to 1.2 Gbps | 2.4 GHz Band: Up to 287 Mbps |
| Physical Uplink Ports | 1 x 10/100/1000BASE-T RJ-45 (Back) + 1 x Smart Rate 2.5G alternative uplink interface (Bottom) |
| Physical Downlink Ports | 4 x 10/100/1000BASE-T RJ-45 local ports (Port E1 configured with IEEE 802.3af PoE Out capability) |
| Antenna Architecture | Integrated directional smart antennas with peak gains of 5.2 dBi (5GHz) and 4.3 dBi (2.4GHz) |
| Power Sourcing Inputs | Supports Power over Ethernet (PoE 802.3af/at standard via uplink) or External 12V DC Adapter (sold separately) |
| IoT Radio Options | Integrated Bluetooth 5.0 Low Energy (BLE) + Zigbee (802.15.4 infrastructure) |
| Maximum Power Draw | 14W typical (excluding local downstream PoE output demands) |
| Mounting Profiling | Fits standard single-gang electrical wall box (alternative desk-stand kit option supported) |
| Physical Dimensions | 15.0 x 8.6 x 4.0 cm (5.9 x 3.4 x 1.6 inches) |
| Net Hardware Weight | 360 g (0.80 lbs) |
