Description
Reliable High-Density Power Protection: APC Smart-UPS SRT 6kVA 230V
Protect your mission-critical infrastructure, servers, and data networks from downtime and power fluctuations with the APC Smart-UPS SRT 6kVA / 6kW (230V) Online UPS. Engineered with high-density, true double-conversion on-line power protection, this 4U rackmount unit delivers pure sine wave output with zero transfer time, making it ideal for sensitive electronic equipment, medical labs, and enterprise server rooms.
Key Features
- True Double-Conversion Online Topology: Isolates connected equipment from all forms of power corruption by continuously converting AC power to DC and back to AC.
- Zero Transfer Time: Operates seamlessly with zero transfer time to battery power during outages, keeping sensitive loads continuously running.
- Pre-Installed Network Management Card: Includes an integrated Web/SNMP management card for remote monitoring, management, and automated shutdown scripts over your network.
- Comprehensive Outlet Configuration: Equipped with hard-wire input/output along with multiple IEC C13 and IEC C19 outlets to accommodate diverse high-draw rack hardware.

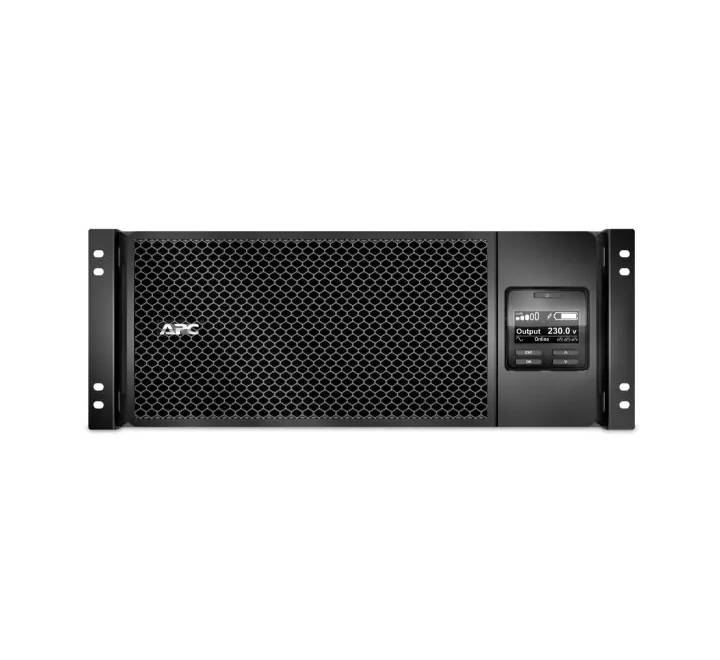

- Intuitive Graphical LCD Display: Multicolor backlight interface provides precise text and mimic diagrams to check system parameters, load levels, and diagnostics locally.
- Complete Rackmount Hardware Included: Comes standard with 4U rack mounting brackets and stable support rail kits for effortless server cabinet installation.
Technical Specifications
| Manufacturer / Model | APC Smart-UPS SRT 6kVA (SRT6KRMXLI) |
| Power Capacity (Watts / VA) | 6.0 kW / 6.0 kVA |
| Topology | Double Conversion Online (Pure Sine Wave) |
| Nominal Input / Output Voltage | 230V (Supports 220V, 240V) |
| Input Connections | Hard Wire 3-wire (1PH + N + G) |

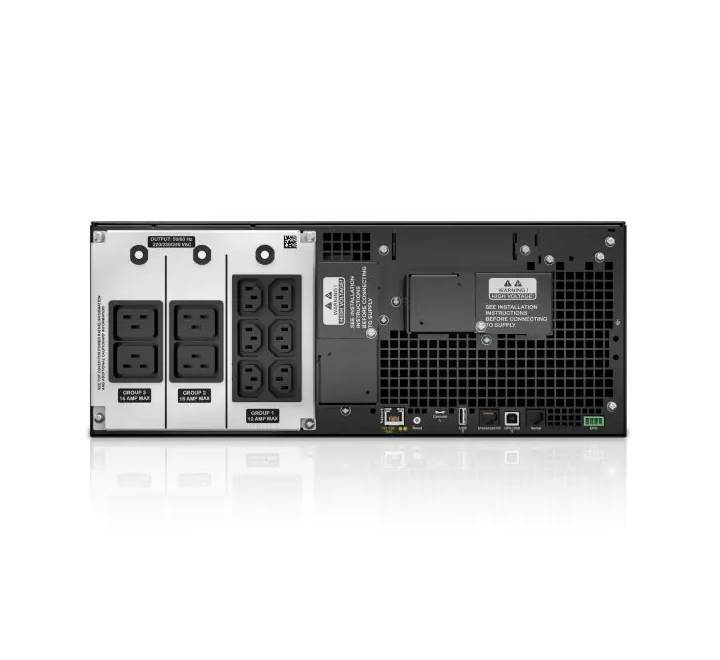

| Output Connections | Hard Wire 3-wire, 6x IEC 320 C13, 4x IEC 320 C19, 2x IEC Jumpers |
| Rack Height | 4U (Rack/Tower Convertible) |
| Battery Type | Maintenance-free Sealed Lead-Acid (Leakproof) |
| Battery Voltage & Replacement | 192V (Compatible Replacement: APCRBC140) |
| Management & Interfaces | Pre-installed Network Management Card, SmartSlot, USB, Serial |
| Physical Dimensions (H x W x D) | 17.4 x 43.2 x 71.94 cm |
| Net Weight | 60.0 kg |
| Included Accessories | Rail Kit, Brackets, Network Card, Temperature Probe, USB Cable, Manuals |
