Description

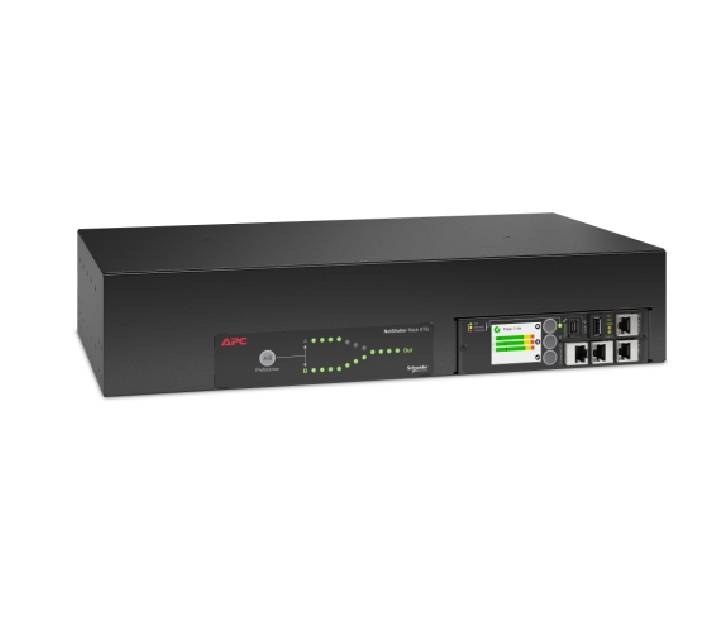

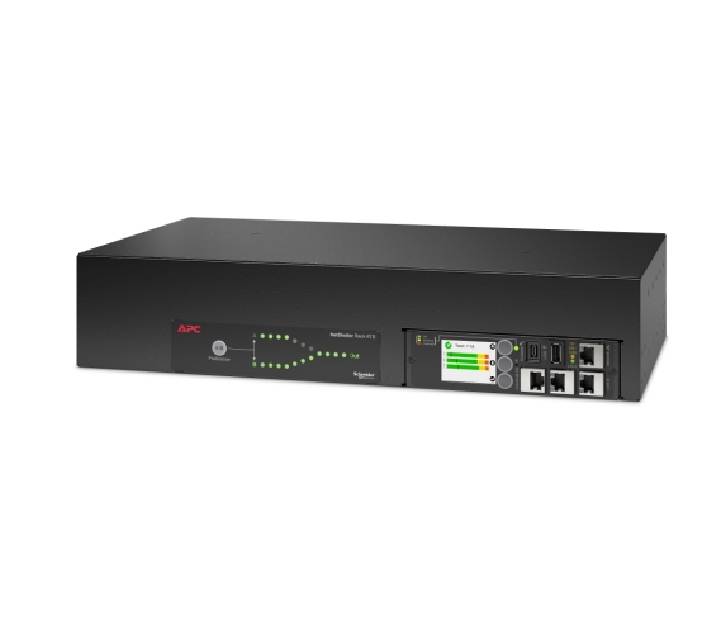

Ensure maximum uptime and redundant power distribution for your mission-critical, single-corded IT equipment with the APC NetShelter Rack Automatic Transfer Switch (AP4424A). Designed for high-density environments, this 2U rack-mountable ATS draws power from two independent sources and seamlessly switches between them without interrupting active network operations.
Key Features
- Reliable Redundant Power: Supplies dual-input power (Primary and Secondary sources) to network switches, servers, and devices with single power cords.
- Lightning-Fast Transfer Time: Rapidly switches power sources within industry-standard tolerances to prevent connected IT loads from dropping or rebooting.
- Advanced Remote Management: Built-in Network Management Card integration allows for comprehensive web, SNMP, CLI, and EcoStruxure IT monitoring and configuration.

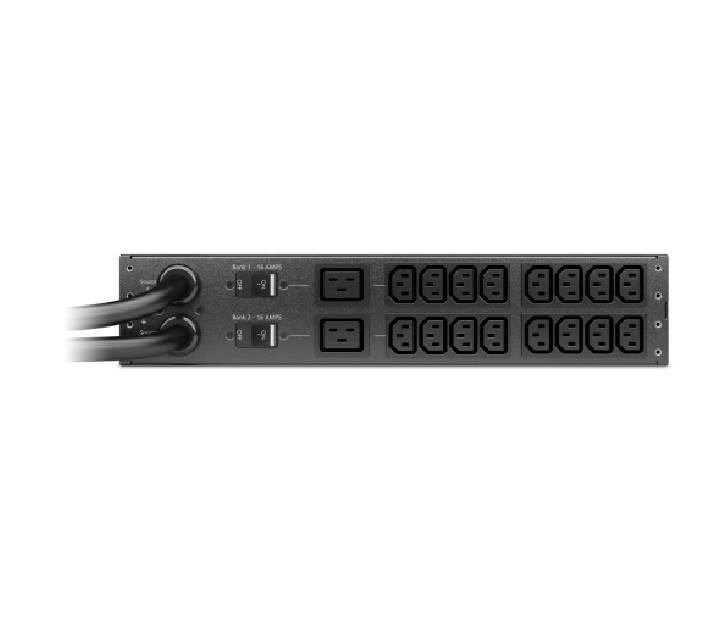

- Versatile Output Configuration: Equipped with multiple high-density IEC outlets (16 x C13 and 2 x C19) to accommodate diverse server hardware demands.
- Space-Saving 2U Form Factor: Designed to mount efficiently horizontally inside standard 19-inch server racks and cabinets.
Product Overview & Demonstration
Watch the official overview and feature highlights of the APC NetShelter Rack ATS series:
Technical Specifications
| Feature | Specification |
|---|---|
| Product Type | Rack Automatic Transfer Switch (ATS) |
| Part Number / Model | AP4424A |
| Rack Height | 2U |
| Nominal Input Voltage | 230V |
| Input Voltage Range | 207V – 253V AC |
| Max Current / Rating | 32A |
| Load Capacity | 7400 VA |
| Input Frequency | 50/60 Hz |
| Input Connections | 2 x IEC 60309 32A (2P + E) |
| Output Connections | 16 x IEC 60320 C13, 2 x IEC 60320 C19 (Total: 18 Outlets) |
| Nominal Output Voltage | 230V |
| Management Protocols | HTTP, HTTPS, SNMP, CLI, EcoStruxure IT Compatible |
