Description

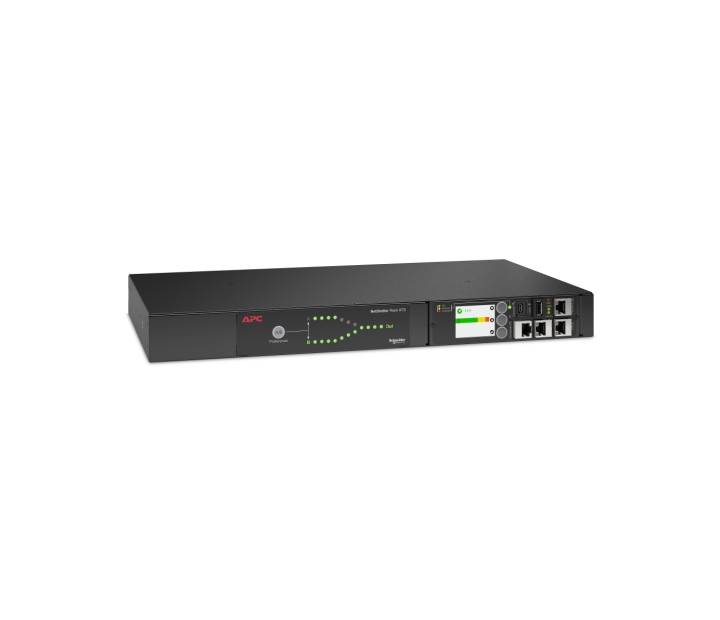

Deliver redundant power to single-corded IT equipment and safeguard your high-availability data center operations with the APC NetShelter Rack Automatic Transfer Switch (AP4423A). Engineered by Schneider Electric, this intelligent 1U rack-mount ATS provides seamless power switching between two independent AC power sources, protecting your sensitive servers, switches, and network loads from downtime. Featuring rapid transfer times and advanced web management capabilities, it bridges the gap between resilience and intelligent power distribution.
Key Features & Highlights
- Seamless Power Switching: Ultra-fast transfer time (typically under 10ms) ensures connected single-corded loads experience zero dropouts or disruption during source switches.
- Dual Input Power Cords: Equipped with dual IEC C20 inputs (230V, 16A) connected to separate primary and secondary power sources to maximize uptime.

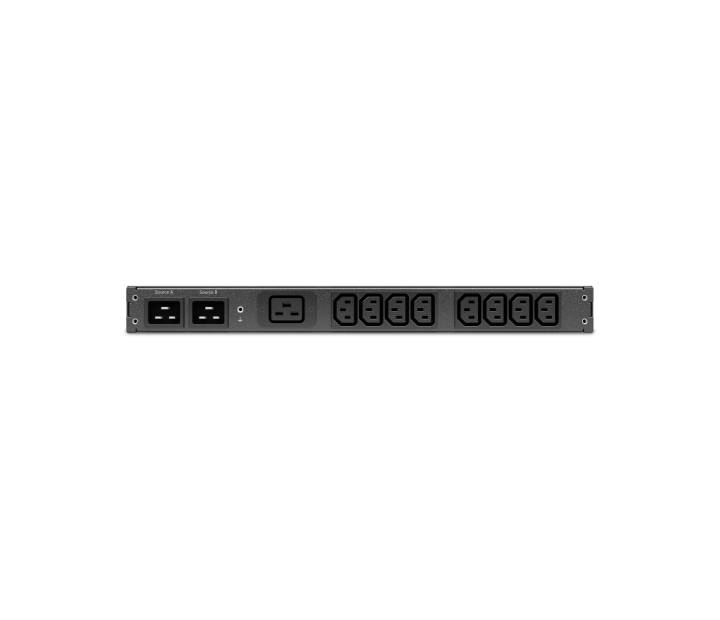

- Versatile Output Configuration: Features 8 x IEC C13 outlets and 1 x IEC C19 outlet to flexibly accommodate varied enterprise IT hardware plugs.
- Advanced Network Management (NMC3): Includes a field-replaceable Network Management Card allowing secure remote monitoring, threshold alerts, and management via Web UI, SNMP, or CLI.
- EcoStruxure IT Compatibility: Integrates smoothly with Schneider Electric’s centralized management platforms for enhanced data center visibility.
Technical Specifications
| Specification Feature | Details |
|---|---|
| Manufacturer / Model | Schneider Electric / APC AP4423A |
| Rack Height | 1U |
| Rated Current & Voltage | 16A, 230V |
| Load Capacity | 3700 VA |
| Input Connections | 2 x IEC 60320 C20 |
| Output Connections | 8 x IEC 60320 C13, 1 x IEC 60320 C19 |
| Nominal Frequency | 50/60 Hz |
| Transfer Time | <10 ms typical |
Product Overview & Official Demonstration
Learn more about the architecture and smart management features of the APC NetShelter Rack ATS Fifth-Generation series in the official video below:
