Description

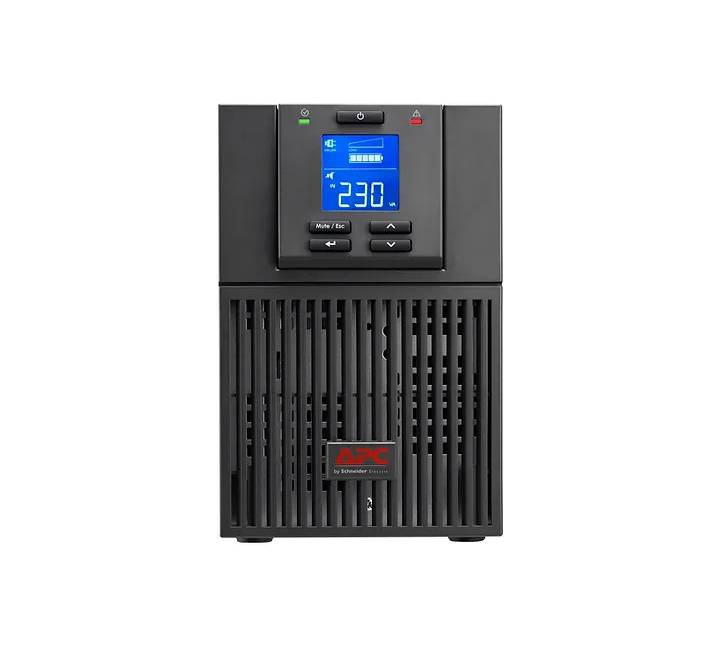

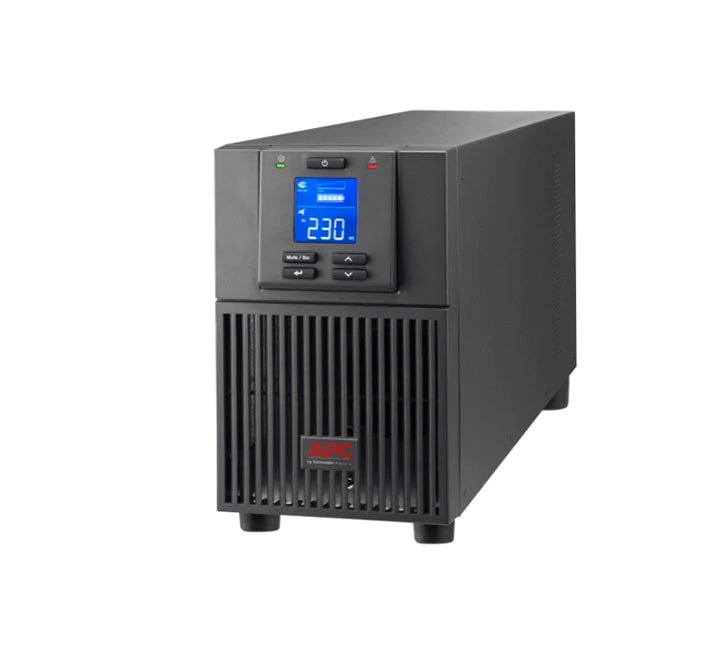

The APC Easy UPS Online SRV 1000VA 230V (SRV1KI) is a high-quality, double-conversion on-line uninterruptible power supply designed for essential power protection needs even in the most unstable power conditions. Delivering clean, pure sine wave power, it safeguards critical electronics, small data centers, servers, medical equipment, and network infrastructure from blackouts, voltage fluctuations, and surges.
Key Features
- Double-Conversion Online Topology: Isolates connected equipment from power problems by providing continuously regulated, high-quality power.
- Pure Sine Wave Output: Emulates utility power to deliver optimal compatibility for sensitive electronics and active PFC servers.
- High Power Capacity: Delivers 1000VA / 800W of reliable backup power capacity.
- Intuitive LCD Management Display: Offers clear status updates, parameters, and configuration options through a multi-function interface.
- ECO Mode Operation: Operates with high efficiency by bypassing unused electrical components during good power conditions without compromising protection.
- Wide Input Voltage Range: Engineered to withstand harsh electrical environments and extend battery life.
- Built-In Communication Ports: Features USB and serial connectivity options alongside an intelligent slot for optional management cards.
Technical Specifications
| Specification Feature | Details |
|---|---|
| Product Code (SKU) | SRV1KI |
| Topology | Double Conversion Online |
| Output Power Capacity | 1.0 kVA / 800 Watts |
| Nominal Output / Input Voltage | 230V (Configurable for 220V, 230V, or 240V) |

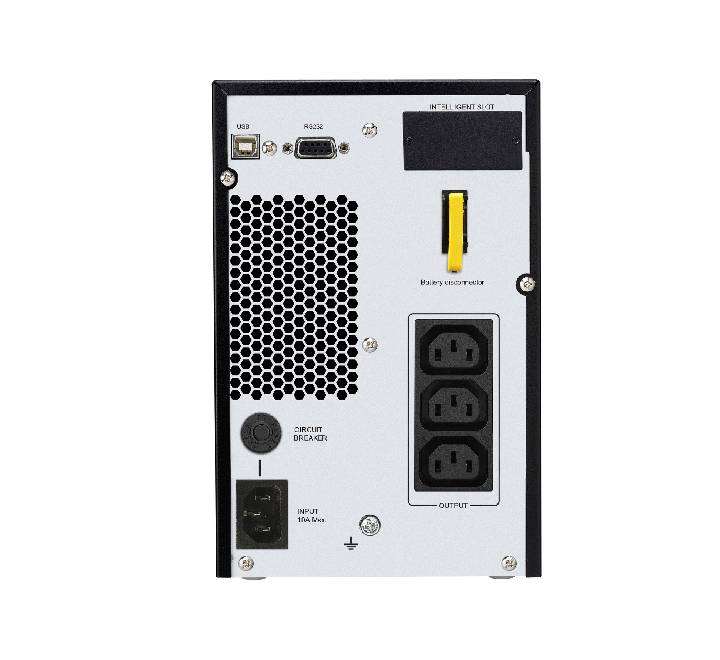

| Output Connections | (3) IEC 60320 C13 Outlets |
| Input Connection | IEC 60320 C14 |
| Waveform Type | Pure Sine Wave |
| Battery Type | Lead-acid battery (Internal, maintenance-free) |
| Control Panel | Multi-function LCD status and control console |
| Interface Ports | Serial, USB, and 1 Intelligent Expansion Slot |
| Dimensions (H x W x D) | 223 mm x 145 mm x 288 mm |
| Net Weight | Approx. 9.3 kg |
