Description

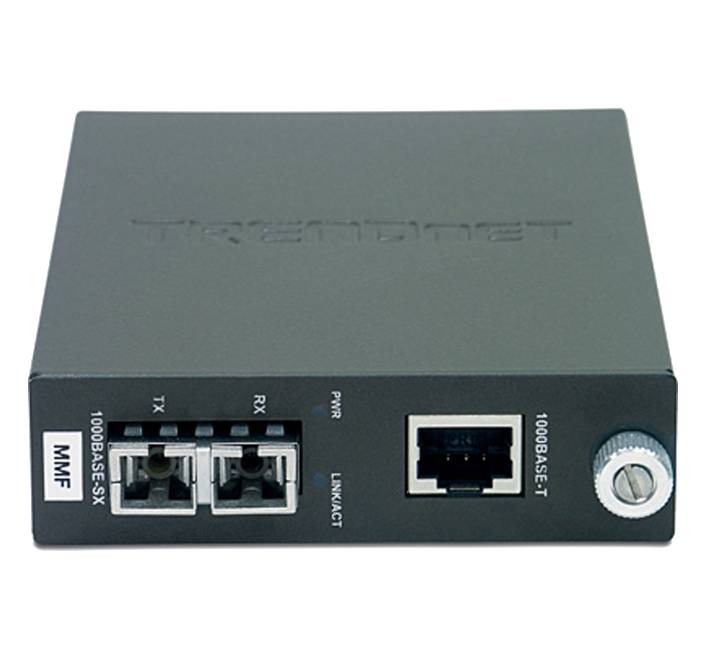

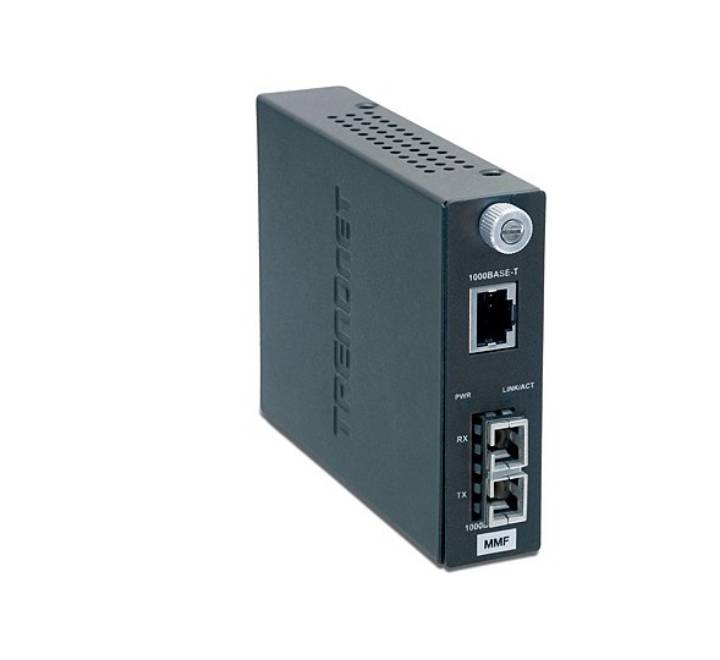

TRENDnet Intelligent 1000Base-T to 1000Base-SX Multi-Mode SC Fiber Converter (TFC-1000MSC)
- Brand: TRENDnet
- Model: TFC-1000MSC
- 1000Base-TX to 1000Base-FX Multi Mode SC Fiber Converter
- SC-type multi-mode fiber port connects over distances of up to 550m (1800 ft.)
- 1000Base-T Gigabit copper port supports Full-Duplex mode
- Supports port level SNMP management
- Functions as a stand alone converter or with the TFC-1600 fiber chassis
- Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX standards
- 1 x 1000Base-T RJ-45 port
- 1 x 1000Base-SX multi-mode SC type fiber port
- Provides Dip switch to set: Fiber (Forced/Auto-Negotiation), LLR (Enable/Disable)
- Support LLCF (Link Loss Carry Forward, Link Pass Through)
- Support LLR (link Loss Return) for Fiber port
- Monitor and configure Ethernet or Fiber's duplex mode, LLR, and receive link down information via management module TFC-1600MM and chassis TFC-1600
- Status LED indicators for Power and Link/Activity
- Wall mountable
- Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
- Warranty: 1 Year
