Description

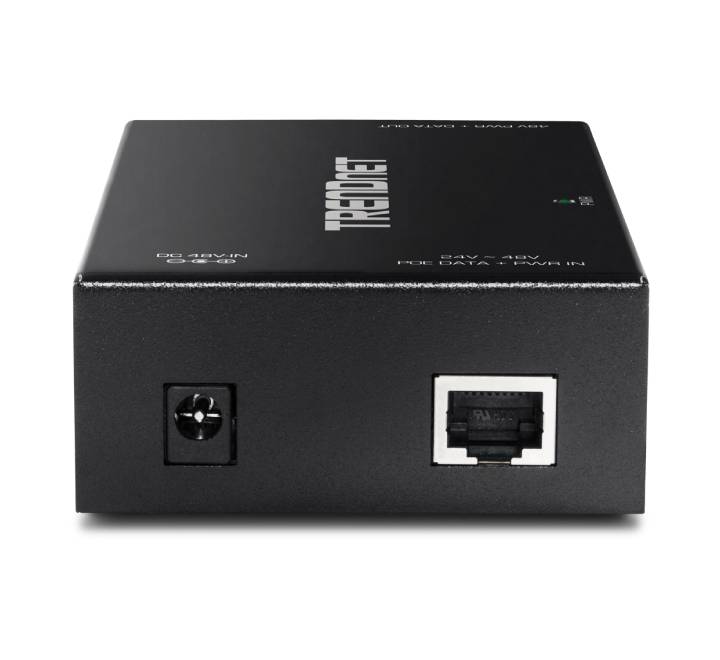

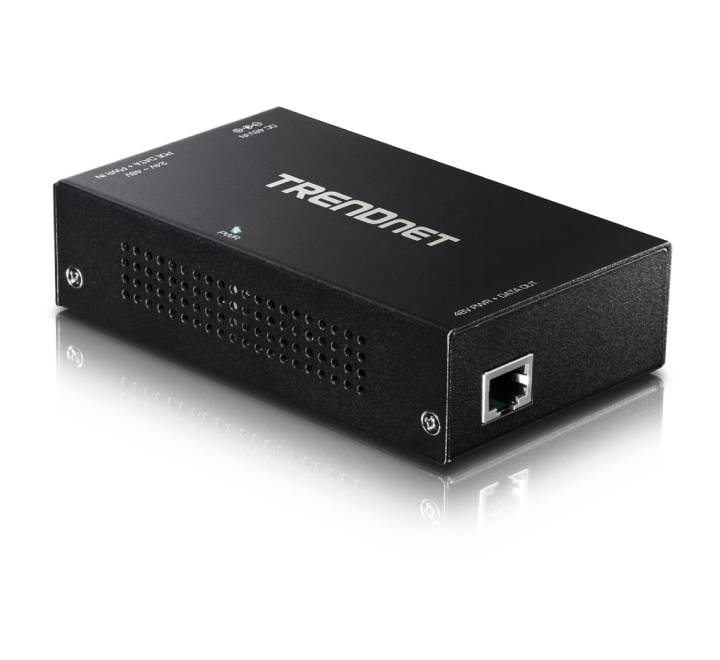

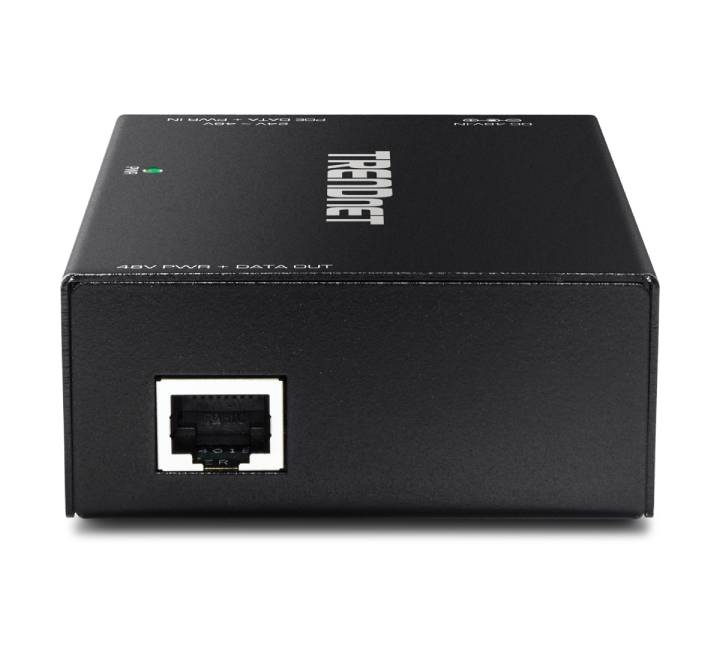

Trendnet Gigabit PoE+ Repeater/Amplifier (TPE-E110)
- Brand: TRENDnet
- Model: TPE-E110
- Extends 100 meters for a total distance of up to 200 meters (656 ft.)
- Daisy chain up to 7 units for a total PoE+ network extension of 800 m (2,600 ft.) *
- Plug and play installation
- No external power required
- Wall mountable
- Rugged metal housing
- * Optional power supply required to daisy chain more than the suggested amount of units.
- Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- Device Interface
- 1 x Gigabit PoE/PoE+ in port
- 1 x Gigabit PoE/PoE+ out port
- 1 x Power port (optional, power adapter is not included)
- LED indicators
- Installation mounting points
- Data Transfer Rate
- Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
- Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
- Gigabit: 2000 Mbps (full duplex)
- Performance
- SRAM buffer: 96 KB
- MAC Address Table: 2 K
- Maximum packet length up to 1.5 KB
- Special Features
- Extends a PoE/PoE+ network connection an additional 100 meters for a total distance of up to 200 meters (656 ft.)
- Cascade up to 7 repeaters/amplifiers*
- Suports IGMP V1, V2 and IGMP snooping
- Power
- Powered by PoE/PoE+ Device
- Consumption: 2 Watts (max.)
Overview
TRENDnet's Gigabit PoE+ Repeater/Amplifier, model TPE-E110, extends and amplifies a Gigabit PoE or PoE+ network connection to a remote location. It auto-detects a PoE (15.4 Watts) or PoE+ (30 Watts) signal and extends it an additional 100 meters for a total distance of up to 200 meters (656 ft.) from the PoE device. Daisy chain up to 7 units for a total PoE+ network extension of 800 m (2,600 ft.)*. A rugged metal enclosure and no need for an external power adapter facilitate remote installations.
